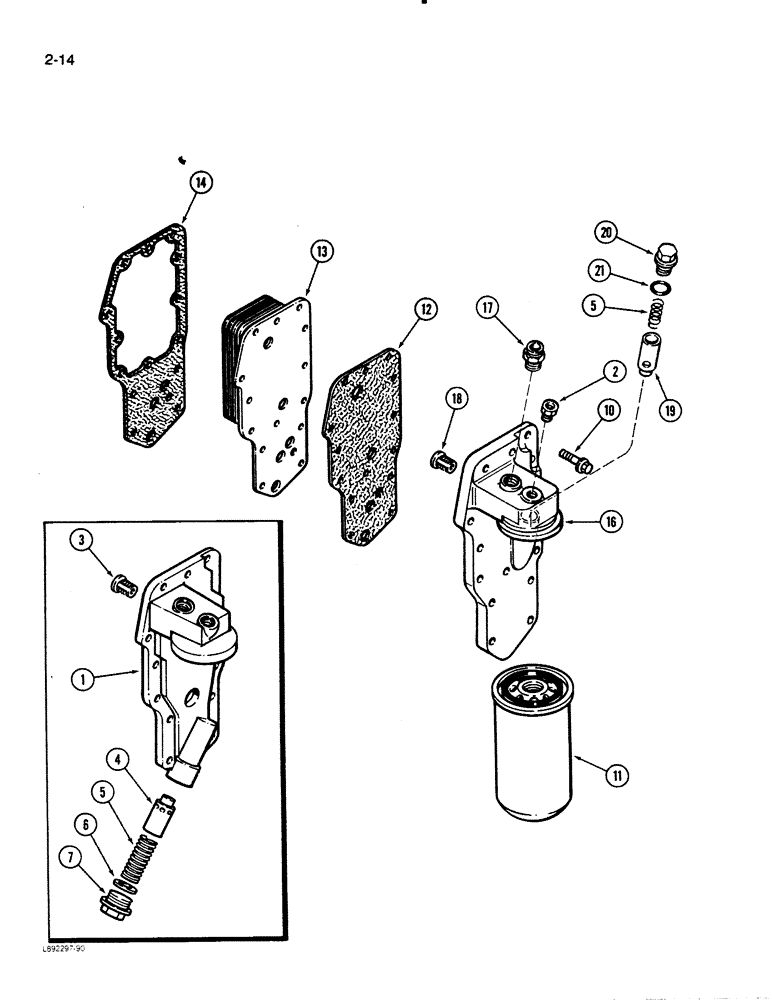

Запчасти Case 621 (2-14) - OIL FILTER AND COOLER, 6T-590 ENGINE (02) - ENGINE

1

J902295

HEAD ASSY.

HEAD - filter, lubrication oil

1шт.

Used prior to Engine Serial Number 44257900. For repairs order J915766 kit.

1шт.

2

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 PT

1шт.

3

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

4

J909376

PLUNGER

- regulator, pressure

1шт.

5

J903261

SPRING

- compression

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug

1шт.

7

J904386

PLUG

- pipe, valve

1шт.

10

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- hex flange head, 8 mm - 1.25 x 35 mm

14шт.

11

J908615

FILTER

- engine oil

1шт.

12

J918257

GASKET

- filter head (Replaces J912532)

1шт.

13

J911940

HEAT-EXCHANGER

CORE - cooler, oil

1шт.

14

J918256

GASKET

- cooler core (Replaces J914387)

1шт.

J915766

KIT

- oil cooler cover (Engine Serial Number 44257900 and after)

1шт.

16

J915243

FILTER COVER

HEAD ASSEMBLY - filter and cooler

1шт.

17

J909355

ADAPTER

- filter head

1шт.

Ref #17 - In the Artwork, this adapter should go in the underside of the head (Ref #16). The hole in the top, showing where Ref#17 goes is plugged on Non-Turbo applications with A77428 Plug, and in Turbo applications, there is Adapter J906619 for the Oil Line to the turbocharger. 04/19/96

1шт.

18

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

19

J914084

VALVE

PLUNGER - regulator, pressure

1шт.

20

J915787

PLUG

- pipe

1шт.

21

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing

1шт.
