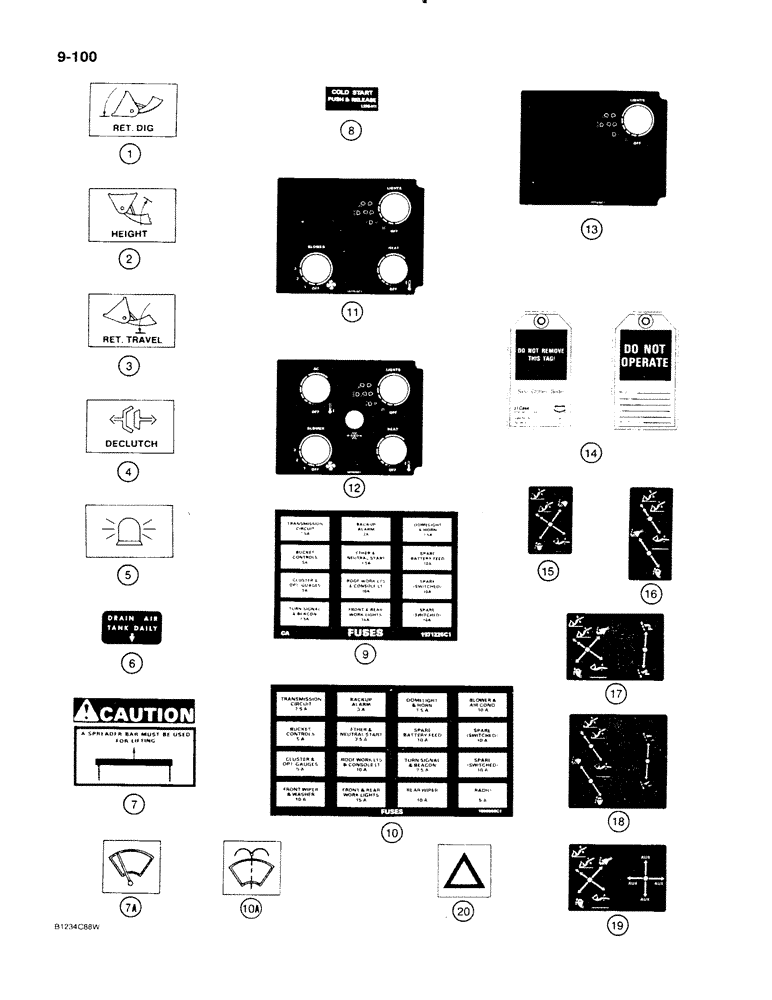

Запчасти Case 621 (9-100) - DECALS (09) - CHASSIS/ATTACHMENTS

1

A187691

IDEOGRAM

DECAL -, Serial Range: return-dig

1шт.

2

A187692

IDEOGRAM

DECAL - height control

1шт.

3

A187693

IDEOGRAM

DECAL - return to carry, bucket

1шт.

4

A187696

IDEOGRAM

DECAL - declutch selector

1шт.

5

245917C1

DECAL

DECAL - rotating beacon

1шт.

6

321-1077

DECAL

- Drain Air Tank Daily

1шт.

7

321-3574

DECAL

- Caution, lift and tiedown instructions

3шт.

7a

3231781R1

IDEOGRAM

DECAL - rear wiper switch

1шт.

8

L126411

DECAL

- cold start

1шт.

9

1971226C1

DECAL

- fuses, canopy models, no longer available, order item 10, 1969969C1 decal

1шт.

10

1969969C1

DECAL

- fuses, cab models

1шт.

10a

3231783R1

IDEOGRAM

DECAL - windshield washer, see Note 1

1шт.

11

1977818C1

DECAL

- environmental, cab models with heater

1шт.

12

1977819C1

DECAL

- environmental, cab models with heater and air conditioning

1шт.

13

1977820C1

DECAL

- environmental, canopy models

1шт.

14

321-4614

TAG

- do not operate

1шт.

15

1977319C1

DECAL

- loader control, use with L116443 single lever remote control valve with two spool valve shown on page 8-57

1шт.

16

1977651C1

DECAL

- loader control, use with L118040 dual lever remote control valve with two spool valve shown on page 8-59

1шт.

17

1977321C1

DECAL

- loader control, use with L116443 single lever and L123917 auxiliary single lever remote control valves with three spool valve shown on page 8-63

1шт.

18

1977320C1

DECAL

- loader control, use with L118040 dual lever and L123917 auxiliary single lever remote control valves with three spool valve shown on page 8-65 and 8-67

1шт.

19

1977322C1

DECAL

- loader control, use with (2) L116443 single lever remote control valves with four spool valve shown on page 8-71

1шт.

20

245916C1

DECAL

DECAL - flasher lamp switch

1шт.
