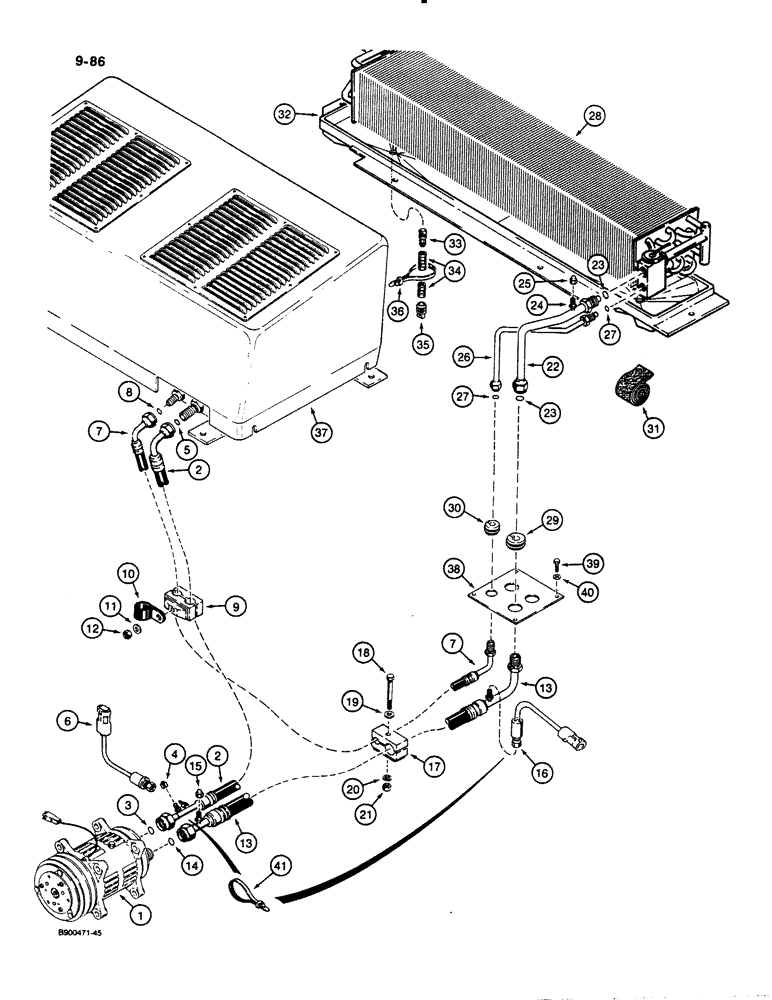

Запчасти Case 621 (9-086) - AIR CONDITIONING SYSTEM, COMPRESSOR TO CONDENSER AND EVAPORATOR CORE (09) - CHASSIS/ATTACHMENTS

1

97179C2

COMPRESSOR

ASSEMBLY - air conditioning, parts list Figure 9-94

1шт.

2

1954629C1

HOSE

- 1185 mm long, supply, Serial Range: compressor-condenser

1шт.

3

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch, at compressor outlet port

1шт.

4

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, female, 7/16 inch NF, only 1 cap used

2шт.

5

375271R1

O-RING,0.426" ID x 0.07" Width

- 7/16 x 9/16 inch Class 5, at condenser

1шт.

6

92038C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure, air conditioning

1шт.

7

1954642C1

HOSE

- 1325 mm long, return, condenser to evaporator core

1шт.

8

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Hose, at condenser

1шт.

9

L115095

CLAMP

- hose, includes both halves

1шт.

10

49838

CLAMP

- retaining, harness, if used

1шт.

11

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), If used 5/16"

1шт.

12

231-1445

NUT,5/16"-18, GB

NUT - light hex, self-locking, 5/16 inch NC

1шт.

13

1954643C2

HOSE

- 1050 mm long, evaporator core to compressor inlet port

1шт.

14

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch, hose, at compressor

1шт.

15

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, female, 7/16 inch NF, only 1 cap used

2шт.

16

L127461

SWITCH

- low pressure, attaches to rear harness

1шт.

17

L126403

FIXING BRACKET

CLAMP - hose, includes both halves

1шт.

18

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex head, 5/16 inch - 18 NC x 2-3/4 inch, plated

1шт.

19

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

22

97140C4

PIPE

TUBE - upper, pressure, evaporator core to compressor inlet hose

1шт.

23

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch, Class 5, tube

2шт.

24

1250594C1

CORE

VALVE - supply tube

1шт.

25

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, female, 7/16 inch NF

1шт.

26

97141C2

PIPE

TUBE - lower, return, condenser to evaporator core

1шт.

27

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

2шт.

28

98369C2

VALVE

CORE ASSEMBLY - combination, air conditioning and heater, parts list Figure 9-80

1шт.

29

L124504

GROMMET

- upper tube

1шт.

30

F37765

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

- lower tube

1шт.

31

83822C1

TAPE

- 24 inch (610 mm) long, rubber, insulation, cut to required length from 1954475C1 bulk tape, see below

1шт.

air conditioning core tubes, valve, and hoses

5шт.

32

1339577C2

PAN

- drip, condensation

1шт.

33

1250522C3

FITTING

FITTING - drain hose to drip pan

2шт.

34

1977334C1

HOSE

- 24 inch (610 mm) long, cut from 198091C2 bulk hose, see below, drain, from condensation pan

2шт.

35

109239C2

CHECK VALVE

VALVE, CHECK

2шт.

36

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

4шт.

37

97182C4

CAPACITOR

CONDENSER ASSEMBLY - air conditioning, parts list and mounting Figures 9-88 and 9-90

1шт.

38

1339878C1

LARGE PLATE

PLATE - heating and air conditioning tubes, if used

1шт.

39

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

40

195-104

WASHER,3/8"

- flat, , plated, if used 3/8"

4шт.

41

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

1954475C1

ROLL

TAPE - bulk, 30 ft (9150 mm) long, insulation

1шт.

198091C2

HOSE

- bulk roll, 50 ft (15240 mm) long, drain

1шт.
