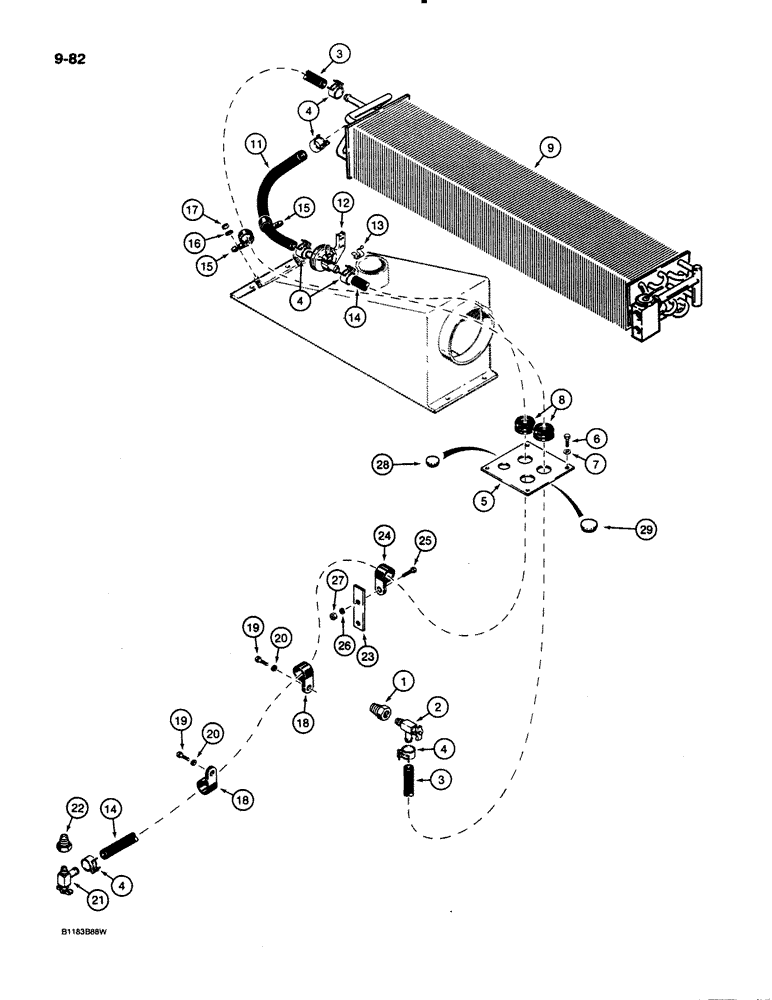

Запчасти Case 621 (9-082) - HEATING SYSTEM, CABS WITH 60 INCH (1524 MM) LONG HEATER SUPPLY HOSE (09) - CHASSIS/ATTACHMENTS

1

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

1шт.

2

301803R1

SHUT-OFF VALVE

VALVE - shutoff, water

1шт.

3

1977502C1

HEATER HOSE,15.50 mm ID x 1524.00 mm

HOSE , With white stripe, Supply 15.50 mm ID x 1524.00 mm

1шт.

4

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, No. 24

6шт.

5

1339878C1

LARGE PLATE

PLATE - heating and air conditioning tubes, if used

1шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

7

195-104

WASHER,3/8"

- flat, , plated, if used 3/8"

4шт.

8

L116914

GROMMET

- heater tubes

2шт.

9

98369C2

VALVE

CORE ASSEMBLY - combination, heating and air conditioning, parts list Figure 9-80

1шт.

10

1331025C1

CORE

- used on models with heater only, not shown

1шт.

11

1977501C1

HEATER HOSE,15.50 mm ID x 610.00 mm

HOSE , Return, At Core 15.50 mm ID x 610.00 mm

1шт.

12

1331087C1

HEATER VALVE

VALVE - heater, flow control

1шт.

13

1954626C1

SPRING CLIP

CLIP - heater cable

1шт.

14

97248C1

HOSE

- 92" (2337 mm) long, cut to required length from 97252C1 bulk hose, see

1шт.

below, return, engine to heater valve

1шт.

15

R14668

CLAMP

- hose

2шт.

16

195-102

WASHER,1/4"

- flat, , plated 1/4"

2шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

18

49891

CLAMP

- hose

2шт.

19

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 20 mm, plated

2шт.

20

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

2шт.

21

301803R1

SHUT-OFF VALVE

VALVE - shutoff, water

1шт.

22

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

- 1/2" x 3/8" NPT, plated

1шт.

23

L119144

LARGE PLATE

STRAP - clamp mounting

1шт.

24

R14668

CLAMP

- hose

1шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", zinc plated

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

425-106

NUT,3/8"-16, Cl 5

1шт.

28

353-411

PLUG,Dome, 1.000" hole, Nylon

Used on models with heating only Dome, 1.000" hole, Nylon

1шт.

29

353-422

PLUG,Dome, 1.250" hole, Nylon

Used on models with heating only Dome, 1.250" hole, Nylon

1шт.

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

1шт.
