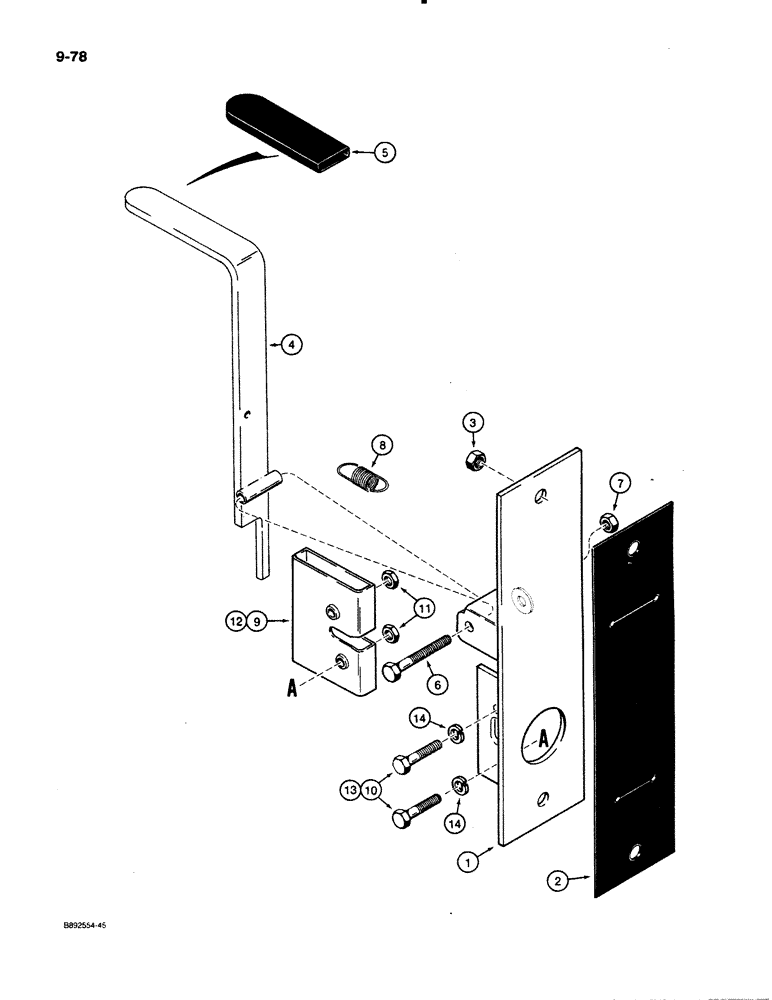

Запчасти Case 621 (9-078) - ROTARY WINDOW LOCK (09) - CHASSIS/ATTACHMENTS

1

1339604C2

SUPPORT

BRACKET - lever mount

1шт.

2

1981892C1

SEAL

- bracket

1шт.

3

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

4

1340189C1

HANDLE

- release, open window retainer

1шт.

5

1339797C1

GRIP

- release handle

1шт.

6

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

1шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

8

A163012

SPRING

- return

1шт.

9

1340187C1

LOCK

CATCH - female, open window retainer, if used, uses item 10 bolt and item 11 nut

1шт.

10

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Use with item 9 catch Hex, 1/4"-20 x 1 1/4", G5

2шт.

11

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4 inch NC, use with item 9 catch

2шт.

12

1340187C2

LATCH

CATCH - female, open window retainer, if used, has threaded sleeve, does not require nut, uses item 13 bolt and item 14 lock washer

1шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, Use with item 12, 1340187C2 catch

2шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Use with item 12, 1340187C2 catch 1/4"

2шт.
