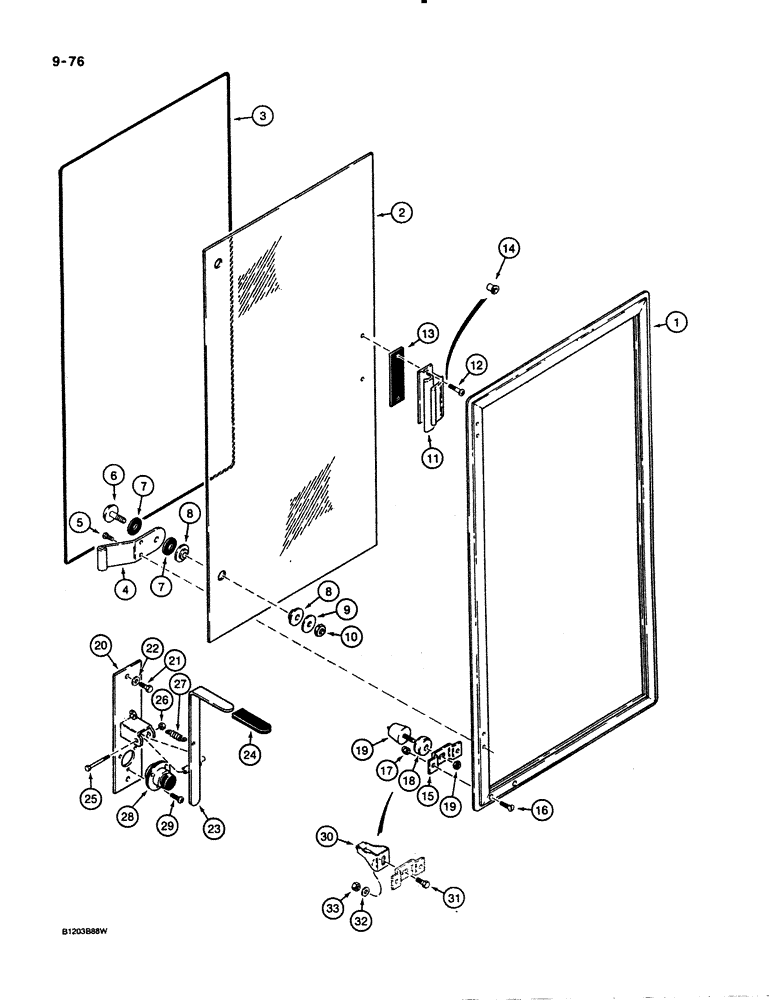

Запчасти Case 621 (9-076) - CAB DOOR WINDOW (09) - CHASSIS/ATTACHMENTS

108196A1

WINDOW ASSY

WINDOW ASSEMBLY - cab door (Replaces 1969949C2)THE NEW WINDOW ASSEMBLY 108196A1HAS THE HINGE ON IT POSITIONED LOWER (AT THE BOTTOM OF THE WINDOW FRAME) THAN THE OLD WINDOW ASSEMBLY DID. THE NEW WINDOW FRAME HINGE MUST SIT BELOW THE MATING HINGE THAT IS W

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - window, cab door

1шт.

2

1977654C2

GLASS,CAB

GLASS - window

1шт.

Ref #2 - (4 1/2" C to C for handle holes) 04/19/96

1шт.

3

1977655C1

SEAL

SEAL - 120 inch (3048 mm) long

1шт.

4

1339737C2

HINGE

- window retaining

2шт.

5

182-569

SCREW,Slotted Pan Hd, #10-32 x 1/2"

- pan head slotted, No. 10 - 32 NF x 1/2", black Teflon

4шт.

6

1970077C1

BOLT

BOLT - round head, 1/2" - 20 NF x 1", special

2шт.

7

1970078C1

WASHER

SEAL - rubber, 17/32" ID x 1-13/32" OD x 1/16" thick

4шт.

8

1970079C1

SEALING WASHER

SEAL - glass, bushing

4шт.

9

1970080C1

WASHER

- flat, 17/32" ID x 1-13/32" OD x 3/32" thick

2шт.

10

1970081C1

NUT

- hex, 1/2" - 20 NF

2шт.

11

1339749C1

LOCK

LATCH - window

1шт.

Ref #11 - (4 1/4" span between Screw holes) 04/19/96

1шт.

12

182-557

SCREW,Cross Pan Hd, #10-32 x 3/4"

- machine, pan Phillips head, No. 10 - 32 NF x 3/4"

2шт.

13

1970083C1

GASKET

- window latch

1шт.

14

1970082C1

ROUND NUT

- special

2шт.

15

1339736C1

SUPPORT

BRACKET - mounting, window catch

1шт.

16

73-414

SCREW,Slotted Fil Hd, 1/4"-20 x 7/8"

- flat slotted head, 1/4" - 20 NC x 7/8"

2шт.

17

129-886

CROWN NUT,Crown, 1/4"-20

- dome, 1/4" - 20 NC, black Teflon

2шт.

18

1339819C1

SPACER

- retainer catch, use with item 28, 1339815C1 catch

1шт.

19

1339748C1

STUD

CATCH - male, open window retainer, includes nut, if used, use with item 28, 1339815C1 catch

1шт.

20

1339604C1

SUPPORT

BRACKET - lever mount

1шт.

21

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

22

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

23

1339602C1

HANDLE

- release, open window retainer

1шт.

24

1339797C1

GRIP

- release handle

1шт.

25

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

1шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

27

1973556C1

SPRING

- return

1шт.

28

1339815C1

CATCH

- female, open window retainer, no longer available, order one each of items 30, 31, 32, and 33, shown below on this Figure, one of item 9 and two each of items 10 and 11 on Figure 9-78

1шт.

29

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips head, No. 10 - 24 NC x 1/2"

3шт.

30

1981896C1

STOP

CATCH - male, open window retainer, see page 9-79 for female catch and rotary window lock

1шт.

31

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

32

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch

1шт.

33

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.
