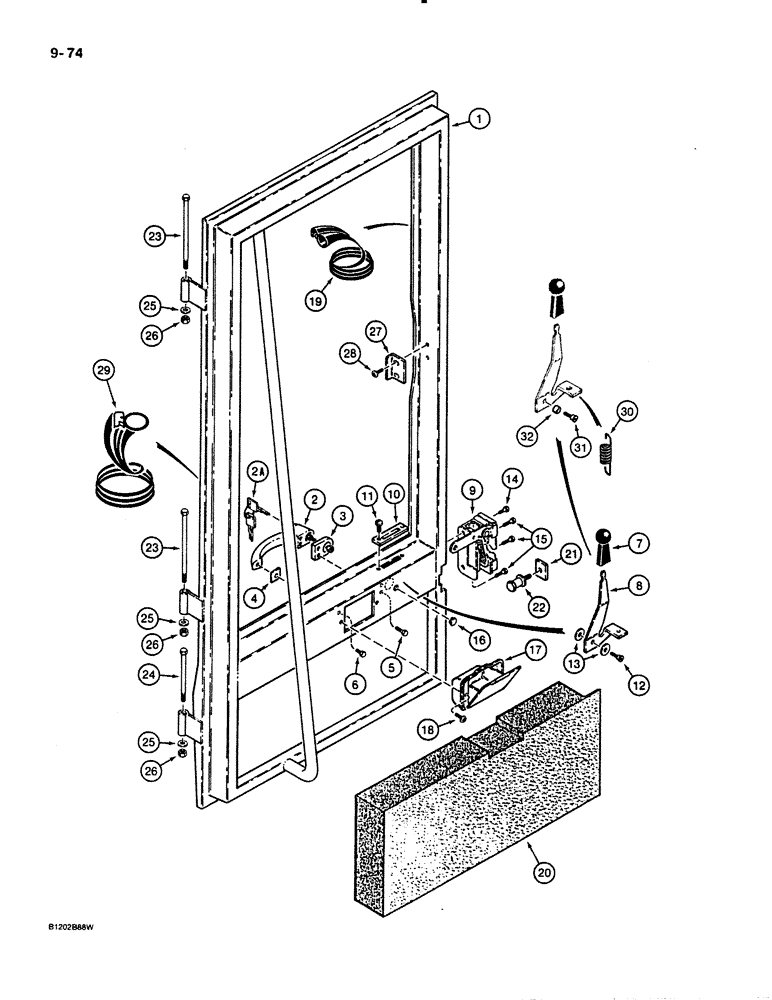

Запчасти Case 621 (9-074) - CAB DOOR AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

1969995C2

DOOR

FRAME - door, no longer available, order item 1A, 1969995C4

1шт.

1a

1969995C4

DOOR

FRAME - door, without mounting hole for ashtray, not shown

1шт.

2

1339958C1

HANDLE

- door, outer

1шт.

2a

A77313

SET OF 2 KEYS

KEY - set of two, same as ignition key

1шт.

3

1969996C1

SUPPORT

SPACER - handle, front

1шт.

4

1969997C1

SUPPORT

SPACER - handle, rear

1шт.

5

814-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex head, 6 mm - 1 x 25 mm, plated

2шт.

6

814-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

- hex head, 6 mm - 1 x 12 mm, plated

1шт.

7

D135387

GRIP

KNOB - handle, inner

1шт.

8

1969988C2

HANDLE

- door, inner

1шт.

9

1339959C1

LOCK ASSY

LATCH - door striker

1шт.

10

1339925C1

LARGE PLATE

PLATE - inner door handle

1шт.

11

187-1911

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW - pan head slotted, self-tapping, No. 10 - 16 x 1/2"

2шт.

12

1970009C1

BOLT

BOLT - shoulder, 5/16 NC x 3/4 inch, replaced by items 31 and 32, 61-520 bolt and 1981767C1 spacer

1шт.

13

1973554C1

WASHER

WASHER - flat, special, nylon, replaced by items 31 and 32, 61-520 bolt and 1981767C1 spacer

2шт.

14

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

15

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

16

353-404

PLUG,Dome, .500" hole, Nylon

1шт.

17

A165449

ASH TRAY

ASHTRAY - cab door, if used

1шт.

18

187-1408

SELF-TAP SCREW,Slotted Oval Hd, #6 x 1/2"

SCREW - oval head, self-tapping, No. 6 - 32 NC x 1/2"

2шт.

19

1340109C1

DOOR SEAL

- 3099 mm long, window, door frame

1шт.

20

1339939C2

LINING

PAD - interior cover, adhesive back, lower cab door

1шт.

21

1339560C1

LARGE PLATE

PLATE - striker

1шт.

22

R51754

STRIKER

STRIKER - door latch

1шт.

23

113-254

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

- hex head, 3/8" - 16 NC x 6-1/2", zinc plated

2шт.

24

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

1шт.

25

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust, plastic, hinge

6шт.

26

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, plated

3шт.

27

1973532C3

SUPPORT

BRACKET - window latch

1шт.

28

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips head, 1/4" - 20 NC x 3/4"

2шт.

29

1981874C1

DOOR SEAL

SEAL - 4191 mm long, door

1шт.

30

A163012

SPRING

- handle, inner door

1шт.

31

61-520

HEX SOC SCREW,5/16"-18 x 1 1/4"

BOLT - hex socket head, 5/16 NC x 1-1/4 inch

1шт.

32

1981767C1

SPACER

- handle

1шт.
