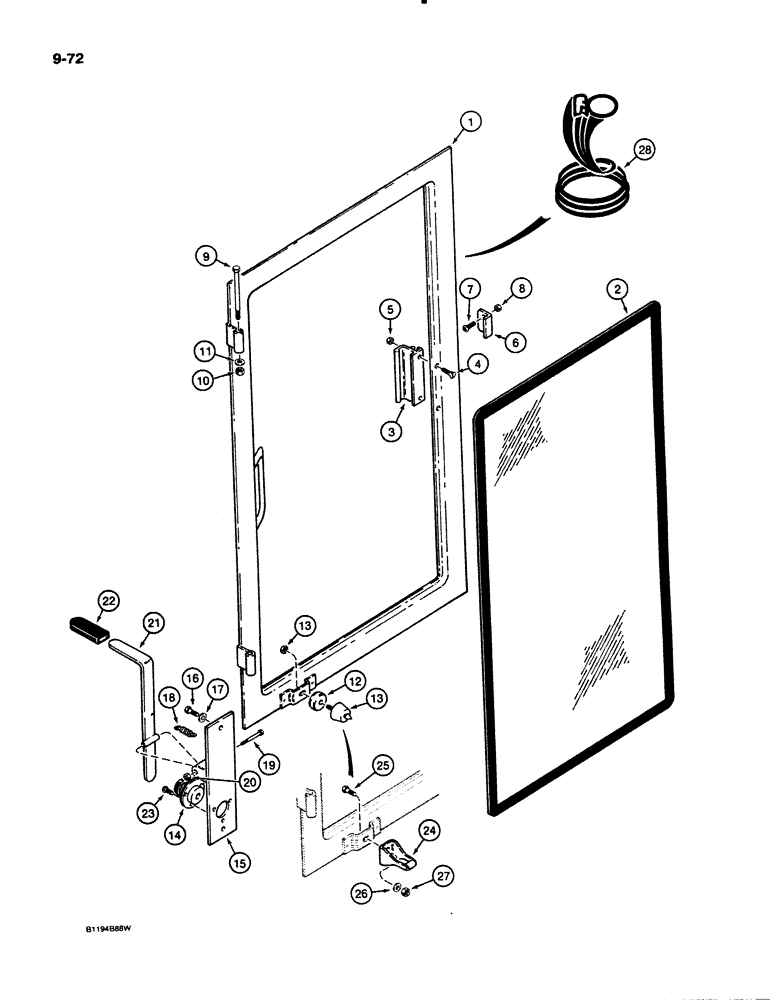

Запчасти Case 621 (9-072) - RIGHT-HAND CAB WINDOW (09) - CHASSIS/ATTACHMENTS

1

1339638C2

FRAME

- window, right-hand

1шт.

2

1339575C2

GLASS

- window, right-hand

1шт.

3

1339749C1

LOCK

LATCH - window, right-hand, Serial Range: attaches-window

1шт.

4

172-99

SCREW,Sl Flat Hd, #10 - 32 x 5/8"

- machine, flat head slotted, No. 10 - 32 NF x 5/8"

2шт.

5

129-37

NUT,#10-32

2шт.

6

1340003C1

LATCH

- window, right-hand, attaches to cab frame

1шт.

7

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips, 1/4" - 20 NC x 3/4", black

2шт.

8

129-119

NUT,1/4"-20, G5

Black Teflon 1/4"-20, G5

2шт.

9

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

10

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

11

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- plastic, hinge

2шт.

12

1339819C1

SPACER

- retainer catch, use with 1339815C1 catch

1шт.

13

1339748C1

STUD

CATCH - male, open window retainer, if used, use with 1339815C1 catch

1шт.

14

1339815C1

CATCH

- female, open window retainer, no longer available, order one each of items 24, 25, 26, and 27, shown below on this Figure, one of item 9, female catch, and two each of items 10, bolt, and 11, nut, shown on Figure 9-78

1шт.

15

1339604C1

SUPPORT

BRACKET - mounting, open window retaining device

1шт.

16

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

17

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

18

1973556C1

SPRING

- extension

1шт.

19

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

1шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

21

1339602C1

HANDLE

- release, open window retainer

1шт.

22

1339797C1

GRIP

- plastic, release handle

1шт.

23

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips head, No. 10 - 24 NC x 1/2"

3шт.

24

1981896C1

STOP

CATCH - male, open window retainer, see Figure 9-78, items 9 or 12, female catch

1шт.

25

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

26

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch

1шт.

27

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

28

1344165C1

SEAL

SEAL - 3510 mm long, RH window

1шт.

621 LOADER, CATALOG 8-4353, PAGE 9-73....IF ITEM 12, 13, OR 14 ARE NEEDED YOU MUST UPDATE TO THE PARTS SHOWN IN THE DESCRIPTION FOR ITEM 14. THE ORIGINAL STYLE IS NLF.

1шт.
