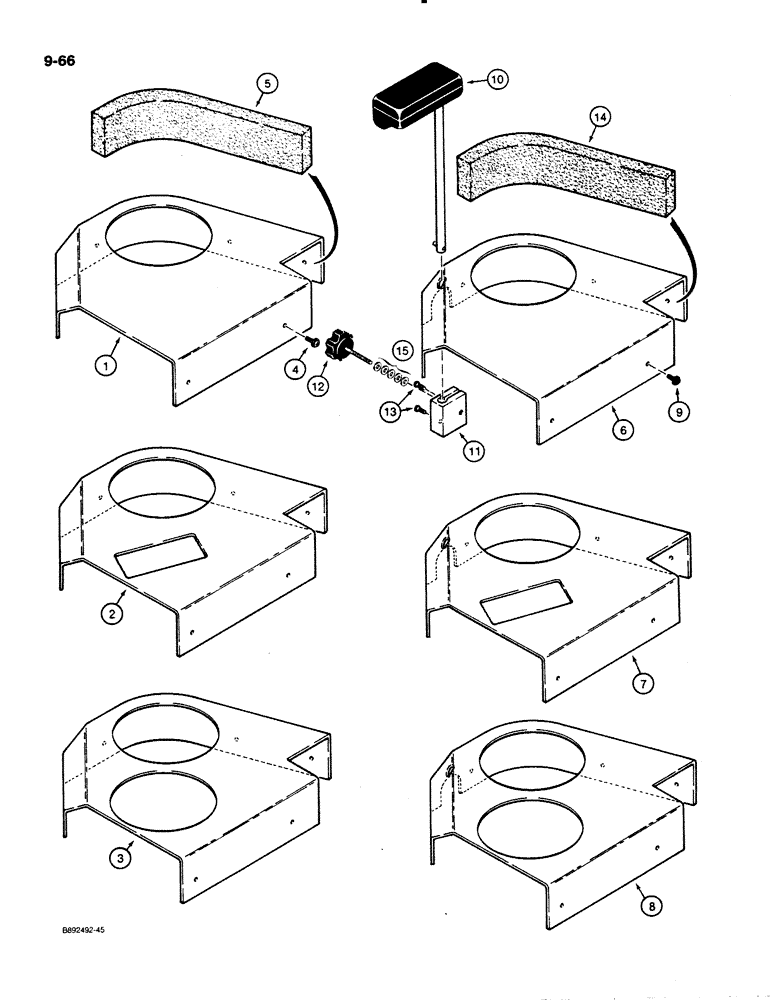

Запчасти Case 621 (9-066) - CONSOLE COVERS AND WRISTREST (09) - CHASSIS/ATTACHMENTS

1

1969923C2

BRACKET

COVER - console, use on models with single or dual lever remote control, without wristrest

1шт.

2

1969925C2

BRACKET

COVER - console, use on models with single or dual lever remote control and single lever auxiliary control, without wristrest

1шт.

3

1969924C2

BRACKET

COVER - console, use on models with two single lever remote controls, without wristrest

1шт.

4

F45174

SCREW,#10 - 16 x 3/4"

- special, No. 10-16 x 1 inch, use on models without wristrest

5шт.

5

1981910C1

INSULATION,61mm W x 365mm L x 25mm Thk

- 365 mm long, adhesive backed, use on models with canopy, without wristrest

1шт.

6

1977942C1

BRACKET

COVER - console, use on models with single or dual lever remote control valve, with wristrest

1шт.

7

1977944C1

BRACKET

COVER - console, use on models with single or dual lever remote control and single lever auxiliary control, with wristrest. Rectangular hole needs to be added

1шт.

8

1977943C1

BRACKET

COVER - console, use on models with two single lever remote controls, with wristrest

1шт.

9

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - Phillips with washer, No. 10-16 x 3/4 inch, use on models with wristrest

5шт.

10

1338223C1

PAD

- wristrest

1шт.

11

1338240C1

BASIC BLOCK

BLOCK - adjustment, wristrest

1шт.

12

1338268C1

BUTTON

KNOB - adjustment, wristrest

1шт.

13

182-547

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- pan head, 1/4 NC x 1/2 inch, use on models with wristrest

2шт.

14

1981910C1

INSULATION,61mm W x 365mm L x 25mm Thk

- 365 mm long, adhesive backed, use on models with canopy, with wristrest

1шт.

15

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 3/32 inch, use on models with wristrest

1шт.
