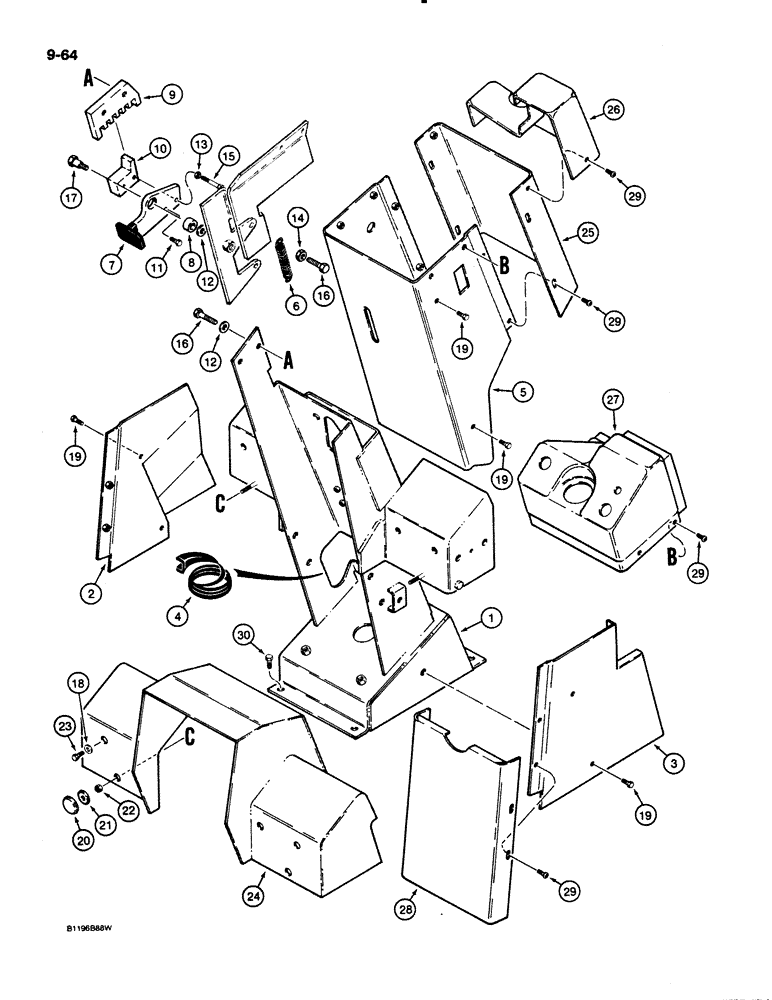

Запчасти Case 621 (9-064) - PEDESTAL AND TILT LATCH (09) - CHASSIS/ATTACHMENTS

1

1970046C3

BASE

- pedestal

1шт.

2

1970010C2

COVER

- pedestal, lower left-hand side

1шт.

3

1970011C2

COVER

- pedestal, lower right-hand side

1шт.

4

1970021C1

GROMMET

TRIM - flexible, pedestal

2шт.

5

1338172C1

COVER

- pedestal, molded, covers upper rear and right-hand and left-hand sides

1шт.

6

A163012

SPRING

- tilt latch

1шт.

7

1338174C1

LEVER

- tilt latch

1шт.

8

NSS

NOT SOLD SEPARAT

BUSHING - lever

1шт.

9

1969906C3

LATCH ASSY.

RACK - tilt latch

1шт.

10

1969903C4

LATCH ASSY.

LATCH - tooth

1шт.

11

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

12

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, if used

3шт.

13

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

14

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

15

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

1шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

17

596021R1

BOLT

BOLT - special, shoulder, 3/8" - 16 NC x 1"

1шт.

18

195-81022

WASHER,3/8" x 7/8" x .066"

- flat, 3/8 x 7/8 x 1/16 inch

4шт.

19

113-32

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

8шт.

20

1970019C1

CAP

- bolt, raised head, if used

2шт.

21

1970020C1

CAP WASHER

- special, cap, if used

2шт.

22

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

23

113-191

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

Hex, 5/16"-18 x 3/4",G5, Full Thd, Black Teflon

4шт.

24

1339987C1

COVER

- brake shaft

1шт.

25

1338170C1

COVER

- pedestal, upper front

1шт.

26

1977339C1

COVER

- steering column, front

1шт.

27

1977338C1

COVER

- steering column, rear

1шт.

28

1969910C2

COVER

- pedestal, lower center

1шт.

29

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

14шт.

30

1327799C1

BOLT,Hex Wshr Hd, 3/8" x 1 1/4"

BOLT - special, 3/8 NC x 1-1/4 inch

4шт.
