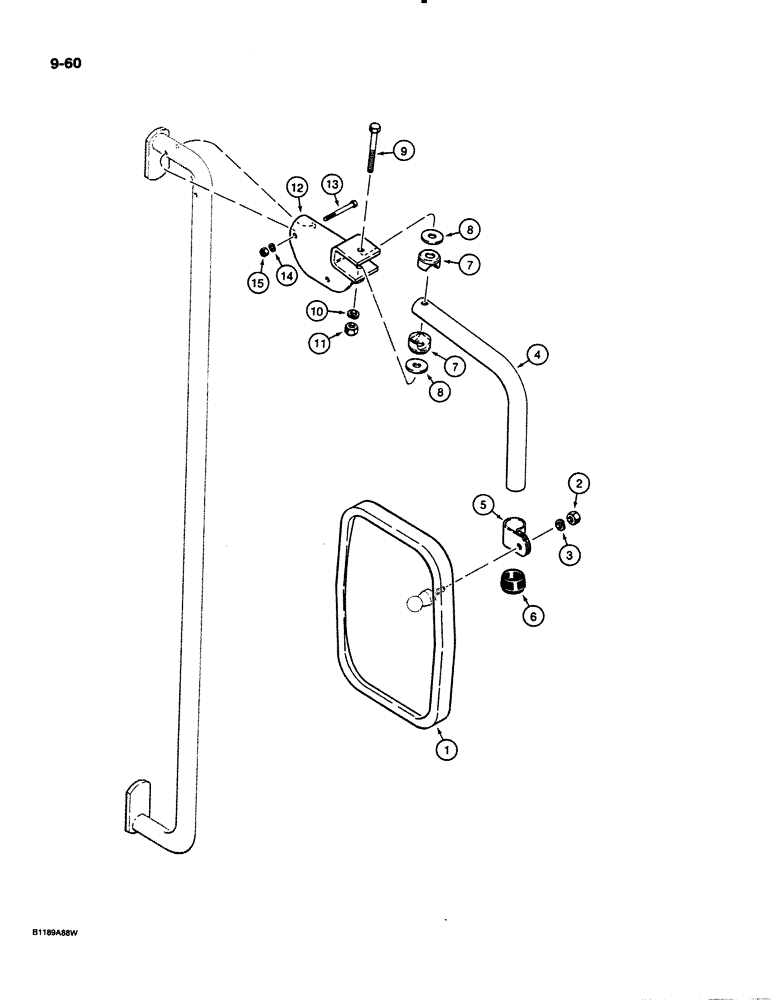

Запчасти Case 621 (9-060) - OUTER MIRROR (09) - CHASSIS/ATTACHMENTS

1

1283403C1

MIRROR

- rear view, right

2шт.

2

825-1110

NUT,M10, Cl 8

- hex, 10 mm - 1.5

2шт.

3

892-11010

LOCK WASHER,M10

2шт.

4

1977805C1

ARM

- mirror mounting

2шт.

5

1977834C1

MOUNTING CLIP

CLAMP - mirror mounting

2шт.

6

1977833C1

CAP

- plug

2шт.

7

1977831C1

MOUNTING CLIP

CLAMP - mirror

4шт.

8

1977832C1

WASHER

- brass

4шт.

9

113-2267

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

10

192-82

LOCK WASHER,3/8"

3/8"

2шт.

11

129-191

NUT,7/16"-14, G5

- hex, 3/8 inch NC

2шт.

12

1977802C1

SUPPORT

BRACKET - mirror mounting

2шт.

13

113-70

BOLT,Hex, 1/4" - 20 x 2", Gr 5

- hex, 3/4 NC x 1 inch (Replaces 113-700)

4шт.

14

192-83

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

129-119

NUT,1/4"-20, G5

4шт.
