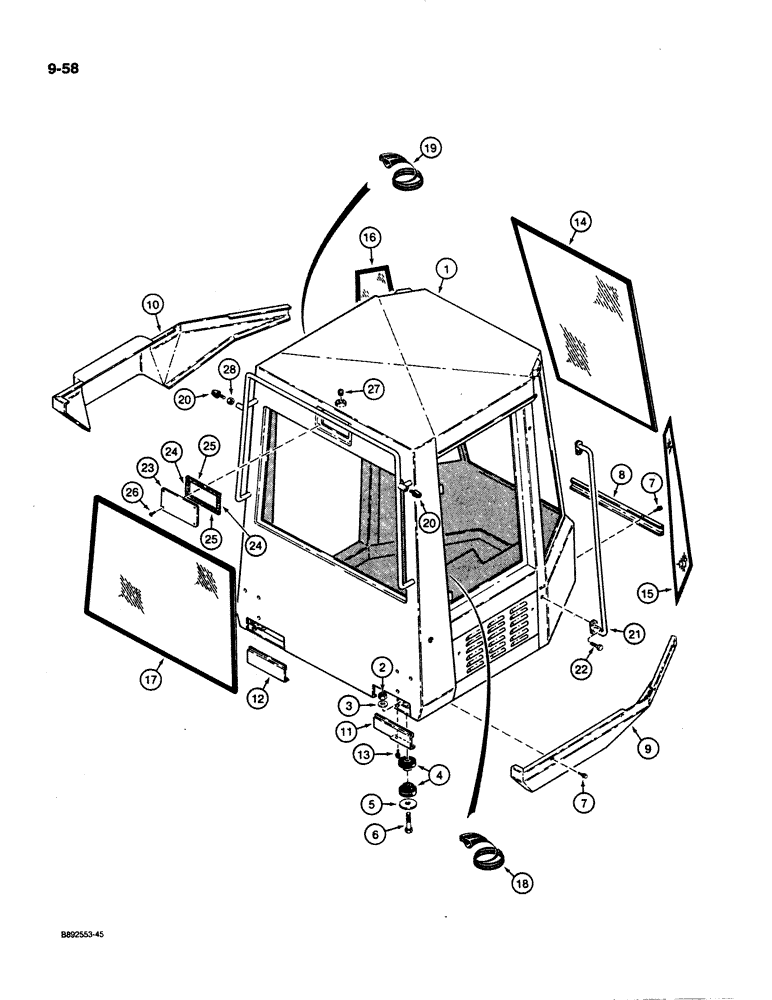

Запчасти Case 621 (9-058) - CAB MOUNTING AND GLASS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB ASSEMBLY - ROPS, machinery item, order from Machinery Price List

1шт.

For current part numbers for service cabs and canopys see service bulletin NWL SB 003 95 in 621B catalog 8-9371R2 on page 9-52 - 9-52A - 9-90 - 9-91A.

1шт.

2

329-1014

NUT,7/8"-9, G8

4шт.

3

25549R1

WASHER,15/16" x 1 3/4" x .219", HDN

- flat, 7/8 inch, hardened

4шт.

4

R54331

HITCH DAMPER

MOUNT - rubber, cab support

8шт.

5

1332154C1

WASHER,23mm ID x 95.3mm OD x 12.7mm Thk

- special, cab mounting

4шт.

6

326-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

4шт.

7

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

10шт.

8

1969928C1

PROFILE

PANEL - center, lower cab

1шт.

9

L125718

COVER

- cab, lower right-hand

1шт.

10

L126620

COVER

- cab, lower left-hand

1шт.

11

1977687C2

COVER

- rear, right-hand mounting access

1шт.

12

1339928C1

COVER

- rear, left-hand mounting access

1шт.

13

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

4шт.

14

1339573C2

GLASS

- front, center

1шт.

15

1339572C2

GLASS

- front, right-hand side

1шт.

16

1339571C2

GLASS

- front, left-hand side

1шт.

17

1970053C2

GLASS

- rear

1шт.

18

1339813C1

SEAL

- window, right-hand cab, 11.4 foot (3479.8 mm)

1шт.

19

1981874C1

DOOR SEAL

SEAL - 4191 mm long, door, left-hand cab

1шт.

20

N7673

BUMPER

- rubber

2шт.

21

1339767C2

HANDLE

HANDRAIL - front

2шт.

22

113-2447

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

23

1339882C1

LARGE PLATE

COVER - rear wiper mounting hole, use on units without rear wipers, no longer available, order item 29 cover, see note 2

1шт.

24

1981920C1

WIPER SEAL

- 110 mm long, adhesive backed, cover, cut to length from item 25, 1981919C1 seal

2шт.

25

1981919C1

WIPER SEAL

- 260 mm long, adhesive backed, cover, use with item 23, 1339882C1 cover

2шт.

26

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips head, 1/4 NC x 3/4 inch

4шт.

27

221-846

PLUG,Hex Soc, 1"-11 1/2

- square socket head, 1 inch PT

1шт.

28

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

29

1344260C1

GASKET

COVER - rear wiper mounting hole, includes seal, use on units without rear wipers, not shown

1шт.
