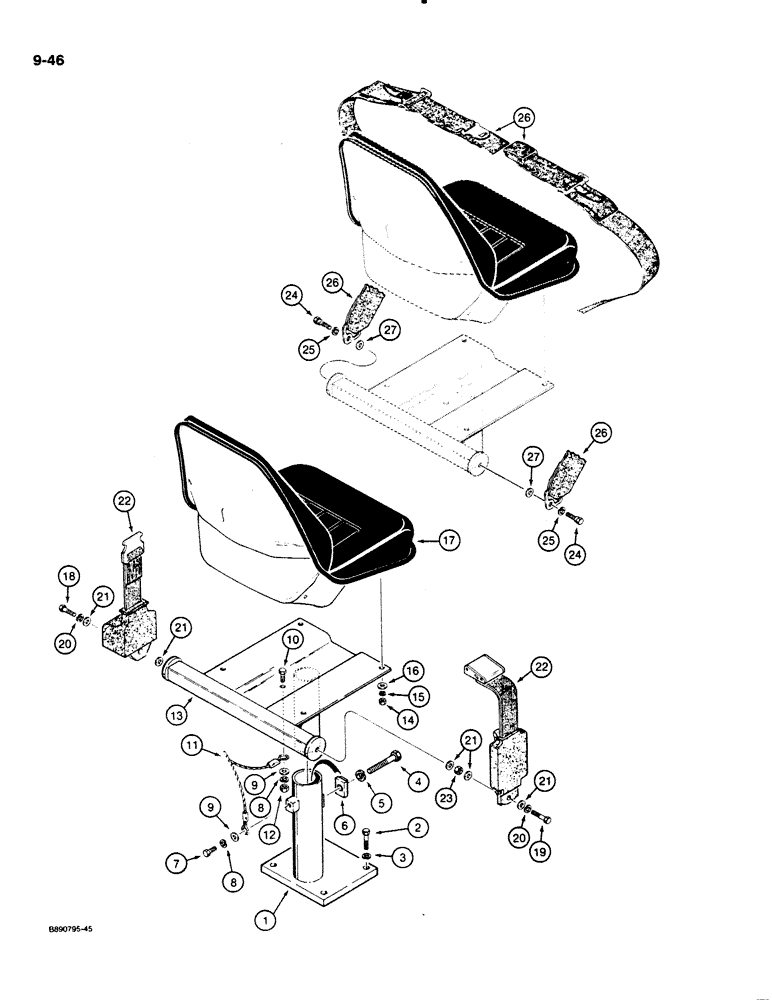

Запчасти Case 621 (9-046) - SEAT AND MOUNTING PARTS, STANDARD SEAT (09) - CHASSIS/ATTACHMENTS

1

97395C1

SUPPORT

- seat, lower, mounting

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2", seat mounting

4шт.

3

492-11038

LOCK WASHER,3/8"

seat mounting 3/8"

4шт.

4

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch, seat mounting

1шт.

5

492-21062

LOCK WASHER,5/8"

seat mounting 5/8"

1шт.

6

L59950

NUT

- special, seat mounting

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Seat mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

8

492-11038

LOCK WASHER,3/8"

seat mounting 3/8"

2шт.

9

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Seat mounting 3/8"

2шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Seat mounting

1шт.

11

L110228

CABLE

- galvanized steel, seat mounting

1шт.

12

425-106

NUT,3/8"-16, Cl 5

Seat mounting 3/8"-16, G5

1шт.

13

97394C2

SUPPORT

- seat, upper, seat mounting

1шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Seat mounting

4шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , seat mounting 5/16"

4шт.

16

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), Seat mounting 5/16"

4шт.

17

REF

INSTRUCTION

SEAT ASSEMBLY - standard, see Figure 9-50 for correct assembly and components, mounting

1шт.

18

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

- hex, 7/16 NF x 1-1/4 inch, 2 inch (51 mm) wide seat belt and mounting parts

1шт.

19

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- hex, 7/16 NF x 1-3/4 inch, 2 inch (51 mm) wide seat belt and mounting parts

1шт.

20

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , 2 inch (51 mm) wide seat belt and mounting parts 7/16"

2шт.

21

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x .083 inch, 2 inch (51 mm) wide seat belt and mountint parts

5шт.

22

1954788C1

SAFETY BELT

SAFETY BELT, Retractable, 2" (51 mm) wide, Standard, 2" (51 mm) wide belt and mounting parts

1шт.

23

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF, 2 inch (51 mm) wide seat belt and mounting parts

1шт.

24

F42236

STEP BOLT

BOLT - shoulder, 7/16 NF X 1-1/4 inch, 3 inch (76 mm) wide seat belt and mounting parts

2шт.

25

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , 3 inch (76 mm) wide seat belt and mounting parts 7/16"

2шт.

26

D85816

SAFETY BELT

BELT - seat, non-retractable, 3 inch (76 mm) wide, optional, mounting parts

1шт.

27

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x .083 inch, 3 inch (76 mm) wide seat belt and mounting parts

2шт.
