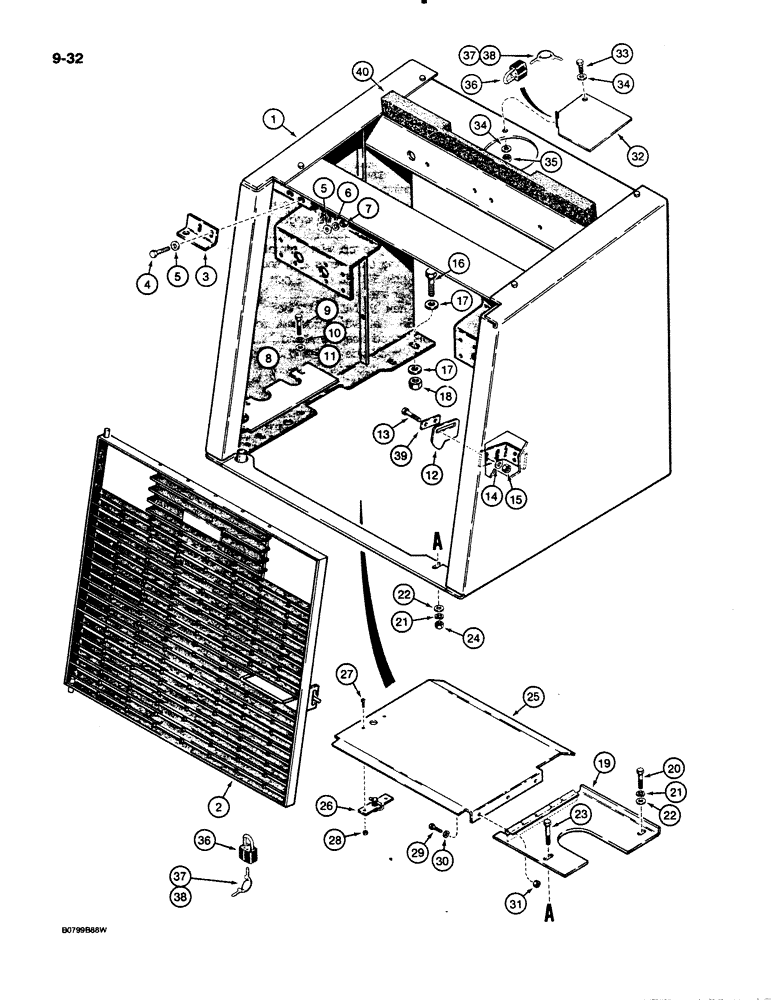

Запчасти Case 621 (9-032) - RADIATOR GUARD, GRILLE, AND BATTERY COVER, PRIOR TO P.I.N. JAK0020901 (09) - CHASSIS/ATTACHMENTS

1

L126136

COWL

GUARD - radiator, includes lamp brackets

1шт.

2

L118925

SIEVE

GRILLE - radiator

1шт.

3

L118936

SUPPORT

BRACKET - upper grille support

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", zinc plated

2шт.

5

495-21044

WASHER,3/8"

4шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

L126278

SUPPORT

BRACKET - support, left-hand battery cover

1шт.

9

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

12

L126920

LATCH

CATCH - lever, grille

1шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2", zinc plated

2шт.

14

D41740

WASHER

- flat, 3/8 x 1 x 1/8 inch, hardened

2шт.

15

131-217

LOCK NUT

NUT - hex, self-locking, 3/8" - 16 NC, plated, grade 8

2шт.

16

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex head, 5/8" - 11 NC x 2", zinc plated

4шт.

17

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

8шт.

18

131-64

LOCK NUT,5/8"-11, GC

NUT - hex, self-locking, 5/8" - 11 NC, plated

4шт.

19

L126281

SUPPORT

- battery cover, right-hand

1шт.

20

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

23

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex head, 5/16" - 18 NC x 1-3/4", zinc plated

1шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, zinc plated

1шт.

25

L126279

COVER

- battery

1шт.

26

L102515

LATCH

- battery cover

1шт.

27

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head slotted, No. 10-24 x 1/2 inch

2шт.

28

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

29

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 3/4", zinc plated

3шт.

30

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

31

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

3шт.

32

L126779

LARGE PLATE

PLATE - lockup, radiator

1шт.

33

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

34

495-21044

WASHER,3/8"

2шт.

35

131-217

LOCK NUT

NUT - hex, self-locking, 3/8" - 16 NC, plated, grade 8

1шт.

36

D93753

PADLOCK

- includes keys, if used

2шт.

37

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

38

R29555

KEY

- for Master padlock only, if used

2шт.

39

L126841

LARGE PLATE

PLATE - support, lever catch

1шт.

40

L127462

SEAL

- adhesive backed, hood

1шт.
