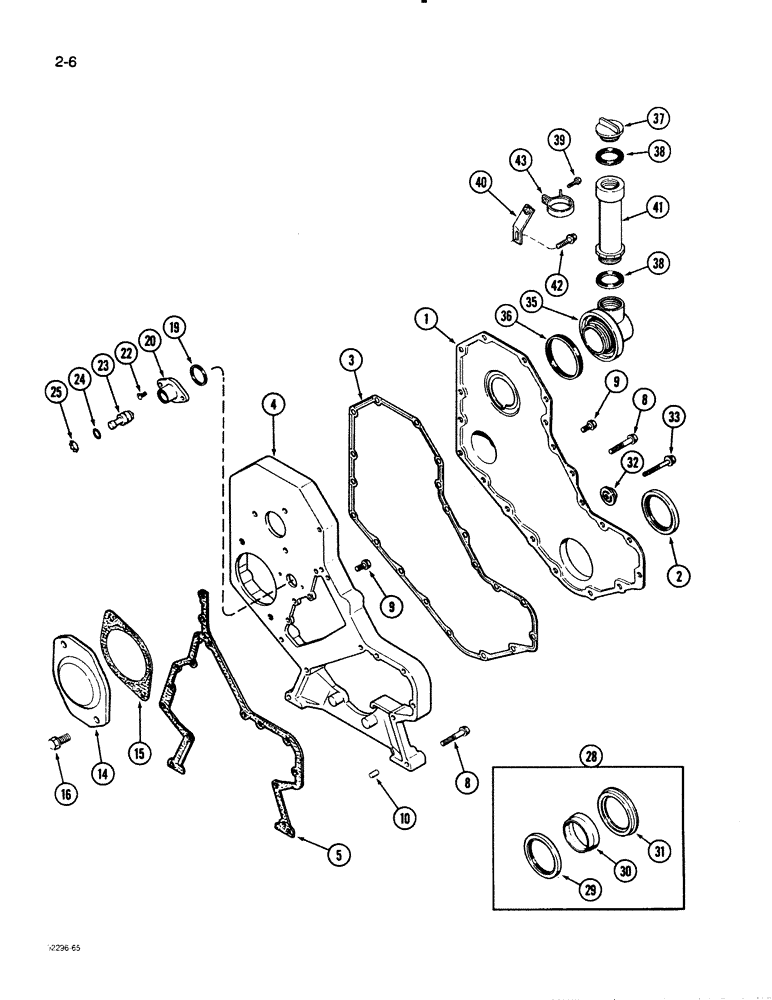

Запчасти Case 621 (2-06) - FRONT GEAR COVER, 6T-590 ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
J903794
COVER
- gear, front
1шт.
2
NSS
NOT SOLD SEPARAT
SEAL - oil, cover (Order Ref 28)
1шт.
3
J914385
GASKET,1.02mm Thk
- front cover
1шт.
4
J917759
HOUSING
- timing gear (Replaces J910411)
1шт.
5
J916131
GASKET
- gear housing
1шт.
8
845-8050
BOLT,Hvy Hex, M8 x 50mm, Cl 8.8
- hex, 8 mm - 1.25 x 50 mm
11шт.
9
845-8016
BOLT,Hvy Hex, M8 x 16mm, Cl 8.8
- hex, 8 mm - 1.25 x 16 mm
16шт.
Ref. Item #7 845-8016- the proper bolt to use is J924962 (or J900629 bolt with Loctite) by TSG bb 3/24/98
1шт.
14
J914868
COVER
PLATE - cover, access
1шт.
15
J913192
GASKET
- cover plate
1шт.
16
854-12025
BOLT,Hvy Hex, M12 x 25mm, Cl 10.9
- hex flange, 12 mm - 1.75 x 25 mm
2шт.
19
J915772
SEAL,Square, 1.68mm Thk x 29.87mm ID, -25
SEALRING - pin housing (Replaces J914092)
1шт.
20
J905933
HOUSING
- timing pin
1шт.
22
J907998
SCREW,M5 x 0.8 x 17mm, Cl 8.8
LOCK, Spc Rd Torx Hd, M5 x 17
2шт.
23
J903924
PIN,18.87mm OD x 55mm L
- timing
1шт.
25
J904849
SNAP RING,0.875", Int, #87
RING, SNAP, , timing pin 0.875", Int, #87
1шт.
28
J904353
GASKET KIT
SEAL KIT - oil, crankshaft front
1шт.
29
NSS
NOT SOLD SEPARAT
SEAL - oil, crankshaft front
1шт.
30
NSS
NOT SOLD SEPARAT
TOOL - seal installation
1шт.
31
NSS
NOT SOLD SEPARAT
TOOL - seal installation
1шт.
32
J912772
RETAINER
- belt
1шт.
33
845-8060
BOLT,Hvy Hex, M8 x 60mm, Cl 8.8
- hex flange, 8 - 1.25 x 60 mm
1шт.
35
J911679
HOUSING
CONNECTOR - engine oil fill
1шт.
36
J903475
SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk
- cover
1шт.
37
J901895
CAP
- oil filler
1шт.
38
J902363
O-RING,30mm ID x 48mm OD x 3mm Thk
- oil fill cap
2шт.
39
814-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd
1шт.
40
J914497
SUPPORT
BRACE - tube
1шт.
41
J914738
TUBE,32 mm ID x 38 mm OD x 138 mm L
- oil filler
1шт.
42
845-6010
BOLT,Hvy Hex, M6 x 10mm, Cl 8.8
Retaining, Housing to head Hex Flg, M6 x 10, 8.8, Full Thd
1шт.
43
J914940
CLAMP
BRACE - tube
1шт.
Выбрано товаров: 33
