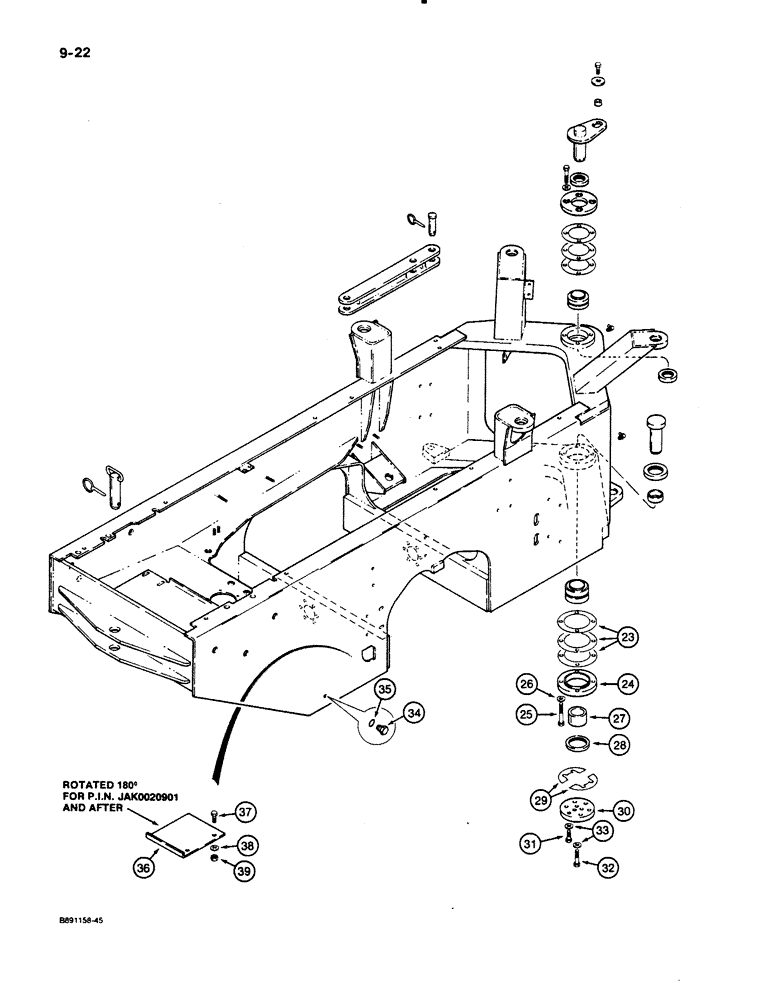

Запчасти Case 621 (9-022) - REAR FRAME AND PIVOT (09) - CHASSIS/ATTACHMENTS

23

L118990

SHIM,124mm ID x 190mm OD x 0.11mm Thk

Lower pivot 0.1mm Thk

1шт.

23

L119203

SHIM,124mm ID x 190mm OD x 0.28mm Thk

- lower pivot, 0.25 mm thick

1шт.

23

L118989

SHIM,124mm ID x 190mm OD x 0.54mm Thk

Lower pivot 0.5mm Thk

1шт.

24

L118902

COVER

RETAINER - lower pivot

1шт.

25

326-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

4шт.

26

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

27

L118858

SPACER,63.54mm ID x 79.4mm OD x 56.45mm L

- lower, lower pivot bearing

1шт.

28

L126168

SEAL,79.38mm ID x 108.05mm OD x 11.89mm Thk

- lower, lower pivot

1шт.

29

L118983

SHIM,90mm ID x 160mm OD x 0.11mm Thk

One half, Lower plate 0.1mm Thk

1шт.

29

L118980

SHIM,90mm ID x 160mm OD x 0.28mm Thk

One half, Lower plate 0.25mm Thk

1шт.

29

L118982

SHIM,90mm ID x 160mm OD x 0.54mm Thk

One half; Lower plate 0.5mm Thk

1шт.

30

L128375

PLATE

- lower pin

1шт.

31

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

6шт.

32

326-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

3шт.

33

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

9шт.

34

L118906

PLUG

- special, fuel drain, prior to P.I.N. JAK0020901

1шт.

36

L126370

LARGE PLATE

GUARD - air dryer, attaches to rear chasis

1шт.

37

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

- hex head, 1/2" - 13 NC x 1-3/8", zinc plated

2шт.

38

495-21056

WASHER,1/2"

- flat, , zinc plated 1/2"

2шт.

39

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

35

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Drain plug

1шт.
