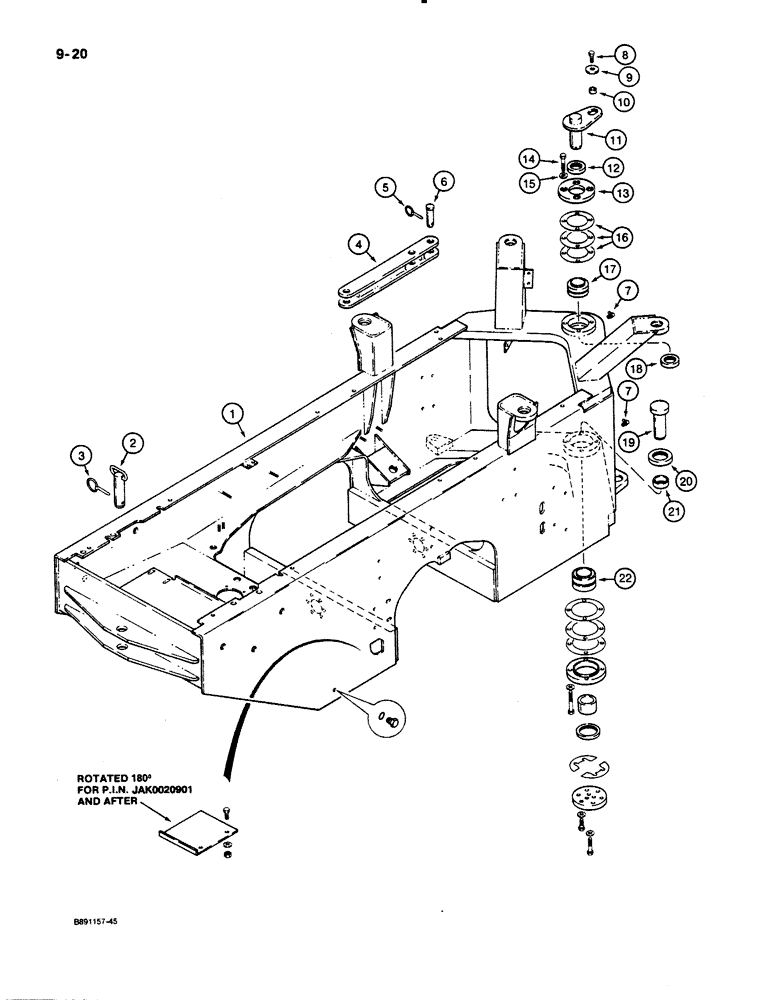

Запчасти Case 621 (9-020) - REAR FRAME AND PIVOT (09) - CHASSIS/ATTACHMENTS

1

L118764

TOOTH

FRAME - rear, includes fuel tank, prior to P.I.N. JAK0020901

1шт.

1a

L127275

CHASSIS

FRAME - rear, includes fuel tank, P.I.N. JAK0020901 through JAK0021336, not shown

1шт.

1b

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG- square socket head, 3/4 inch male PT, frame, not shown

1шт.

1c

L128216

CHASSIS

FRAME - rear, includes fuel tank, P.I.N. JAK0021337 and after, not shown

1шт.

2

L104989

STOP

PIN - drawbar, if used

1шт.

3

D33805

PIN

- lock, if used

1шт.

4

L124505

PITMAN ASSY.

LINK - safety

1шт.

5

A30338

PIN

- locking

2шт.

6

A164277

PIN,31.75mm OD x 107.95mm L

- lock, safety link

2шт.

7

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

2шт.

8

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

9

D35009

WASHER

- flat, special, hardened

1шт.

10

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

- upper pin

1шт.

11

L118861

HANDLED SHAFT

PIN - upper pivot

1шт.

12

L118973

SEAL,57.15mm ID x 89.03mm OD x 12.7mm Thk

- upper, upper articulation plate

1шт.

13

L118901

COVER

RETAINER - upper pivot

1шт.

14

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

4шт.

15

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

16

L118987

SHIM,0.1mm Thk

Upper pivot 0.1mm Thk

1шт.

16

L119202

SHIM,0.25mm Thk

Upper pivot 0.25mm Thk

1шт.

16

L118986

SHIM,0.5mm Thk

Upper pivot 0.5mm Thk

1шт.

17

L118856

TAPERED BEARING,57.15mm ID x 100mm OD x 42mm W

BEARING - upper pivot

1шт.

18

L126169

SEAL,57.15mm ID x 89.03mm OD x 12.7mm Thk

- lower, upper articulation plate

1шт.

19

L118857

PIVOT PIN,63.48mm OD x 191.75mm L

PIN - lower pivot

1шт.

20

L118978

SEAL,79.38mm ID x 108.05mm OD x 12.7mm Thk

- upper, lower pivot

1шт.

21

L118862

SPACER,63.55mm ID x 79.4mm OD x 28.6mm L

- upper, lower pivot bearing

1шт.

22

L118868

TAPERED BEARING,63.51mm ID x 122.24mm OD x 76.71mm W

BEARING - lower pivot

1шт.

L81108

KIT

lift and tie down brackeys, kit contains 4 brackets with decals and instructions, available through wholegoods

1шт.

L118815

ANCHOR

EAR weldment, tis is the little ear that sticks out below Ref. 19 and is for the steering.

1шт.
