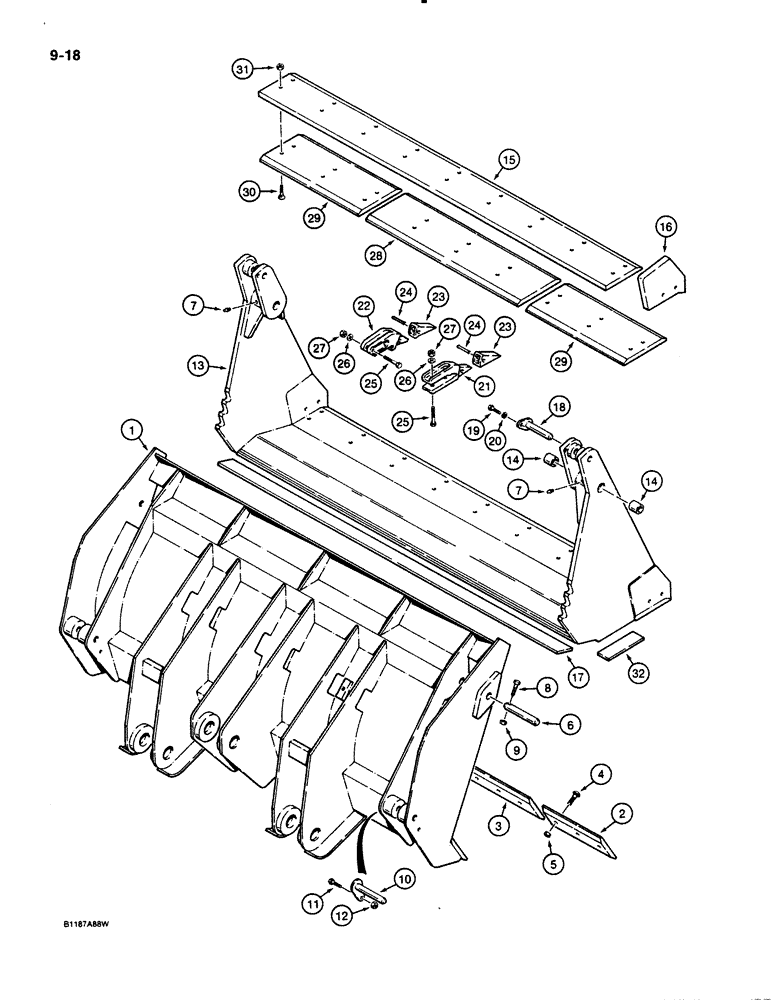

Запчасти Case 621 (9-018) - AUXILIARY BUCKET (09) - CHASSIS/ATTACHMENTS

L126248

BUCKET

ASSEMBLY - clam, 2 cubic yard (1.5 cubic meter), machinery item, order from Machinery Price List, bucket assembly also includes items 1 through 14 on Figure 8-18

1шт.

1

S300140

BUCKET

BLADE - bucket

1шт.

2

S300145

EDGE, CUTTING

EDGE - cutting, outer

2шт.

Ref #2 is 18" Long and have 6" C to C hole spacing. IF LOOKING FOR EDGE 20" LONG, ORDER S301632

1шт.

3

S300144

EDGE, CUTTING

EDGE - cutting, center

1шт.

4

118-503

PLOW BOLT,3/4"-10 x 2 1/4", G8

BOLT - plow, 3/4" - 10 NC x 2-1/4", grade 8

16шт.

5

129-138

NUT,3/4"-10, G8

16шт.

6

S300141

PIVOT PIN

PIN, PIVOT -, Serial Range: Clam-blade

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

8

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex head, 1/2" - 13 NC x 3-1/2", plated

2шт.

9

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

2шт.

10

S300143

PIN

- Cylinder mounting, lower

2шт.

11

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

12

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

2шт.

S300139

BUCKET

CLAM ASSEMBLY - bucket

1шт.

13

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

14

S300154

BUSHING

- clam

4шт.

15

S300156

EDGE, CUTTING

EDGE - cutting, clam, weld on, front

1шт.

16

S300157

EDGE, CUTTING

BRACE - corner

2шт.

17

S300155

LARGE PLATE

PLATE - compaction, rear

1шт.

18

S300142

PIN

- Cylinder mounting, upper

2шт.

19

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex head, 1/2" - 13 NC x 1-1/4", plated

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

L117816

TOOTH

ASSEMBLY - bucket, center

7шт.

L117817

TOOTH

ASSEMBLY - bucket, corner

2шт.

21

NSS

NOT SOLD SEPARAT

TOOTH - bucket, center, L117816 tooth assembly

1шт.

22

NSS

NOT SOLD SEPARAT

TOOTH - bucket, corner, L117817 tooth assembly

1шт.

23

D55468

TOOTH

- tooth

1шт.

24

L32090

PIN

PIN - flex, point retaining

1шт.

25

26-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8

- hex head, 3/4" - 10 NC x 3-3/4", grade 8

18шт.

26

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened

18шт.

27

25-1612

NUT,3/4"-10, G5, Hvy

- hex, 3/4" - 10 NC, grade 8

18шт.

28

S300167

EDGE, CUTTING

EDGE - cutting, center, bolt-on, clam, if used

1шт.

29

S300168

EDGE, CUTTING

EDGE - cutting, corner, bolt-on, clam, if used

2шт.

30

118-510

PLOW BOLT,3/4"-10 x 2 3/4", G8

BOLT - plow, 3/4 - 10 NC x 2-3/4", if used

18шт.

31

129-138

NUT,3/4"-10, G8

If used 3/4"-10, G8

18шт.

32

S300169

LARGE PLATE

PLATE - skid, if used

4шт.

Bolt on Cutting Edges for the Clam Blade are P/N L128264 Center Edge (1) and P/N L128265 End Edge (2) Both have 11 3/4" C to C hole spacing.

1шт.
