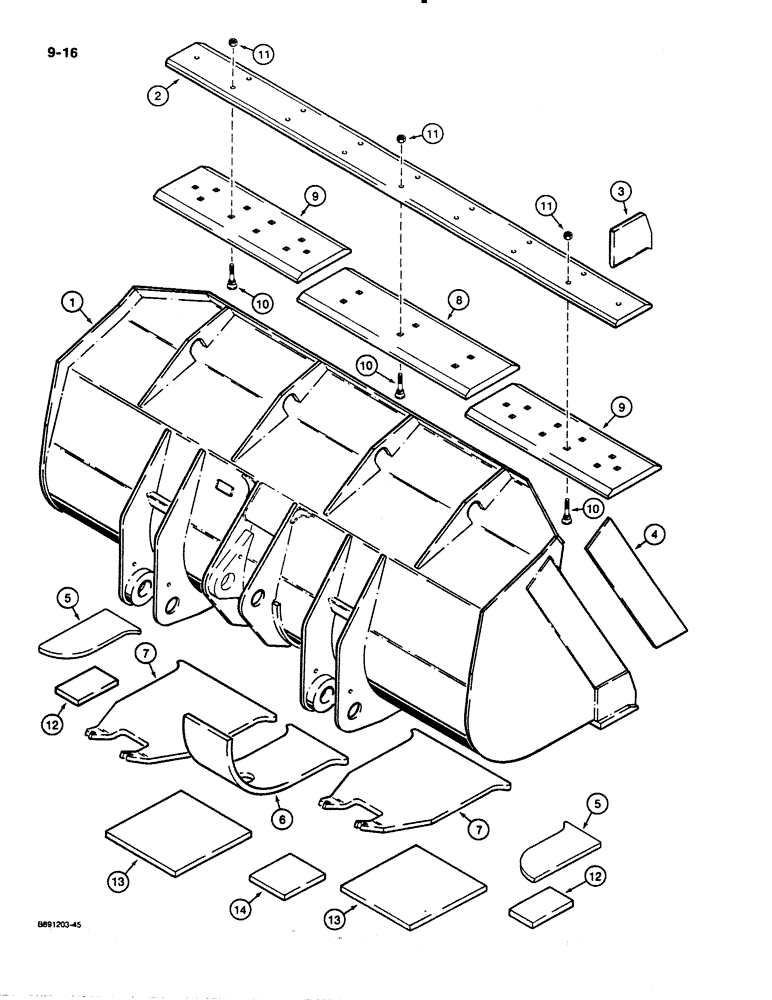

Запчасти Case 621 (9-016) - LOADER BUCKETS AND CUTTING EDGES, 2.75 CUBIC YARD BUCKET, MODELS WITH L125741 OUTER WEAR PLATE (09) - CHASSIS/ATTACHMENTS

L127251

BUCKET

ASSEMBLY - loader, machinery item, order from Machinery Price List, 2.75 cubic yard bucket models with L125741 outer wesr plate, item 5

1шт.

2

L127426

EDGE, CUTTING

EDGE - cutting, bucket, weld on, 2.75 cubic yard bucket models with L125741 outer wear plate, item 5

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 2.75 cubic yard bucket models with L125741 outer wear plate, item 5

1шт.

2

L127426

EDGE, CUTTING

EDGE - cutting, bucket, weld on, 2.75 cubic yard bucket models with L125741 outer wear plate, item 5

1шт.

3

L127292

EDGE, CUTTING

EDGE - cutting, bucket corner, weld on, 2.75 cubic yard bucket models with L125741 outer wear plate, item 5

2шт.

3

L127292

EDGE, CUTTING

EDGE - cutting, bucket corner, weld on, 2.75 cubic yard bucket models with L125741 outer wear plate, item 5

2шт.

4

L127266

EDGE, CUTTING

EDGE - cutting, bucket side, weld on, 2.75 cubic yard bucket models with L125741 outer wear plate, item 5

2шт.

5

L125741

LARGE PLATE

PLATE - wear, outer, 2.75 cubic yard bucket modles with L125741 outer wear plate, item 5

2шт.

6

L127049

STIFFENER

PLATE - wear, center, 2.75 cubic yard bucket models with L125741 outer wear plate, item 5

1шт.

7

L126129

LARGE PLATE

PLATE - wear, bucket ear, 2.75 cubic yard bucket models with L125741 outer wear plate, item 5

2шт.

8

L127038

EDGE, CUTTING

EDGE - cutting, center, bolt on, bolt on cutting edge and additional wear plates

1шт.

9

L127429

EDGE, CUTTING

EDGE - cutting, end, bolt on, bolt on cutting edge and additional wear plates

2шт.

10

L127054

PLOW BOLT,#3, Dome Hd, 3/4" - 10 x 3", Gr 8

BOLT - plow, 3/4 NC x 3 inch, grade 8, bolt on cutting edge and additional wear plates

16шт.

11

129-572

NUT,3/4"-10, G8

Bolt on cutting edge and additional wear plates 3/4"-10, G8

16шт.

12

L127045

LARGE PLATE

PLATE - wear, outer, bolt on cutting edge and additional wear plates

2шт.

13

L127046

LARGE PLATE

PLATE - wear, bucket ear, bolt on cutting edge and additional wear plates

2шт.

14

L127047

LARGE PLATE

PLATE - wear, center, bolt on cutting edge and additional wear plates

1шт.
