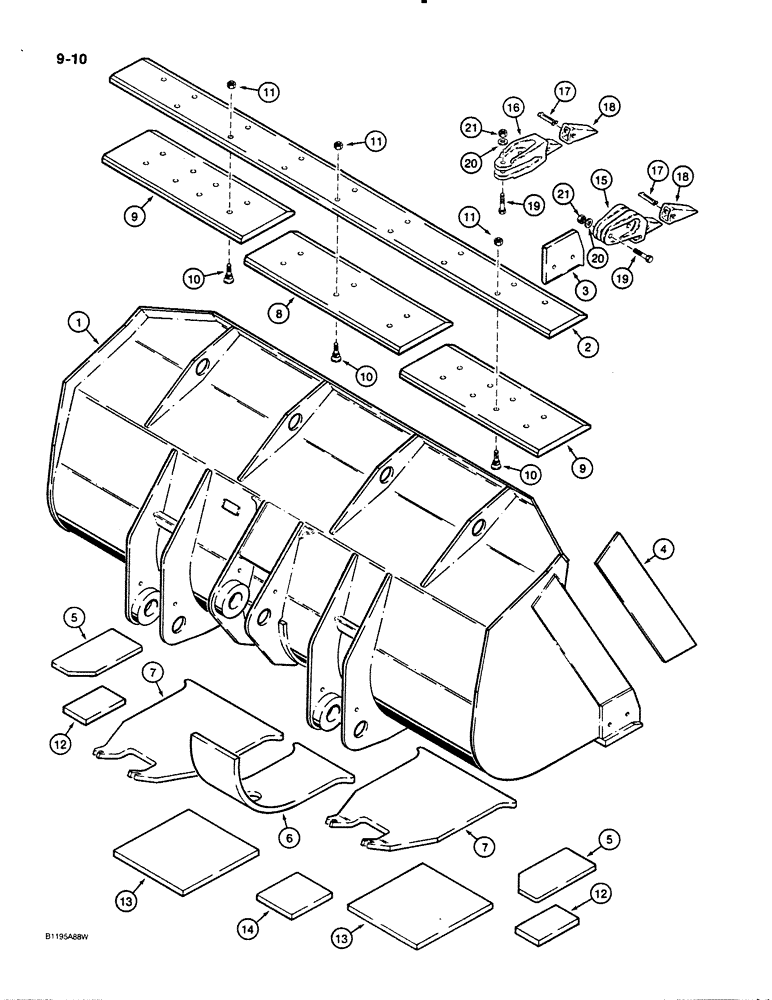

Запчасти Case 621 (9-010) - LOADER BUCKETS AND CUTTING EDGES, 2 AND 2.25 CUBIC YARD, 97 INCH WIDE BUCKETS (09) - CHASSIS/ATTACHMENTS

L126933

BUCKET

ASSEMBLY - loader, 97 inch wide, machinery item, order from Machinery Price List, 2 cubic yard (1.5 cubic meter)

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 2 cubic yard (1.5 cubic meter)

1шт.

2

L118719

EDGE, CUTTING

EDGE - cutting, bucket, weld on, 2 cubic yard (1.5 cubic meter)

1шт.

3

L118722

EDGE, CUTTING

EDGE - cutting, bucket corner, weld on, 2 cubic yard (1.5 cubic meter)

2шт.

4

L118957

EDGE, CUTTING

EDGE - cutting, bucket side, weld on, 2 cubic yard (1.5 cubic meter)

2шт.

5

L119343

LARGE PLATE

PLATE - wear, outer, 2 cubic yard (1.5 cubic meter) bucket

2шт.

6

L119340

STIFFENER

PLATE - wear, center, 2 cubic yard (1.5 cubic meter) bucket

1шт.

7

L119339

STIFFENER

PLATE - wear, bucket ear, 2 cubic yard (1.5 cubic meter)

2шт.

L126932

BUCKET

ASSEMBLY - loader, 97 inch wide, machinery item, order from Machinery Price List, 2.25 cubic yard (1.7 cubic meter)

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 2.25 cubic yard (1.7 cubic meter)

1шт.

2

L118719

EDGE, CUTTING

EDGE - cutting, bucket, weld on, 2.25 cubic yard (1.7 cubic meter)

1шт.

3

L118722

EDGE, CUTTING

EDGE - cutting, bucket corner, weld on, 2.25 cubic yard (1.7 cubic meter)

2шт.

4

L118957

EDGE, CUTTING

EDGE - cutting, bucket side, weld on, 2.25 cubic yard (1.7 cubic meter) bucket

2шт.

5

L119326

STIFFENER

PLATE - wear, outer, 2.25 cubic yard (1.7 cubic meter) bucket

2шт.

6

L119328

STIFFENER

PLATE - wear, center, 2.25 cubic yard (1.7 cubic meter) bucket

1шт.

7

L119327

STIFFENER

PLATE - wear, bucket ear, 2.25 cubic yard (1.7 cubic meter) bucket

2шт.

8

L124454

EDGE, CUTTING

EDGE - cutting, center, bolt on, additional wear plates

1шт.

9

L127428

EDGE, CUTTING

EDGE - cutting, end, bolt on, additional wear plates

2шт.

10

R56474

PLOW BOLT

- 3/4" - 10 NC x 2-1/2", grade 8, on cutting edge and additional wear plates

16шт.

11

129-572

NUT,3/4"-10, G8

Bolt on cutting edge and additional wear plates 3/4"-10, G8

16шт.

12

L124457

LARGE PLATE

PLATE - wear, outer, bolt on cutting edge and additional wear plates

2шт.

13

L124458

LARGE PLATE

PLATE - wear, bucket ear, bolt on cutting edge and additional wear plates

2шт.

14

L124459

LARGE PLATE

PLATE - wear, center, bolt on cutting edge and additional plates

1шт.

L126897

TOOTH

ASSEMBLY - bucket, corner

2шт.

R54275

TOOTH

ASSEMBLY - bucket, center

7шт.

15

NSS

NOT SOLD SEPARAT

TOOTH - bucket, corner

1шт.

16

NSS

NOT SOLD SEPARAT

TOOTH - bucket, center

1шт.

17

D39448

PIN

- flex, point retaining, bucket teeth

1шт.

18

L55608

POINT

- tooth, bucket

1шт.

19

26-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

- hex head, 3/4" - 10 NC x 3-1/4", grade 8, bucket teeth

18шт.

20

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 9/64 inch, hardened, bucket teeth

18шт.

21

25-1612

NUT,3/4"-10, G5, Hvy

- hex, 3/4" - 10 NC, grade 8, bucket teeth

18шт.
