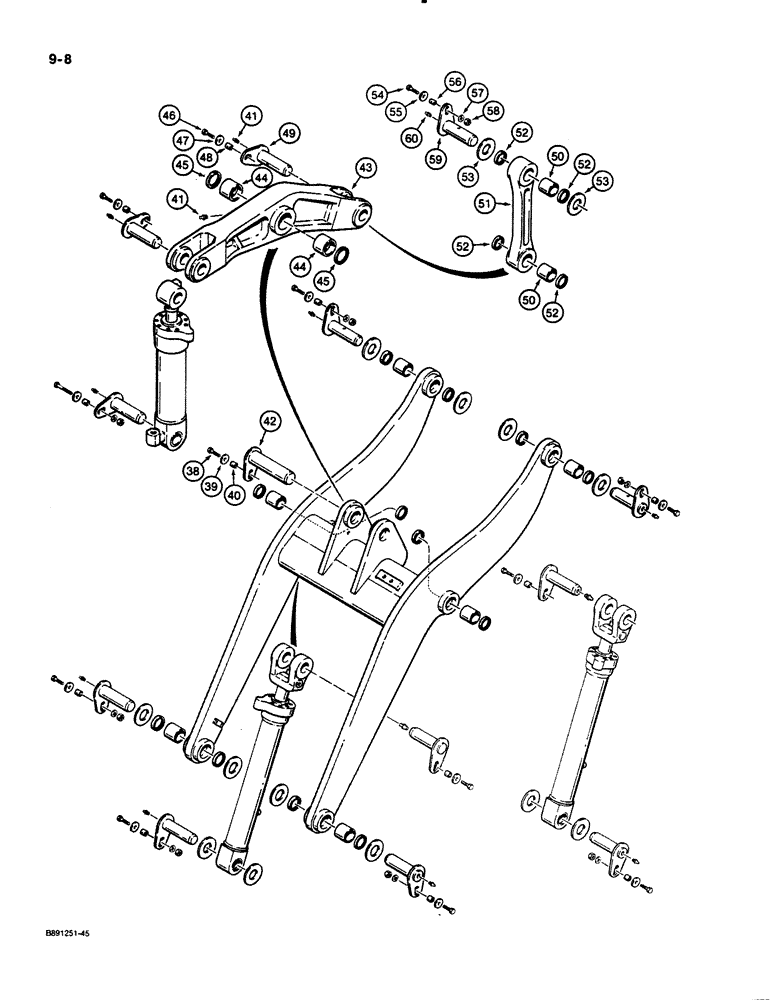

Запчасти Case 621 (9-008) - LOADER LIFT FRAME (09) - CHASSIS/ATTACHMENTS

38

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex head, 5/8" - 11 NC x 2-1/4", plated

1шт.

39

CASD35009

WASHER,16.67mm ID x 63.5mm OD

- flat, special, hardened

1шт.

40

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

- pin mounting

1шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

42

L118672

PIVOT PIN

PIN - bellcrank pivot

1шт.

L126716

LINKAGE YOKE

BELLCRANK ASSEMBLY - loader bucket

1шт.

43

NSS

NOT SOLD SEPARAT

BELLCRANK - loader bucket

1шт.

44

L118709

BUSHING,95.42mm ID x 111.25mm OD x 82mm L

- Bellcrank

2шт.

45

L118750

SEAL,92.71mm ID x 111.25mm OD x 7.95mm Thk

- wiper, bellcrank pivot

2шт.

46

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex head, 5/8" - 11 NC x 2-1/4", plated

1шт.

47

D35009

WASHER

- flat, special, hardened

1шт.

48

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

- pin mounting

1шт.

49

L118669

PIN

- loader bucket bellcrank to bucket dump link

1шт.

L118759

PITMAN ASSY.

LINK ASSEMBLY - bucket dump

1шт.

50

L127015

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

- loader bucket dump link

2шт.

51

NSS

NOT SOLD SEPARAT

LINK - loader bucket dump

1шт.

52

D95148

WIPER SEAL

SEAL - wiper, bucket dump link

4шт.

53

L118835

WASHER,77.5mm ID x 152mm OD x 3.5mm Thk

- flat, 77.5 x 152 x 3.5 mm

2шт.

54

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

1шт.

55

CASD35009

WASHER,16.67mm ID x 63.5mm OD

- flat, special, hardened

1шт.

56

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

- pin mounting

1шт.

57

495-21069

WASHER,5/8"

- plain, , plated 5/8"

1шт.

58

131-64

LOCK NUT,5/8"-11, GC

NUT - hex, self-locking, 5/8" - 11 NC, plated

1шт.

59

L118669

PIN

- loader bucket dump, Serial Range: link-bucket

1шт.

60

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.
