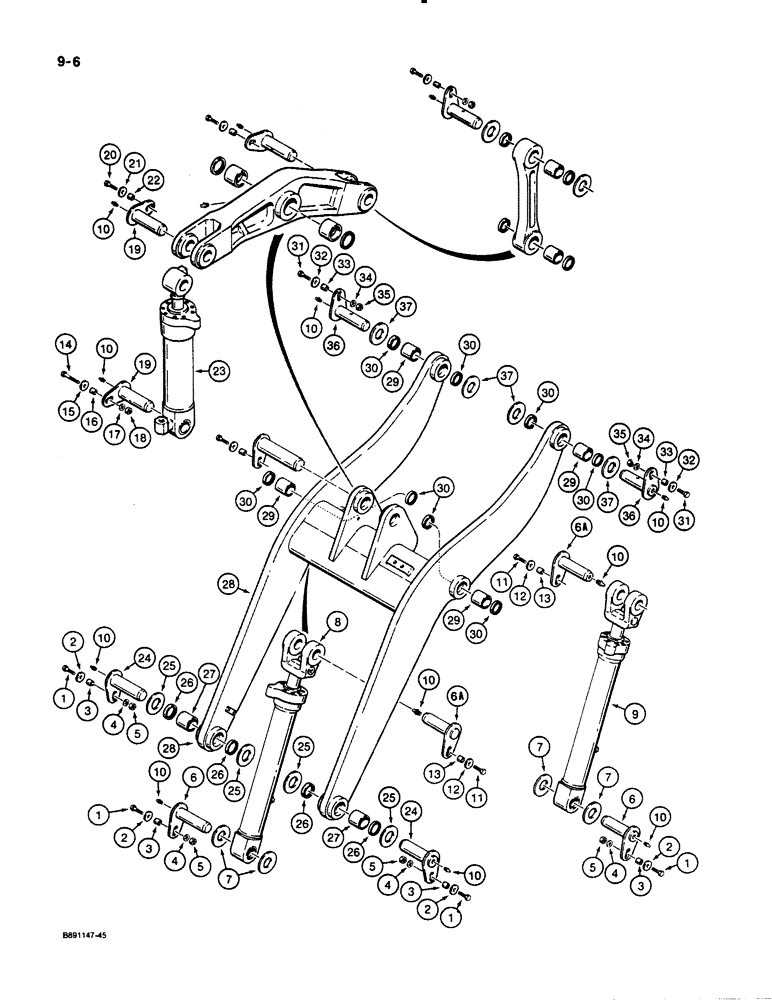

Запчасти Case 621 (9-006) - LOADER LIFT FRAME (09) - CHASSIS/ATTACHMENTS

1

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex head, 5/8" - 11 NC x 2-1/4", plated

4шт.

2

D35009

WASHER

- flat, special, hardened

4шт.

3

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

- pin mounting

4шт.

4

495-21069

WASHER,5/8"

- plain, , plated 5/8"

4шт.

5

131-64

LOCK NUT,5/8"-11, GC

NUT - hex, self-locking, 5/8" - 11 NC, plated

4шт.

6

L118669

PIN

- lift cylinder mounting

2шт.

6a

L127118

HANDLED SHAFT

PIN - lift cylinder mounting

2шт.

7

L127108

WASHER,77.5mm ID x 152mm OD x 2.5mm Thk

- flat, 77.5 x 152 x 2.5 mm

4шт.

8

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, right-hand, see Figure 8-46 for correct assembly and components

1шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, left-hand, see Figure 8-46 for correct assembly and components

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

10шт.

11

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

12

CASD35009

WASHER,16.67mm ID x 63.5mm OD

- flat, special, hardened

2шт.

13

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

- pin mounting

2шт.

14

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC X 4 inch

1шт.

15

D35009

WASHER

- flat, special, hardened

1шт.

16

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

- pin mounting

1шт.

17

495-21069

WASHER,5/8"

- plain, , plated 5/8"

1шт.

18

131-64

LOCK NUT,5/8"-11, GC

NUT - hex, self-locking, 5/8" - 11 NC, plated

1шт.

19

L118674

PIVOT PIN

PIN - bucket cylinder mounting

2шт.

20

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex head, 5/8" - 11 NC x 2-1/4", plated

1шт.

21

D35009

WASHER

- flat, special, hardened

1шт.

22

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

- pin mounting

1шт.

23

G110312

CYLINDER ASSY.

CYLINDER ASSEMBLY - bucket, prior to P.I.N. JAK0020286, parts list Figure 8-48, no longer available order 1980354C1

1шт.

23

1980354C1

CYLINDER

ASSEMBLY - bucket, P.I.N. JAK0020286 through JAK0020900, parts list Figure 8-50

1шт.

23

1343552C2

CYLINDER ASSY.

CYLINDER ASSEMBLY - bucket, P.I.N. JAK0020901 and after, parts list Figure 8-52

1шт.

24

L118674

PIVOT PIN

PIN - mounting, loader lift, Serial Range: frame-chassis

2шт.

25

L118834

WASHER,83.8mm ID x 152mm OD x 3.7mm Thk

- flat, wear, special

4шт.

26

L104363

WIPER SEAL

- loader lift, Serial Range: frame-chassis

4шт.

L126722

ARM

FRAME ASSEMBLY - loader lift

1шт.

27

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

- loader lift frame, at chassis

2шт.

28

NSS

NOT SOLD SEPARAT

FRAME - loader lift

1шт.

29

L127015

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

- loader lift frame, at lift cylinder and bucket

4шт.

30

D95148

WIPER SEAL

SEAL - wiper, loader lift frame, at lift cylinder and bucket

8шт.

31

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

2шт.

32

D35009

WASHER

- flat, special, hardened

2шт.

33

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

- pin mounting

2шт.

34

495-21069

WASHER,5/8"

- plain, , plated 5/8"

2шт.

35

131-64

LOCK NUT,5/8"-11, GC

NUT - hex, self-locking, 5/8" - 11 NC, plated

2шт.

36

L118669

PIN

- loader lift, Serial Range: frame-bucket

2шт.

37

L118835

WASHER,77.5mm ID x 152mm OD x 3.5mm Thk

- flat, 77.5 x 152 x 3.5 mm

4шт.
