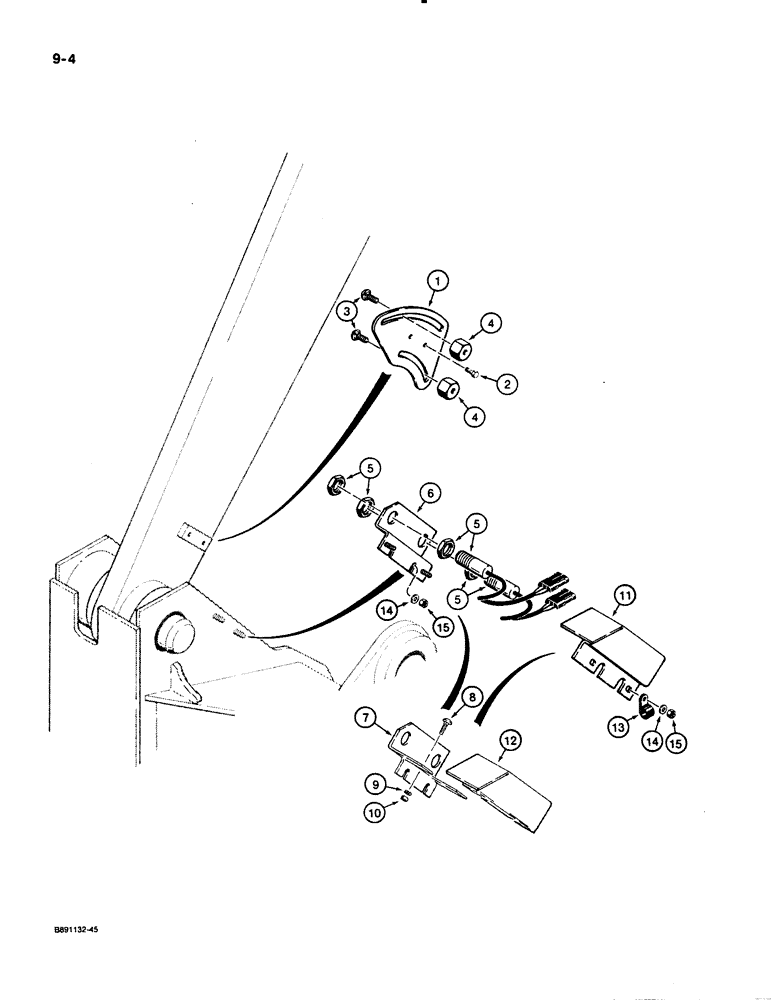

Запчасти Case 621 (9-004) - LOADER BUCKET HEIGHT CONTROL AND RETURN-TO-TRANSPORT (09) - CHASSIS/ATTACHMENTS

1

L124660

PLATE

- mounting, proximity switches

1шт.

2

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

3

111-512

CARRIAGE BOLT,Short NK, 1/2"-13 x 1", G2

BOLT, CARRIAGE, Short NK, 1/2"- 13 x 1", G2

2шт.

4

L123924

ACTIVATOR

ACTUATOR - switch, proximity

2шт.

5

A186283

IGNITION SWITCH

SWITCH - proximity, height control and, Serial Range: return-transport

2шт.

6

L124812

BRACKET

- mounting, proximity switches, no longer available, order L126729

1шт.

7

L126729

SUPPORT

BRACKET - mounting, proximity switches

1шт.

8

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

425-106

NUT,3/8"-16, Cl 5

2шт.

11

L124649

COVER

- proximity switches, no longer available, order Ll126730

1шт.

12

L126730

COVER

- proximity switches

1шт.

13

49845

CLAMP

- harness, front

1шт.

14

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2-4шт.

15

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2-4шт.
