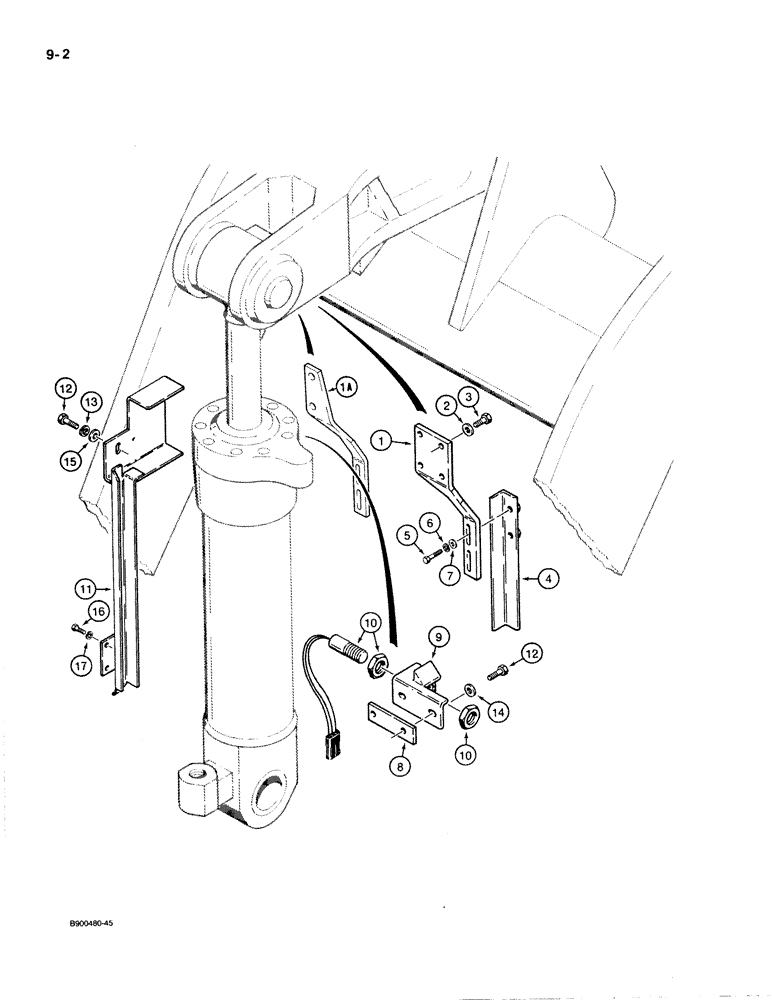

Запчасти Case 621 (9-002) - LOADER BUCKET RETURN-TO-DIG (09) - CHASSIS/ATTACHMENTS

1

L124609

SUPPORT

BRACKET - return-to-dig, if used

1шт.

1a

L128008

SUPPORT

BRACKET - return-to-dig, if used

1шт.

2

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2-4шт.

3

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2-4шт.

4

L124610

SUPPORT

BAR - sensing, return-to-dig

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", zinc plated

2шт.

6

492-11038

LOCK WASHER,3/8"

if used 3/8"

2шт.

7

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

2шт.

8

L123927

LARGE PLATE

PLATE - spacer, switch bracket to cylinder, if used

1шт.

9

L127284

SUPPORT

BRACKET - mounting, proximity switch

1шт.

10

A187552

SWITCH

- wiper arm, proximity, return to dig, includes nuts

1шт.

11

L127182

PROTECTOR

GUARD - harness, return-to-dig

1шт.

12

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex head, 1/2" - 13 NC x 1-1/4", zinc plated

3шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

15

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

1шт.

16

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.
