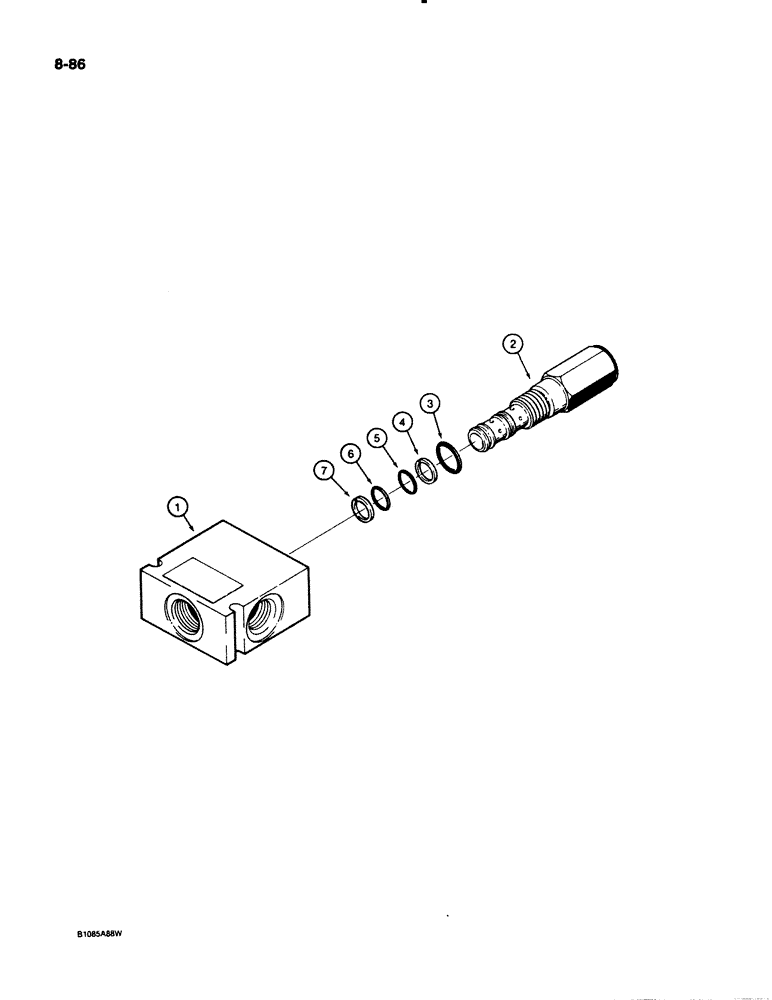

Запчасти Case 621 (8-86) - PRESSURE REDUCING VALVE, L101927 (08) - HYDRAULICS

L101927

VALVE

ASSEMBLY - pressure reducing

1шт.

1

N6523

BODY

- valve

1шт.

N6524

VALVE

RELIEF ASSEMBLY - pressure reducing

1шт.

2

NSS

NOT SOLD SEPARAT

CARTRIDGE - relief assembly

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- outer

1шт.

4

L30012

RING

- backup, middle

1шт.

5

A65918

O-RING,0.551" ID x 0.691" OD

- middle

1шт.

6

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- inner

1шт.

7

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup, inner

1шт.
