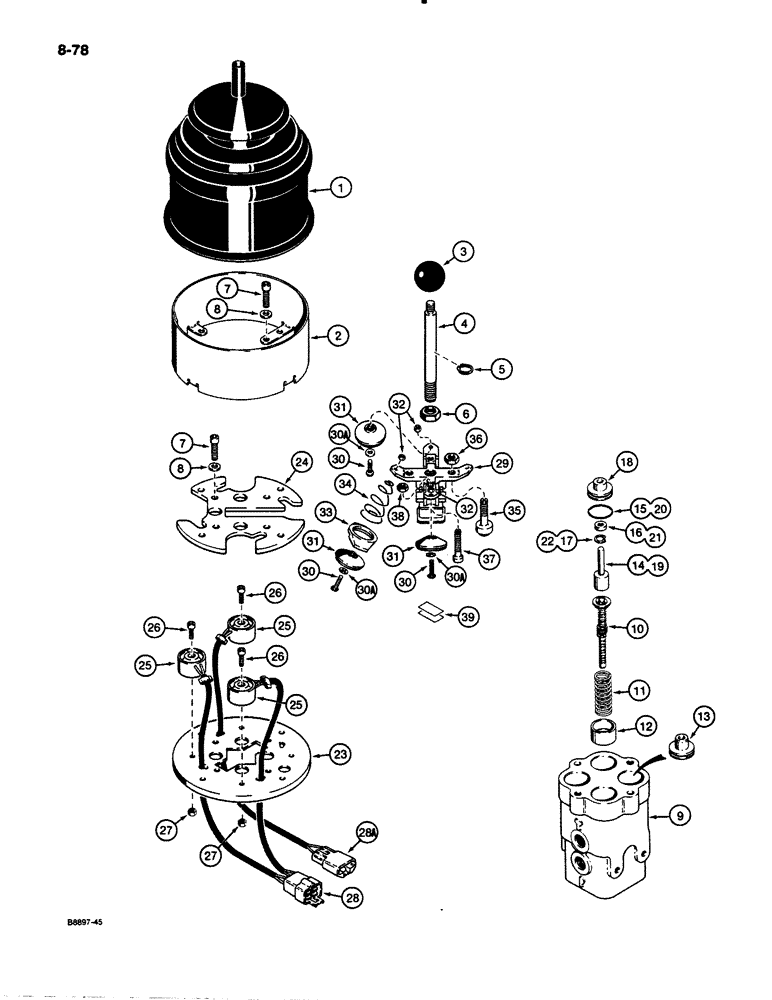

Запчасти Case 621 (8-78) - SINGLE LEVER REMOTE CONTROL VALVE, L116443 (08) - HYDRAULICS

L116443

VALVE

ASSEMBLY - control, remote, single lever, Includes: Ref. 1 - 39

1шт.

1

1341816C1

DUST CAP

BOOT - dust

1шт.

2

1971890C1

CLAMP

COLLAR - control valve

1шт.

3

1978187C1

BALL KNOB

KNOB - control lever

1шт.

4

1971888C1

LEVER

- control

1шт.

5

26593R1

SNAP RING,#50, Ext

Ring, Snap, , control lever #50, Ext

1шт.

6

429-108

NUT,1/2"-13, G8

- hex, 1/2" - 13 NC, grade 8, plated

1шт.

7

165-143

HEX SOC SCREW,1/4" - 20 x 3/4"

BOLT - hex socket head, 1/4" - 20 NC x 3/4", plated

4шт.

8

1978189C1

WASHER

- special, flat

4шт.

1971883C1

VALVE

ASSEMBLY - remote control, Includes: Ref. 9 - 38

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

1971884C1

SPOOL

ASSEMBLY - control valve, Includes: Ref. 10 - 12

4шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

11

1978191C1

SPRING

- spool

1шт.

12

1978192C1

RACE

SLEEVE - spool

1шт.

1971893C1

PLUNGER

ASSEMBLY - control valve, Includes: Ref. 13 - 17

1шт.

13

1978193C1

GUIDE

- valve, long stem

1шт.

14

1978194C1

PLUNGER

- valve

1шт.

Ref. (14) 1978194c1 should read N13694 (1.902" oal) 7/12/99 D.B.

1шт.

15

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk, Guide (Replaces 376769R1)

1шт.

16

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

- plunger

1шт.

17

109753A1

PLUNGER

RING - snap, plunger (Replaces A59973)

1шт.

1971885C1

PLUNGER

ASSEMBLY - control valve, Includes: Ref. 18 - 22

3шт.

18

1978195C1

GUIDE

- valve, short stem

1шт.

19

109765A1

PLUNGER

- valve (Replaces 1978194C1)

1шт.

20

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk, Guide (Replaces 376769R1)

1шт.

21

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

- plunger

1шт.

22

A59973

SNAP RING,0.50", Int, #50

Ring, Snap, , plunger 0.50", Int, #50

1шт.

23

1978196C1

LARGE PLATE

PLATE - plastic, lower

1шт.

24

1978197C1

LARGE PLATE

PLATE - metal, upper

1шт.

25

1971887C1

SOLENOID SWITCH

COIL - magnetic

3шт.

26

28243R1

HEX SOC SCREW,#10 - 24 x 1/2"

BOLT - hex socket head, No. 10 NC x 1/2 inch

3шт.

27

120361

NUT,Hex Mach Screw, #10 - 24

3шт.

28

1978198C1

CONNECTION

CONNECTOR - magnetic coil, with male terminal

1шт.

28a

1978225C1

CONNECTION

CONNECTOR - magnetic coil, with female terminal

1шт.

1971895C1

CAM

ARMATURE ASSEMBLY - control valve, Includes: Ref. 29 - 38

1шт.

29

1978199C1

CAM

PIVOT - armature

1шт.

30

182-87

SCREW,Slotted Pan Hd, #8-32 X 5/8"

- machine, round head, slotted, No. 8 NC x 5/8 inch

3шт.

30a

1978224C1

WASHER

- special, disc alignment

3шт.

31

1978200C1

LARGE PLATE

DISC - armature

3шт.

32

115998

NUT,#8-32

NUT, #8-32

3шт.

33

1978201C1

EXTENSION

COLLAR - armature

1шт.

34

1978202C1

SPRING

- armature

1шт.

35

1978203C1

SCREW

ACTUATOR - spool, large

2шт.

36

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

37

1978204C1

SCREW

ACTUATOR - spool, small

2шт.

38

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

39

1978205C1

SHIM

- armature assembly

1шт.

REF 11 AND 12 ARE NOT INCLUDED WITH SPOOL ASSY

1шт.
