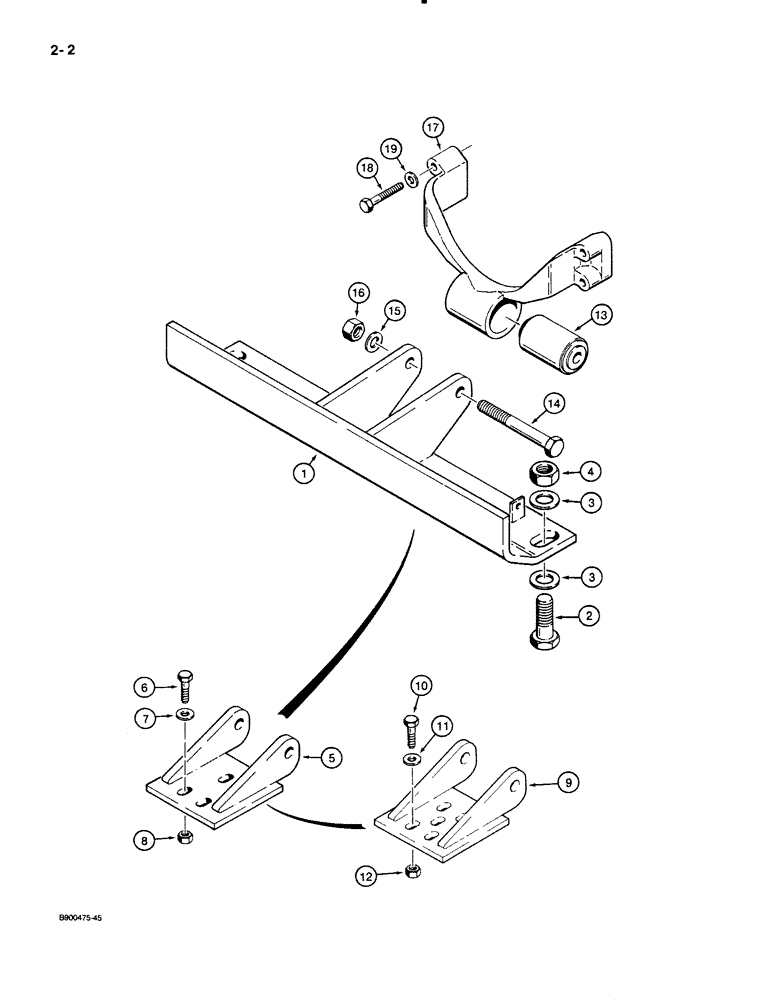

Запчасти Case 621 (2-02) - ENGINE MOUNT AND RELATED PARTS (02) - ENGINE

1

L118996

MOUNTING PARTS

MOUNT - engine, prior to P.I.N. JAK0020901

1шт.

2

26-1644

BOLT,Hex, 1" - 8 x 2-3/4", Gr 8

- hex, 1 NC x 2-3/4 inch, grade 8, prior to P.I.N. JAK0020901

2шт.

3

A139817

WASHER

- special, hardened, prior to P.I.N. JAK0020901

4шт.

4

329-1016

NUT,1"-8, G8

Prior to P.I.N. JAK0020901 1"-8, G8

2шт.

5

L127056

SUPPORT

MOUNT - engine, P.I.N. JAK0020901 through JAK0021336

1шт.

6

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

P.I.N. JAK0020901 through JAK0021336 Hex, 1/2"-13 x 1 3/4", G5

3шт.

7

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, P.I.N. JAK0020901 through JAK0021336

3шт.

8

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC, P.I.N. JAK0020901 through JAK0021336

3шт.

9

L128273

SUPPORT

MOUNT - engine, P.I.N. JAK0021337 and after

1шт.

10

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

P.I.N. JAK0021337 and after Hex, 1/2"-13 x 1 3/4", G5

4шт.

11

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, P.I.N. JAK0021337 and after

4шт.

12

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC, P.I>N. JAK0021337 and after

4шт.

13

L124020

SHOCK ABSORBER

SPACER - phosphate coated, engine mount to support, common parts

1шт.

14

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex head, 3/4" - 10 NC x 6", zinc plated, common parts

1шт.

15

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened, common parts

1шт.

16

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC, common parts

1шт.

17

J914373

SUPPORT

- engine, common parts

1шт.

18

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

- hex head, 12 mm - 1.75 x 70 mm, zinc plated, common parts

4шт.

19

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened, plated, common parts

4шт.
