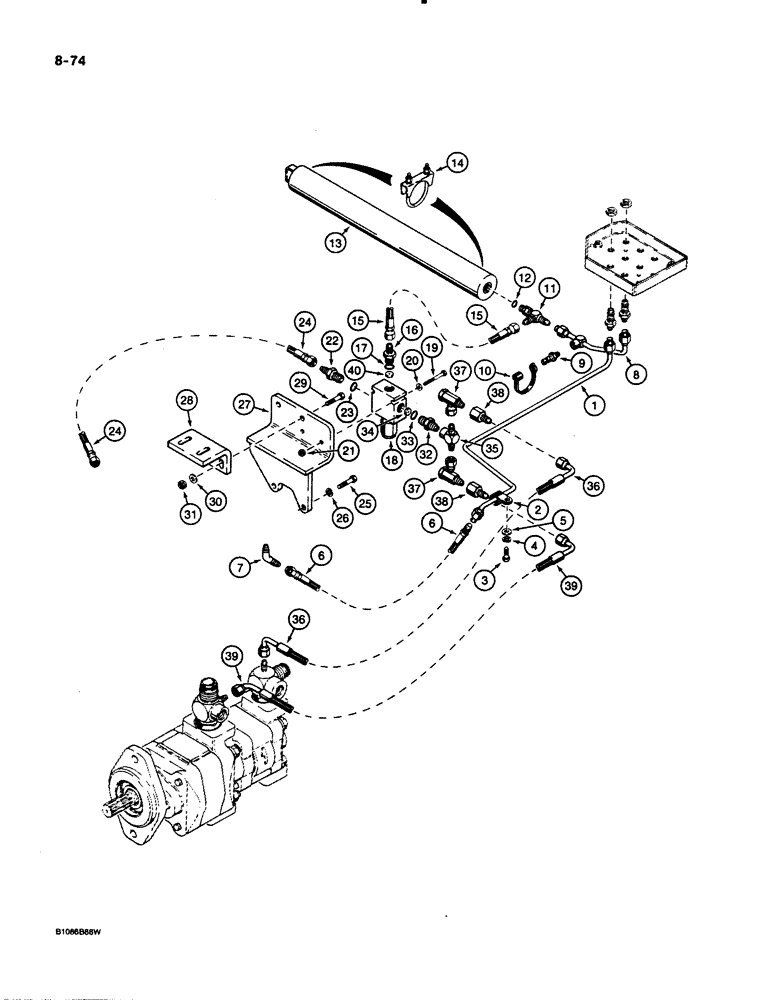

Запчасти Case 621 (8-74) - REMOTE LOADER CONTROL CIRCUIT, RETURN TO HYDRAULIC RESERVOIR AND PRESSURE REDUCING VALVE (08) - HYDRAULICS

1

L126571

PIPE,9.52 mm OD

TUBE - hose separator to hose at hydraulic reservoir

1шт.

2

49845

CLAMP

- tube

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", zinc plated

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

495-21044

WASHER,3/8"

1шт.

6

L124336

HOSE

- 23-5/8" (600 mm) long, tube to hydraulic reservoir

1шт.

7

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

male 45º, 9/16-18" 37º x 1/4"-18, NPTF

1шт.

8

L126860

TUBE

- hose, Serial Range: separator-accumulator

1шт.

9

H434164

COUPLING

- quick disconnect

1шт.

10

H434163

DUST CAP

CAP - dust

1шт.

11

L124527

TEE

- special, at accumulator

1шт.

13

L118361

ACCUMULATOR

- hydraulic, parts list Figure 8-84

1шт.

14

A13240

CLAMP,2-5/8" ID

- accumulator, includes hardware

2шт.

15

D90809

HOSE

- 15-3/4" (400 mm) long, tee at accumulator to pressure reducing valve

1шт.

16

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

18

L101927

VALVE

- pressure reducing, parts list Figure 8-86

1шт.

19

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

20

495-21031

WASHER,1/4"

- flat, , zinc plated 1/4"

2шт.

21

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

22

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

24

L126492

HOSE ASSY.

HOSE - 18" (457 mm) long, pressure reducing valve to return tube at flow control valve

1шт.

25

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

- hex head, 7/16" - 14 NC x 1-1/2", zinc plated

2шт.

26

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

27

L126350

BRACKET

- mounting, pressure reducing valve, lower

1шт.

28

L126347

BRACKET

- mounting, pressure reducing valve, upper, if used, replaced with L127271 on models with standard steering, see Figure 5-6

1шт.

29

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2", zinc plated

2шт.

30

495-21044

WASHER,3/8"

2шт.

31

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

32

218-5440

FITTING

ADAPTER - straight

1шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

34

L116330

DOOR STAY

ORIFICE - flow restrictor

1шт.

35

L127924

FITTING

TEE - special, pressure fitting

1шт.

36

L126491

HOSE ASSY.

HOSE - 13" (330 mm) long, pressure reducing valve to fitting at steering pump

1шт.

37

L59038

LOCK VALVE

VALVE - check, at pressure reducing valve

2шт.

38

218-1032

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, Fem Pipe

ADAPTER - straight

2шт.

39

L126493

HOSE ASSY.

HOSE - 18" (457 mm) long, pressure reducing valve to tee at equipment and steering pump

1шт.

40

L116330

DOOR STAY

ORIFICE - check valve

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Tee

1шт.
