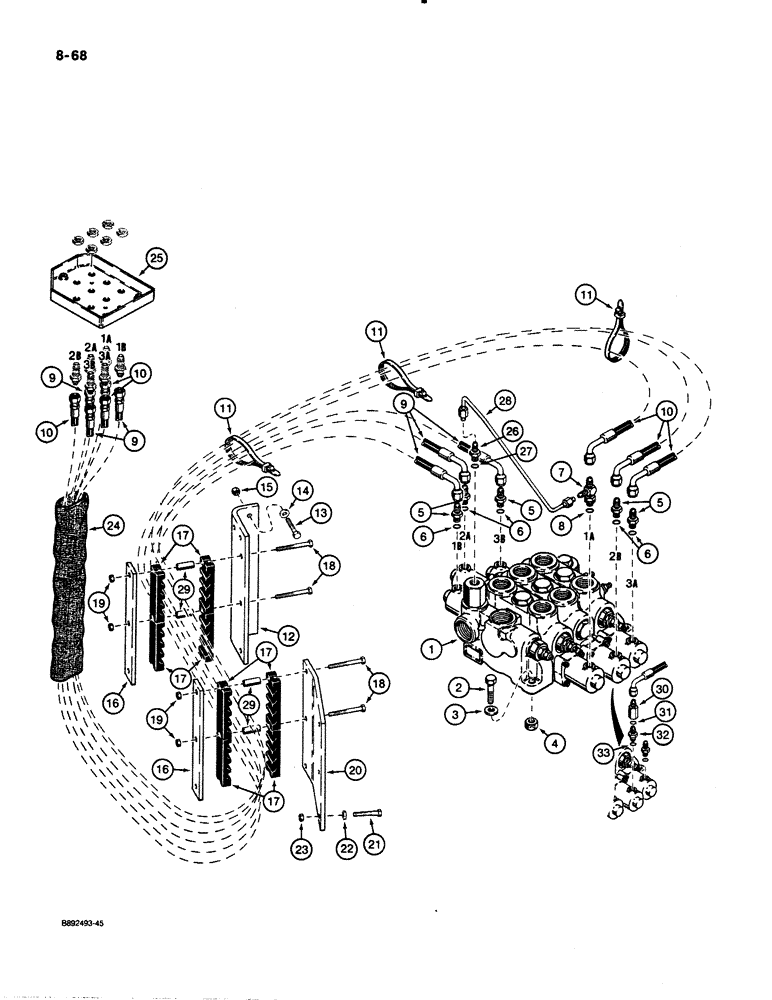

Запчасти Case 621 (8-68) - REMOTE LOADER CONTROL CIRCUIT, HOSE SEPARATOR TO THREE SPOOL VALVE (08) - HYDRAULICS

1

L123678

VALVE

ASSEMBLY - control, loader, parts list Figure 8-26

1шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

495-21056

WASHER,1/2"

- flat, , zinc plated 1/2"

3шт.

4

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

3шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, at ports 1B, 2A, 3A, and 3B and at port 2B on models prior to P.I.N. JAK0020901

4-5шт.

7

L124527

TEE

- special, at port 1A

1шт.

9

L124308

HOSE,9.53mm ID x 2210mm L, SAE 100R3

- 87" (2210 mm) long, hose separator to ports 1B, 2A, and 3B

3шт.

10

L124310

HOSE

- 126" (3200 mm) long, hose separator to ports 1A, 2B, and 3A

3шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

12

L119088

SUPPORT

BRACKET - hose mounting, bolts to front chassis

1шт.

13

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch, zinc plated

3шт.

14

495-21044

WASHER,3/8"

3шт.

15

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

3шт.

16

L127357

LARGE PLATE

PLATE - mounting, bracket

2шт.

17

L124271

FIXING BRACKET

CLAMP - rubber, hose retaining

8шт.

18

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex head, 3/8"-16 NC x 2-3/4", zinc plated

6шт.

19

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

6шт.

20

L119085

SUPPORT

BRACKET - hose mounting, bolts to rear frame

1шт.

21

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch, zinc plated

3шт.

22

495-21044

WASHER,3/8"

3шт.

23

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

3шт.

24

S120426

TUBE

GUARD - hose protector

1шт.

25

1339969C1

LARGE PLATE

SEPARATOR - hose, loader control

1шт.

26

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ADAPTER - straight

1шт.

28

L119259

TUBE ASSY.,6.35 mm OD x 286, 84 mm L

TUBE - inlet and outlet section to tee at port 1A

1шт.

29

L126936

SPACER

- special, hose clamp

6шт.

L110143

VALVE

- check, loader lift, at port 2B on models with P.I.N. JAK0020901 and after

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

32

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Tee

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

33

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
