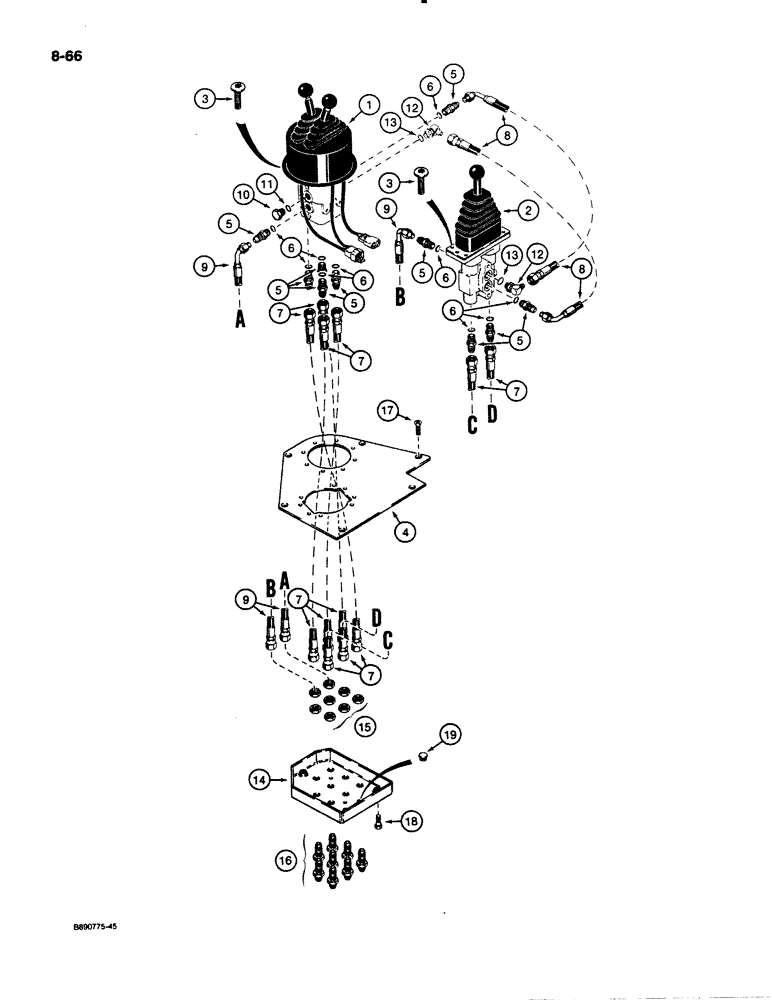

Запчасти Case 621 (8-66) - REMOTE LOADER CONTROL CIRCUIT, THREE LEVERS WITH THREE SPOOL VALVE (08) - HYDRAULICS

1

L118040

VALVE

ASSEMBLY - control, remote, dual lever, parts list Figure 8-80

1шт.

2

L123917

VALVE

ASSEMBLY - auxiliary control, remote, single lever, parts list Figure 8-82

1шт.

3

140-114

SCREW,Cross Pan Hd, 1/4" - 20 x 1"

Cross Pan Hd, 1/4"-20 NC x 1"

8шт.

4

1339947C1

LARGE PLATE

PLATE - mounting, remote controls

1шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

10шт.

7

1339965C1

HOSE,9.53mm ID x 419.1mm L, SAE 100R1

- 419 mm long, remote controls to loader control valve

6шт.

8

1339963C1

HOSE ASSY.

HOSE - 305 mm long, auxiliary remote control to dual lever remote control

2шт.

9

1339964C1

HOSE,9.53mm ID x 501.7mm L, SAE 100R1

- 502 mm long, adapter at remote controls to pressure reducing valve

2шт.

10

76349

PLUG,9/16" - 18 ORB

1шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adj, 9/16-18 inch flare x O-ring boss

2шт.

14

1339969C1

LARGE PLATE

SEPARATOR - hose, loader control

1шт.

15

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT, LOCK, Blkhd, 9/16"-18

8шт.

16

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

8шт.

17

43-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

- machine, flat head Phillips, 1/4 NC x 3/4 inch

6шт.

18

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

3шт.

19

353-406

PLUG,Dome, .625" hole, Nylon

- nylon, 5/8 inch

2шт.

20

1977320C1

DECAL

- loader control, shown on Figure 9-100, item 18

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
