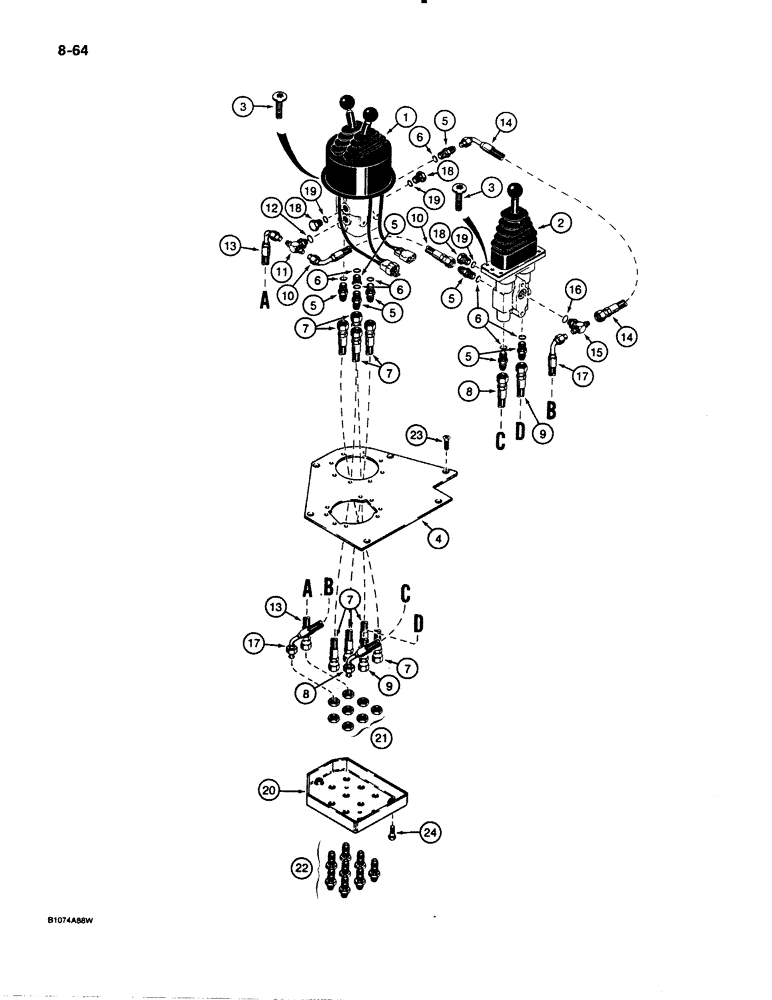

Запчасти Case 621 (8-64) - REMOTE LOADER CONTROL CIRCUIT, THREE LEVERS WITH THREE SPOOL VALVE (08) - HYDRAULICS

1

L118040

VALVE

ASSEMBLY - control, remote, dual lever, parts list Figure 8-80

1шт.

2

L123917

VALVE

ASSEMBLY - auxiliary control, remote, single lever, parts list Figure 8-82

1шт.

3

1339974C1

SCREW,Torx, 1/4" - 20 x 1", Gr 5

BOLT - special, valve to mounting plate

8шт.

4

1339947C1

LARGE PLATE

PLATE - mounting, remote controls

1шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight

8шт.

7

1339965C1

HOSE,9.53mm ID x 419.1mm L, SAE 100R1

- 16-1/2" (419 mm) long, remote control to loader control valve

4шт.

8

1339968C1

HOSE ASSY.

HOSE - 16-3/4" (425 mm) long, auxiliary remote control to loader control valve, no longer available, order item 7, 1339965C1

1шт.

9

1339966C1

HOSE ASSY.

HOSE - 17" (432 mm) long, auxiliary remote control to loader control valve, no longer avilable, order item 7, 1339965C1

1шт.

10

1339962C1

HOSE,9.53mm ID x 254mm L, SAE 100R1

- 10" (254 mm) long, auxiliary remote control to tee at dual lever remote control

1шт.

11

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, at dual lever remote control

1шт.

13

1339964C1

HOSE,9.53mm ID x 501.7mm L, SAE 100R1

- 19-7/8" (502 mm) long, tee at dual lever remote control to pressure reducing valve

1шт.

14

1339962C1

HOSE,9.53mm ID x 254mm L, SAE 100R1

- 10" (254 mm) long, dual lever remote control to tee at auxiliary remote control

1шт.

15

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, at auxiliary remote control

1шт.

17

1339967C1

HOSE ASSY.

HOSE - 22-1/2" (572 mm) long, tee at auxiliary remote control to hydraulic reservoir, no longer available, order item 13, 1339964C1

1шт.

18

76349

PLUG,9/16" - 18 ORB

3шт.

20

1339969C1

LARGE PLATE

SEPARATOR - hose, loader control

1шт.

21

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT, LOCK, Blkhd, 9/16"-18

8шт.

22

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

8шт.

23

171-208

SCREW,Cross Flat Hd, 1/4" - 20 x 3/4"

- machine, flat head Phillips, 1/4" - 20 NC x 3/4"

6шт.

24

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

25

1977320C1

DECAL

- loader control, shown on Figure 9-98, item 18

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Connector

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Tee

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Tee

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Plug

1шт.
