(8-55A) - LOADER AUXILIARY CYLINDER, S301479

Запчасти Case 621 (8-55A) - LOADER AUXILIARY CYLINDER, S301479 (08) - HYDRAULICS

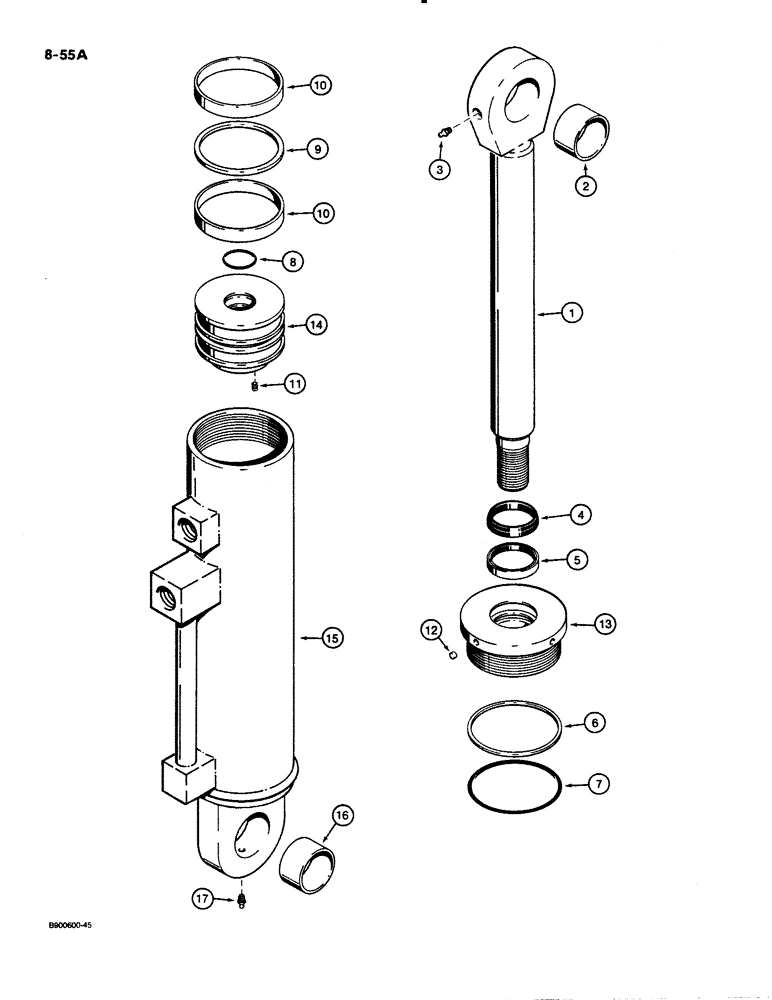

Схема запчастей Case 621 - (8-55A) - LOADER AUXILIARY CYLINDER, S301479 (08) - HYDRAULICS
5
4
6
12
11
8
17
10
9
1
13
14
10
7
3
16
15
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

S301479

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4" (102 mm) ID x 10" (254 mm) stroke, auxiliary

2шт.

1

S301440

PISTON ROD

ROD ASSEMBLY - cylinder

1шт.

2

S300154

BUSHING

- rod

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8 inch PT

1шт.

S301442

SEAL KIT

KIT- SEAL

1шт.

4

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup, gland, outer

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - gland, outer

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING -, Serial Range: rod-piston

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

10

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

11

NSS

NOT SOLD SEPARAT

SCREW - set, piston retaining

1шт.

12

NSS

NOT SOLD SEPARAT

PIN - 1/4 x 3/16 inch long, thread locking, gland

1шт.

13

S301441

GLAND

- cylinder

1шт.

14

S301438

PISTON

- cylinder

1шт.

15

S301480

HYD CYL SLEEVE

TUBE - cylinder

1шт.

16

S300154

BUSHING

- tube

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8 inch PT

1шт.
