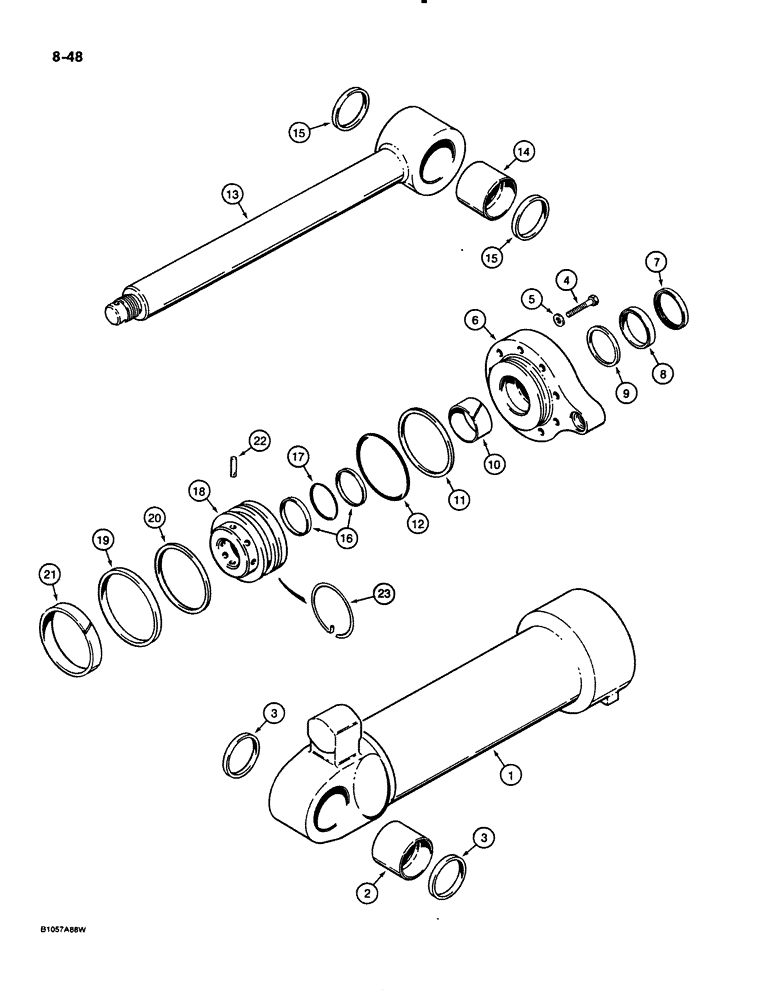

Запчасти Case 621 (8-48) - BUCKET CYLINDER, G110312, PRIOR TO P.I.N. JAK0020286 (08) - HYDRAULICS

G110312

CYLINDER ASSY.

CYLINDER ASSEMBLY - 6" (152 mm) ID x 21-7/16" (544 mm) stroke, bucket, prior to P.I.N. JAK0020286, no longer available, order 1980354C1, see parts list Figure 8-50

1шт.

1

G110313

TUBE,152.4 mm ID x 800.7 mm L

- cylinder

1шт.

2

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

- tube

1шт.

3

L104363

WIPER SEAL

- tube eye

2шт.

4

28-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 8

- hex head, 9/16" - 18 NF x 2-3/4", grade 8

9шт.

5

G110688

WASHER

- flat, 5/8", hardened

9шт.

G110527

BEARING

GLAND ASSEMBLY - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

7

D95148

WIPER SEAL

WIPER - piston rod

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110526

1шт.

8

G109054

SEAL,76.15mm ID x 88.95mm OD x 10.69mm Thk

- U-cup, piston rod

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110526

1шт.

9

G109015

SEAL,75.69mm ID x 91.82mm OD x 4.9mm Thk

- buffer

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110526

1шт.

10

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

-, Serial Range: gland-rod

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110526

1шт.

11

G109034

BACK-UP RING,135.94mm ID x 145.08mm OD x 1.93mm Thk

BACKUP-RING - Gland O-ring

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110526

1шт.

12

G105183

O-RING,0.188" Thk x 5.375" ID, -356, Cl 5, 75 Duro

- gland seal

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110526

1шт.

13

G110631

ROD ASSY.

ROD - 3" (76 mm) diameter, no longer available, order L36321, see parts list Figure 8-50

1шт.

14

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

- rod eye

1шт.

15

L104363

WIPER SEAL

- rod eye

2шт.

16

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, seal, Serial Range: piston-rod

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110526

1шт.

17

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- piston to rod

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110526

1шт.

18

G110329

PISTON

- rod, no longer available, order L36321, see parts list Figure 8-50

1шт.

19

G110330

SEALING RING

SEALRING -, Serial Range: Piston-tube

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110526

1шт.

20

G110331

SEALING RING,Square, 6.86mm Thk x 132.46mm ID

SEALRING - Backup, Piston seal

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110526

1шт.

21

G110332

WEAR RING,146.04mm ID x 152.4mm OD x 38.1mm Thk

BUSHING -, Serial Range: piston-tube

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110526

1шт.

22

G106602

LOCK PIN

PIN - locking, Serial Range: piston-rod

1шт.

23

G110333

CIRCLIP

RING - retaining, locking pin

1шт.

G110526

SEAL PACKAGE

KIT - seal, Includes Refs. 7, 8, ,9 10, 11, 12, 16, 17, 19, 20 and 21

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.
