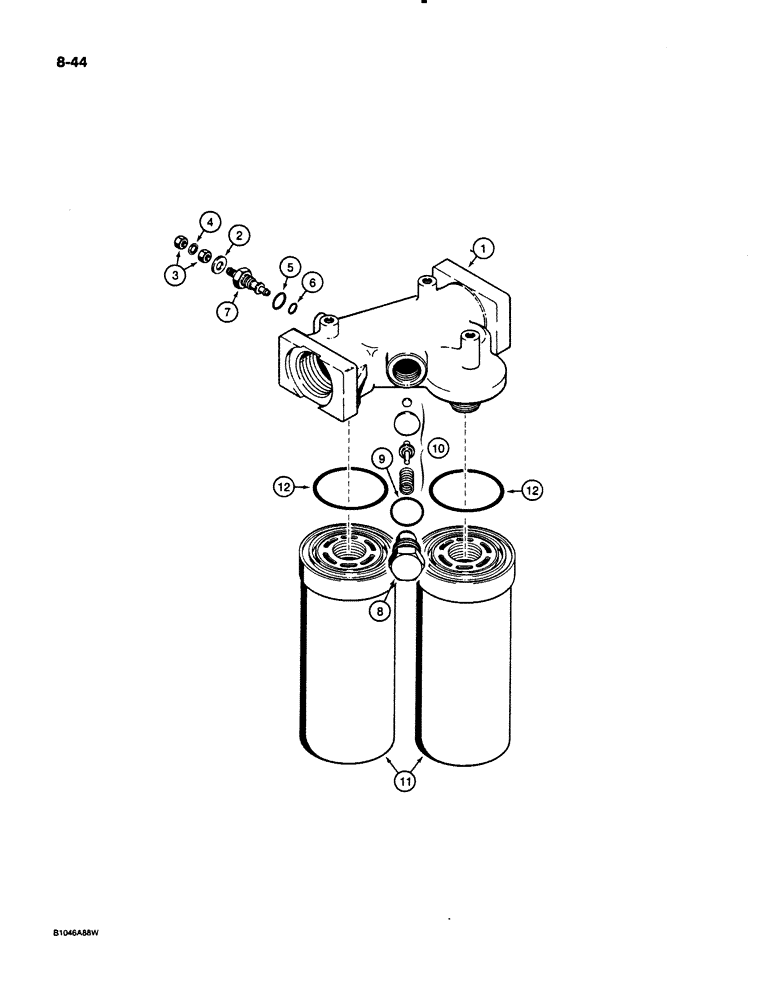

Запчасти Case 621 (8-44) - HYDRAULIC OIL FILTER, L126373 (08) - HYDRAULICS

L126373

FILTER ASSY

FILTER ASSEMBLY - hydraulic oil

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

N13268

PRESSURE SWITCH

INDICATOR ASSEMBLY - restriction, electrical

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER - identification, red-white color

1шт.

3

129-667

NUT,#10-32, LH

2шт.

4

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

6

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Inner, small

1шт.

7

NSS

NOT SOLD SEPARAT

INDICATOR - restriction, order N13268 assembly

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG - hex head, bypass valve retaining

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE - bypass, 50 psi, order L126373 filter assembly

1шт.

N9025

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY - filter

2шт.

11

NSS

NOT SOLD SEPARAT

ELEMENT - filter, order N9025 element assembly

1шт.

12

70923815

O-RING,-230, 70 Duro, 2.484" ID x .139" Thk

- element

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
