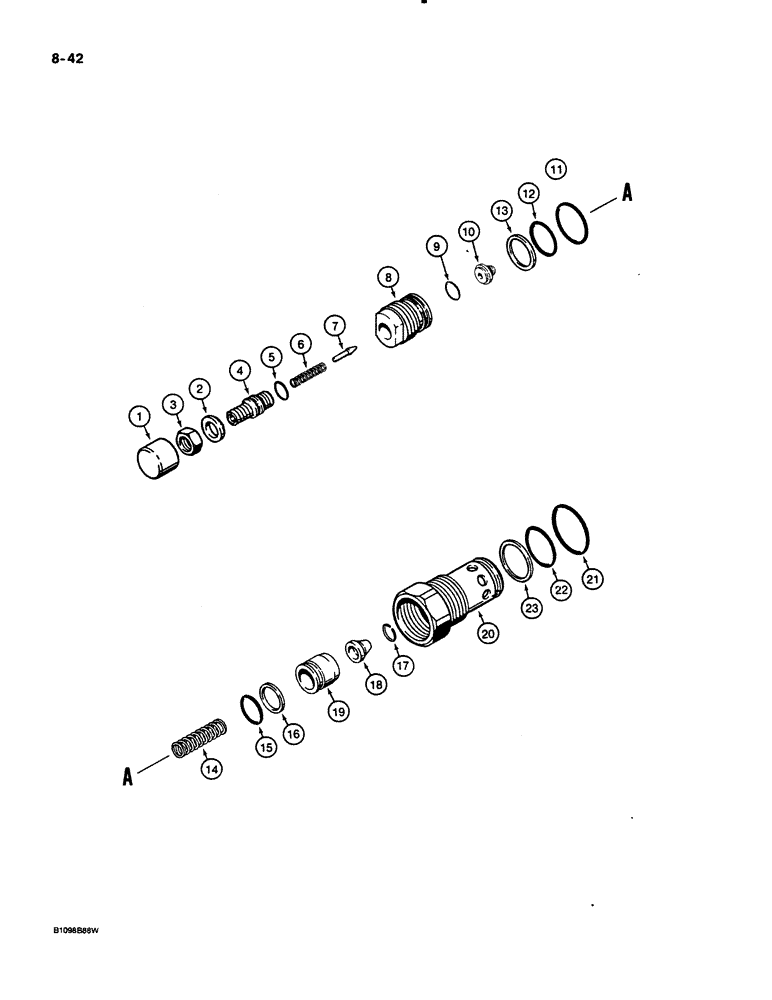

Запчасти Case 621 (8-42) - CIRCUIT RELIEF VALVE, 1978297C1 (08) - HYDRAULICS

1978297C1

VALVE

ASSEMBLY - circuit relief, loader control valve

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - tamper proof

1шт.

2

1978295C1

WASHER

- special

1шт.

3

25934R1

JAM NUT,Jam, 3/8"-24, G8

- jam, hex, 3/8" - 24 NF

1шт.

4

N9463

ADJUSTMENT SCREW

- adjusting

1шт.

5

355967R1

O-RING,0.364" ID x 0.003" Width

- adjustment screw

1шт.

6

N9465

SPRING

- plunger

1шт.

7

N9464

PLUNGER

- relief valve

1шт.

8

N9769

BODY

- pilot plunger

1шт.

9

355967R1

O-RING,0.364" ID x 0.003" Width

0-RING - pilot seat

1шт.

10

1978269C1

SEAT

- pilot

1шт.

11

364840R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

- body, large

1шт.

12

A55911

O-RING,0.807" ID

- body, small

1шт.

13

N9768

BACK-UP RING,0.831mm ID x 0.939mm OD x 0.052mm

RING - backup, O-ring

1шт.

14

1978301C1

SPRING

- poppet

1шт.

15

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

- poppet

1шт.

16

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

- backup, poppet O-ring

1шт.

17

N9473

RING, SNAP

RING - retaining, screen

1шт.

18

1978300C1

FILTER

SCREEN - poppet

1шт.

19

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

21

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- large, valve body

1шт.

22

376769R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- small, valve body

1шт.

23

1978265C1

BACK-UP RING

RING - backup, small O-ring

1шт.
