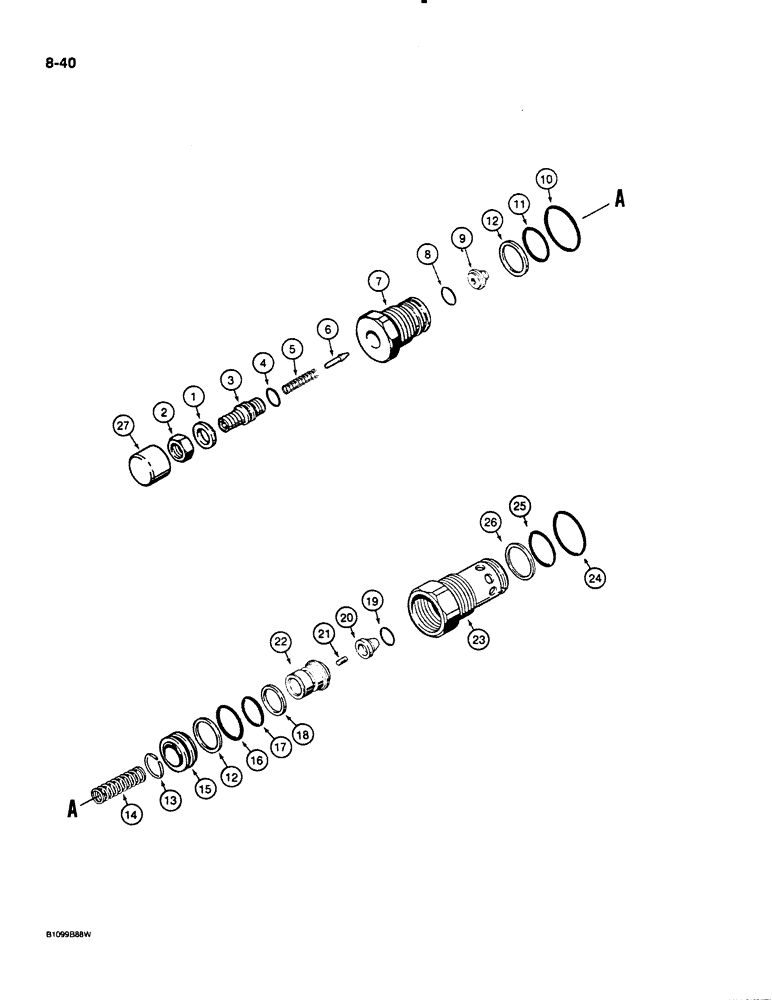

Запчасти Case 621 (8-40) - CIRCUIT RELIEF AND ANTICAVITATION VALVE, 1978293C1 (08) - HYDRAULICS

1978293C1

VALVE

ASSEMBLY - circuit relief and anticavitation, loader control valve

1шт.

1

1978295C1

WASHER

- special

1шт.

2

25934R1

JAM NUT,Jam, 3/8"-24, G8

- jam, hex, 3/8" - 24 NF

1шт.

3

N9463

ADJUSTMENT SCREW

- adjusting

1шт.

4

355967R1

O-RING,0.364" ID x 0.003" Width

- adjustment screw

1шт.

5

N9465

SPRING

- plunger

1шт.

6

N9464

PLUNGER

- relief valve

1шт.

7

1978268C1

BODY

- pilot plunger

1шт.

8

355967R1

O-RING,0.364" ID x 0.003" Width

- pilot seat

1шт.

9

1978269C1

SEAT

- pilot

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Body

1шт.

11

364840R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

- body, small

1шт.

12

1978267C1

BACK-UP RING

RING -backup, O-ring

2шт.

13

1978270C1

RING, SNAP

RING - retaining, poppet sleeve

1шт.

14

1978266C1

VALVE SPRING

SPRING - poppet

1шт.

15

N9461

SPACER

SLEEVE - poppet

1шт.

16

364840R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

- sleeve

1шт.

17

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- poppet

1шт.

18

N9470

GASKET

RING - backup, poppet O-ring

1шт.

19

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

0-RING - filter

1шт.

20

1978272C1

FILTER

- relief

1шт.

21

28265R1

PIN,1/8" x 3/8", Coiled

filter 1/8" x 3/8", Coiled

1шт.

22

1978271C1

PISTON

POPPET - relief valve

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

24

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- large, valve body

1шт.

25

376769R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- small, valve body

1шт.

26

1978265C1

BACK-UP RING

RING - backup, small O-ring

1шт.

27

NSS

NOT SOLD SEPARAT

COVER - tamper proof

1шт.
