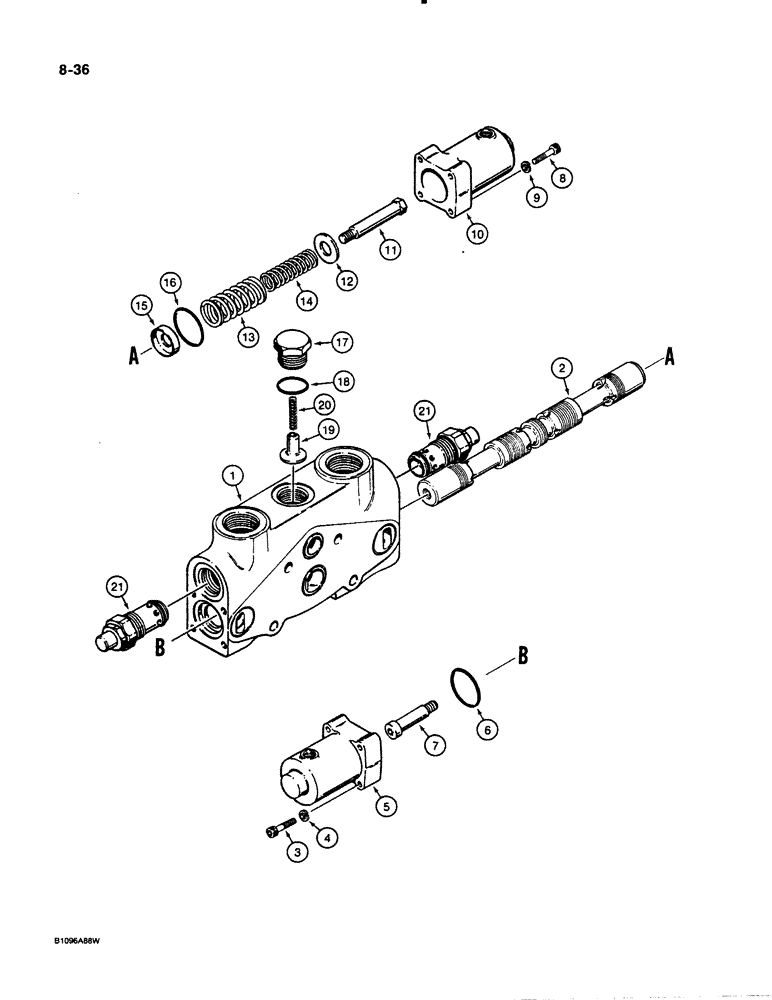

Запчасти Case 621 (8-36) - LOADER AUXILIARY SECTION, 1978280C1 (08) - HYDRAULICS

1978280C1

SECTOR

SECTION ASSEMBLY - loader auxiliary

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - bucket section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - bucket section

1шт.

3

25487R1

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 8

SCREW - hex socket head, 1/4" - 20 NC x 1-1/2"

4шт.

4

192-402

LOCK WASHER

WASHER - lock, 1/4", plated

4шт.

5

1978286C1

CAP

- spring

1шт.

6

375269R1

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- cap

1шт.

7

1978287C1

SCREW

BOLT - special, spool guide

1шт.

8

25487R1

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 8

SCREW - hex socket head, 1/4" - 20 NC x 1-1/2"

4шт.

9

192-402

LOCK WASHER

WASHER - lock, 1/4", plated

4шт.

10

1978286C1

CAP

- spring

1шт.

11

1978287C1

SCREW

BOLT - special, spool positioner

1шт.

12

495-21050

WASHER,7/16"

SPACER - spring retainer

1шт.

13

1978291C1

SPRING

- spool positioner, large

1шт.

14

1978290C1

SPRING

- spool positioner, small

1шт.

15

1978292C1

STOP

SPACER - spring

1шт.

16

375269R1

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- cap

1шт.

17

1978282C1

PLUG

- load check

1шт.

18

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- plug

1шт.

19

1978283C1

BLANK-OFF PLUG

POPPET - load check

1шт.

20

D28840

SPRING

- load check

1шт.

21

1978293C1

VALVE

ASSEMBLY - circuit relief and anticavitation, parts list Figure 8-40

2шт.
