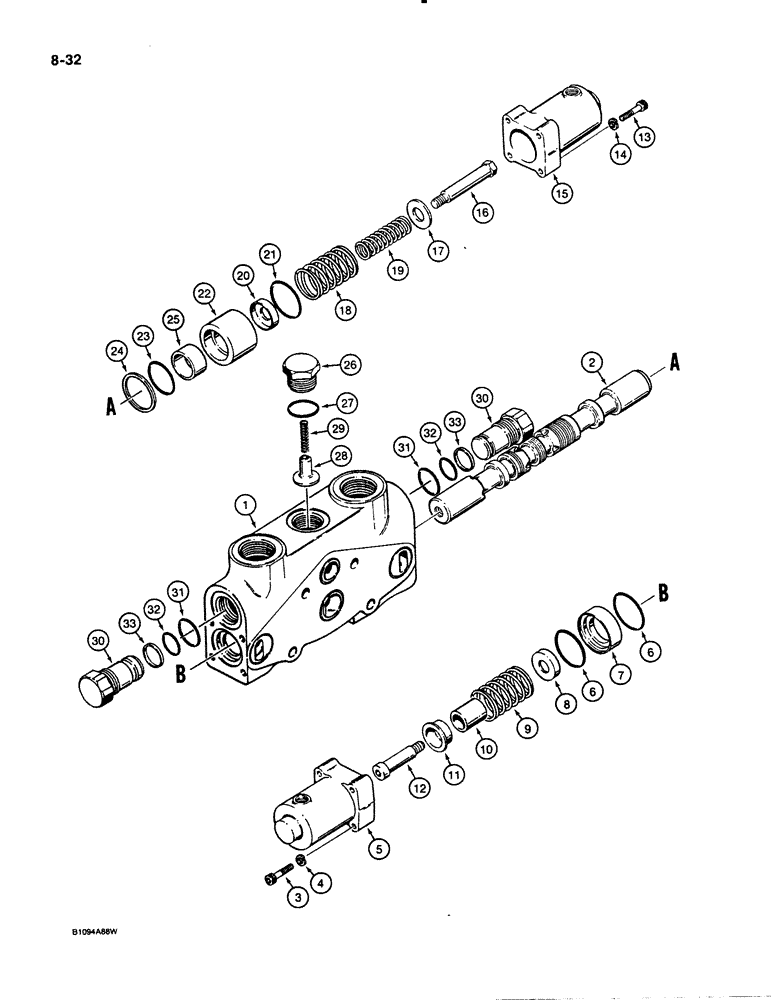

Запчасти Case 621 (8-32) - LOADER LIFT SECTION, 1978302C1 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1978302C1
VALVE
SECTION ASSEMBLY - lift
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - lift section
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL - lift section
1шт.
3
25491R1
BOLT,Hex, 1/4" - 20 x 2", Gr 8
SCREW - hex socket head, 1/4" - 20 NC x 2"
4шт.
4
192-402
LOCK WASHER
WASHER - lock, 1/4", plated
4шт.
5
1978286C1
CAP
- spring
1шт.
6
375269R1
O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro
- cap
2шт.
7
1978309C1
SPACER
- cap
1шт.
8
1978307C1
STOP
RETAINER - spring, inner
1шт.
9
1978306C1
SPRING
- spool positioner
1шт.
10
1978308C1
GUIDE
SLIDE - spool positioner
1шт.
11
1978305C1
SPRING SEAT
SEAT - spring, outer
1шт.
12
1978287C1
SCREW
BOLT - special, spool guide
1шт.
13
26285R1
BOLT,Hex, 1/4" - 20 x 3", Gr 8
SCREW - hex socket head, 1/4" - 20 NC x 3"
4шт.
14
192-402
LOCK WASHER
WASHER - lock, 1/4", plated
4шт.
15
1978286C1
CAP
- spring
1шт.
16
1978312C1
SCREW
BOLT - special, spool positioner
1шт.
17
495-21050
WASHER,7/16"
SPACER - spring retainer
1шт.
18
1978306C1
SPRING
- spool positioner, large
1шт.
19
1978313C1
SPRING
- spool positioner, small
1шт.
20
1978307C1
STOP
SPACER - spring
1шт.
21
375269R1
O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro
- cap
1шт.
22
1978315C1
SPACER
- cap
1шт.
24
1978317C1
SPACER
- seal
1шт.
25
1978316C1
SLEEVE
- cap spacer
1шт.
26
1978282C1
PLUG
- load check
1шт.
27
218-5009
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
- plug
1шт.
28
1978283C1
BLANK-OFF PLUG
POPPET - load check
1шт.
29
D28840
SPRING
- load check
1шт.
1978318C1
PLUG
ASSEMBLY - no relief
2шт.
30
NSS
NOT SOLD SEPARAT
PLUG - lift section
1шт.
31
218-5009
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
- plug, large
1шт.
32
376769R1
O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro
- plug, small
1шт.
33
1978299C1
BACK-UP RING
RING - backup, small O-ring
1шт.
Выбрано товаров: 35
