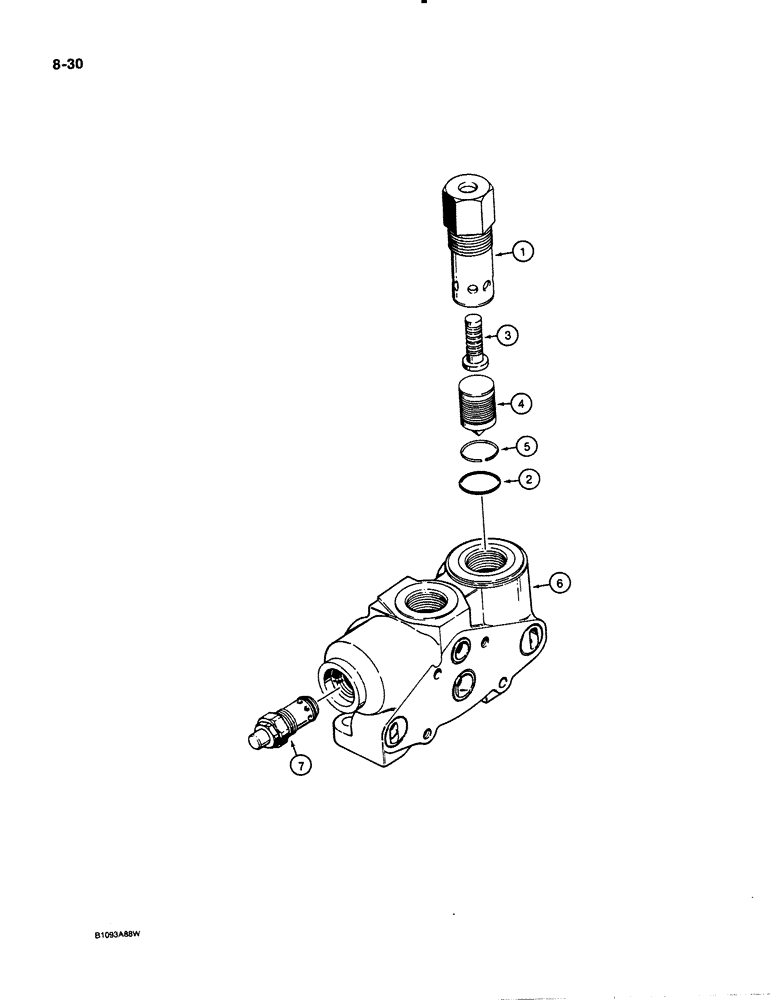

Запчасти Case 621 (8-30) - LOADER INLET AND OUTLET SECTION, 1978263C1 (08) - HYDRAULICS

1978263C1

VALVE

SECTION ASSEMBLY - inlet and outlet, loader control valve

1шт.

1978274C1

GOVERNOR

VALVE ASSEMBLY - low pressure regeneration

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- body

1шт.

3

1978275C1

PISTON

PLUNGER - valve

1шт.

4

1978277C1

PISTON

VALVE - low pressure regeneration

1шт.

5

1978276C1

RING, SNAP

RING - retaining, valve

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - inlet and outlet section

1шт.

7

1978264C1

VALVE

ASSEMBLY - main relief, parts list Figure 8-38

1шт.
