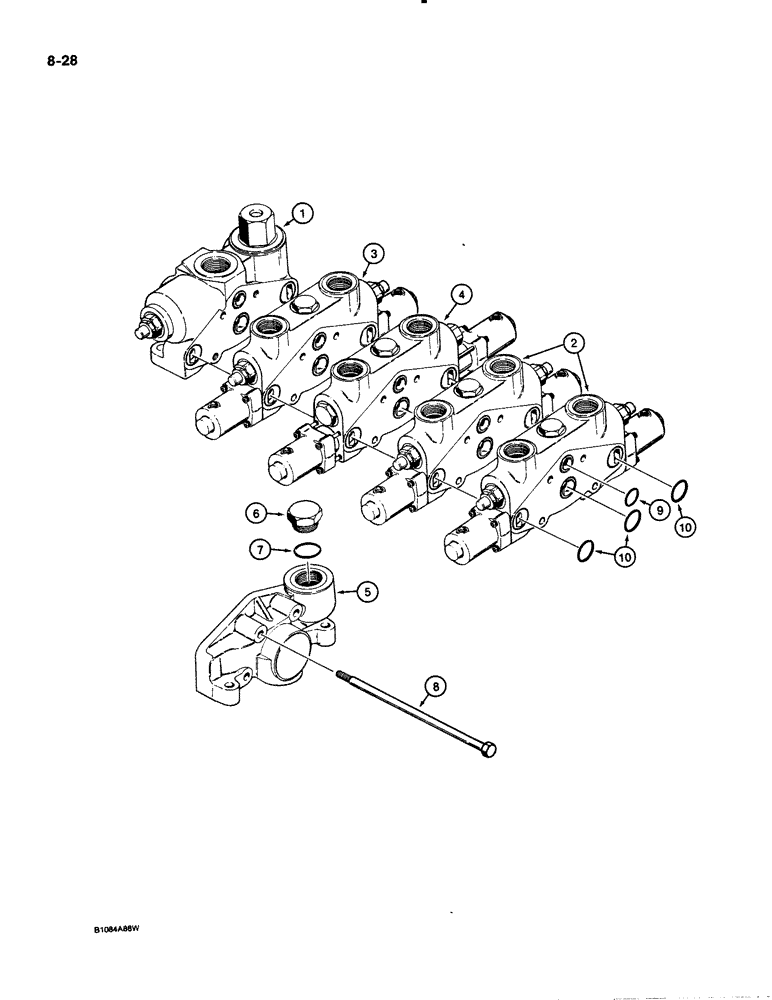

Запчасти Case 621 (8-28) - LOADER CONTROL VALVE, FOUR SPOOL (08) - HYDRAULICS

L123736

VALVE

ASSEMBLY - control, four spool

1шт.

1

1978263C1

VALVE

SECTION ASSEMBLY - inlet and outlet, parts list Figure 8-30

1шт.

2

1978280C1

SECTOR

SECTION ASSEMBLY - auxiliary, parts list Figure 8-36

2шт.

3

1978296C1

VALVE

SECTION ASSEMBLY - bucket, parts list Figure 8-34

1шт.

4

1978302C1

VALVE

SECTION ASSEMBLY - lift, parts list Figure 8-32

1шт.

5

1978278C1

SECTOR

PLATE - cover, end

1шт.

1978279C1

PLUG

ASSEMBLY - cover plate

1шт.

6

D54275

PLUG

- cover plate

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

8

1978321C1

TRUSS ROD,7/16" - 14 x 11 1/2"

BOLT - special, tie, control valve

4шт.

Ref #8 - (11.50" long) 04/19/96

1шт.

1978320C1

SEAL KIT

KIT - seal, control valve, between sections

1шт.

9

370943R1

O-RING,1.114" ID x 0.07" Width

- small

5шт.

10

370944R1

O-RING,0.07" Thk x 1.364" ID, -28, Cl 5, 75 Duro

- large

15шт.
