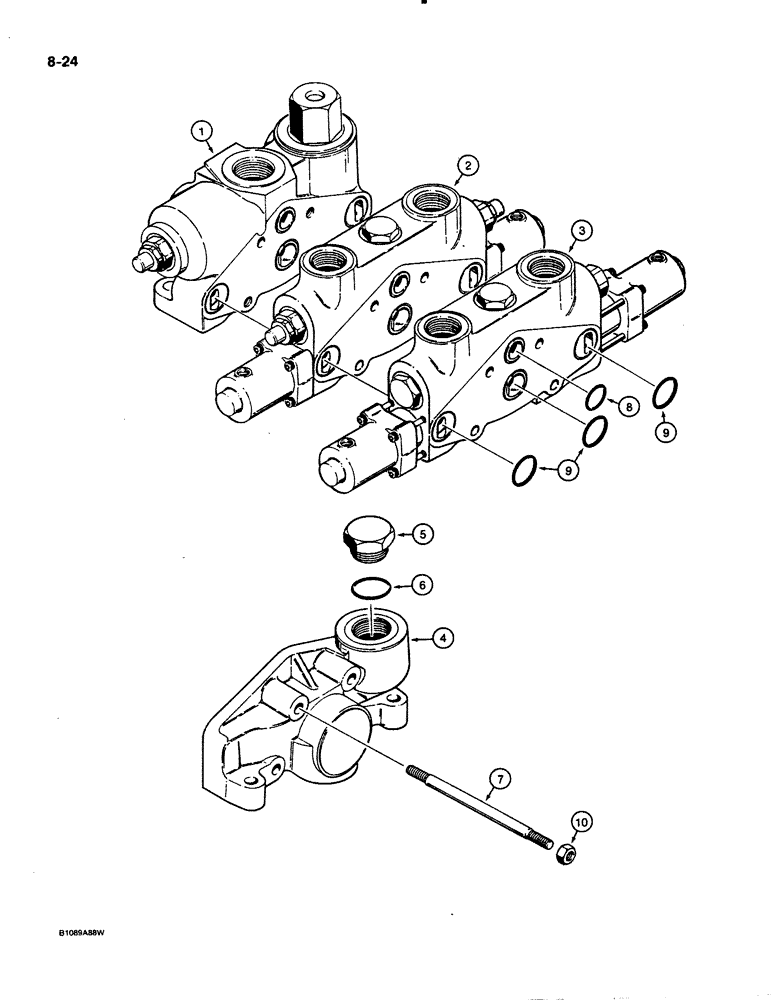

Запчасти Case 621 (8-24) - LOADER CONTROL VALVE, TWO SPOOL (08) - HYDRAULICS

L123735

VALVE

ASSEMBLY - control, two spool

1шт.

1

1978263C1

VALVE

SECTION - inlet and outlet, parts list Figure 8-30

1шт.

2

1978296C1

VALVE

SECTION - bucket, parts list Figure8-34

1шт.

3

1978302C1

VALVE

SECTION - lift, parts list Figure 8-32

1шт.

4

1978278C1

SECTOR

PLATE - cover, end

1шт.

1978279C1

PLUG

ASSEMBLY - plate, end cover

1шт.

5

D54275

PLUG

- plate, end cover

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plate, end cover

1шт.

7

1980218C1

STUD

- control valve

4шт.

1978320C1

SEAL KIT

KIT - seal, control valve, between sections

1шт.

8

370943R1

O-RING,1.114" ID x 0.07" Width

- small

3шт.

9

370944R1

O-RING,0.07" Thk x 1.364" ID, -28, Cl 5, 75 Duro

- large

9шт.

10

25524R1

NUT,7/16"-14, G8

- hex, 7/16" - 14 NC, grade 8, phosphate coated

4шт.
