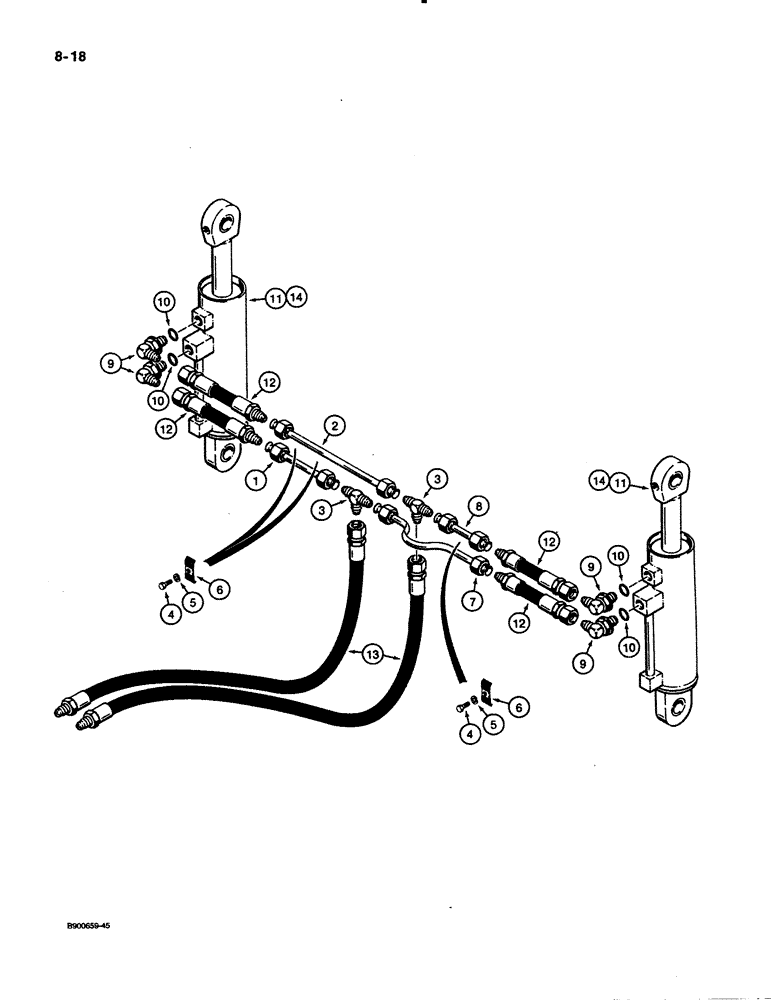

Запчасти Case 621 (8-18) - HYDRAULIC CIRCUIT, AUXILIARY CYLINDERS TO CLAM BUCKET (08) - HYDRAULICS

1

S300151

PIPE

TUBE - auxiliary cylinder hydraulics, lower left-hand

1шт.

2

S300150

PIPE

TUBE - auxiliary cylinder hydraulics, upper left-hand

1шт.

3

218-596

TEE,1 1/16"-12 37 Degree

- to auxiliary cylinders

2шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex head, 1/2 NC x 1-1/4 inch

3шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

6

S300148

FIXING BRACKET

CLAMP - tube support

3шт.

7

S300152

PIPE

TUBE - auxiliary cylinder hydraulics, lower right-hand

1шт.

8

S300147

PIPE

TUBE - auxiliary cylinder hydraulics, upper right-hand

1шт.

9

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, cylinder to hose

4шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

11

S300146

CYLINDER ASSY.

CYLINDER ASSEMBLY - auxiliary, cylinder gland is not threaded, parts list Figure 8-54, if used

2шт.

12

S300153

HOSE

- auxiliary cylinder

4шт.

13

S300149

HYDRAULIC HOSE

HOSE - auxiliary cylinder tee to tubes at loader arm cross tube

2шт.

14

S301479

CYLINDER ASSY.

CYLINDER ASSEMBLY - auxiliary, cylinder gland is threaded, parts list Figure 8-55A, if used

2шт.
