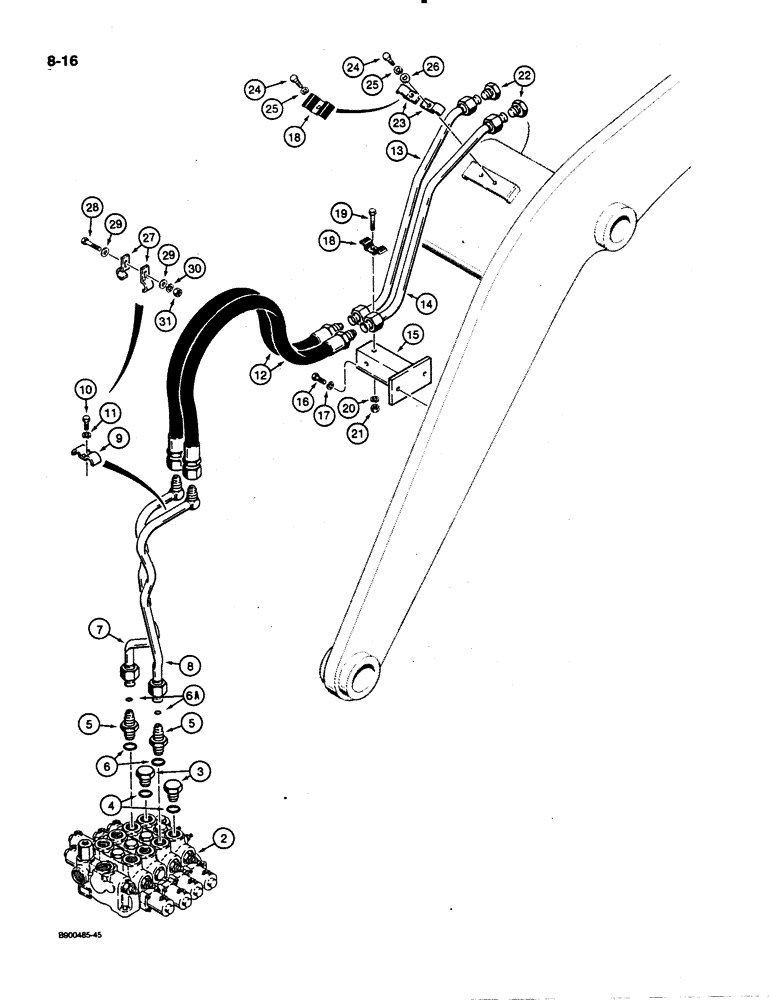

Запчасти Case 621 (8-16) - HYDRAULIC CIRCUIT, LOADER AUXILIARY, CONTROL VALVE TO CYLINDERS (08) - HYDRAULICS

1

L123678

VALVE

ASSEMBLY - control, three spool, not shown, parts list Figure 8-26, if used

1шт.

2

L123736

VALVE

ASSEMBLY - control, four spool, parts list Figure 8-28, if used

1шт.

3

273916

PLUG,Hex, 1-5/16" - 12 ORB

Use to plug ports of fourth valve section on units with a four spool valve Hex Hd, 1 5/16"-12 ORB

2шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.

5

L124291

FITTING

ADAPTER - special, Serial Range: valve-tubes

2шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide, boss end

1шт.

6a

G102086

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

- adapter, face seal end

1шт.

7

L126182

TUBE,25.4 mm OD

- left-hand, auxiliary section to hose

1шт.

8

L126180

TUBE,25.4 mm OD x 802, 248 mm L

- right-hand, auxiliary section to hose

1шт.

9

S87158

CLAMP

- tubes, if used

1шт.

10

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8"-16 NC x 2-1/2", zinc plated

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

L126184

HOSE,19.1mm ID x 1100mm L, SAE 100R12

- 43-5/16" (1100 mm) long, tube at loader valve to tube on lift arm

2шт.

13

L126486

PIPE,25.4 mm OD

TUBE - left-hand, at loader arm

1шт.

14

L126488

PIPE,25.4 mm OD

TUBE - right-hand, at loader arm

1шт.

15

L126511

SUPPORT

BRACKET - mounting, tubes

1шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", zinc plated

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

R15257

CLAMP

- tubes

1-2шт.

19

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch, zinc plated

1шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

218-779

PLUG,1 5/16"-12, 37 Degree

- hex head, 1-5/16" - 12, use when clam bucket is not attached to tractor

2шт.

23

L32065

CLAMP

- tube, bracket on loader arm cross-tube, if used

2шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1-2шт.

25

492-11038

LOCK WASHER,3/8"

1-2шт.

26

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened, if used

2шт.

27

L32065

CLAMP

- tubes

2шт.

28

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

29

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

2шт.

30

492-11038

LOCK WASHER,3/8"

1шт.

31

425-106

NUT,3/8"-16, Cl 5

1шт.
