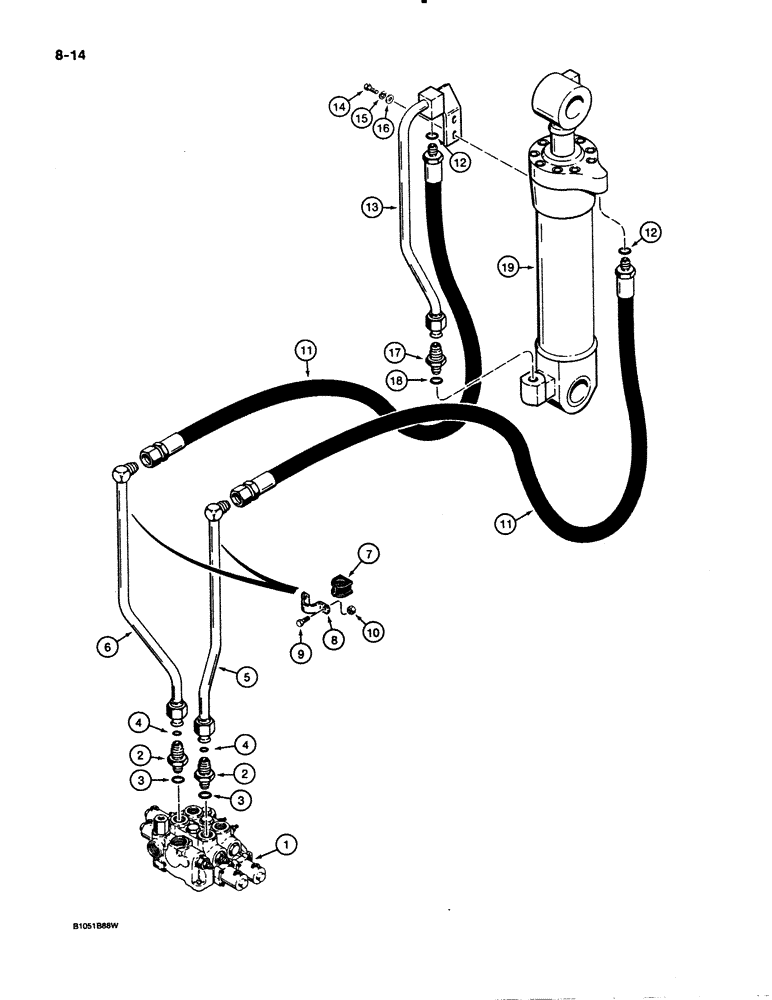

Запчасти Case 621 (8-14) - HYDRAULIC CIRCUIT, LOADER BUCKET (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, loader, see Figures 8-24 through 8-28 for correct valve assembly and components

1шт.

2

L124290

CONNECTOR, ELEC

CONNECTOR - special, Serial Range: valve-tubes

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide, boss end

1шт.

4

D51499

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

- adapter, face seal end

1шт.

5

L118810

TUBE,31.75 mm OD

- supply, right-hand

1шт.

6

L118808

TUBE,31.75 mm OD x 812, 222 mm L

- supply, left-hand

1шт.

7

D67298

INSULATOR

- tube

2шт.

8

L124293

MOUNTING CLIP

CLAMP - tube

2шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

10

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

4шт.

11

L124255

HOSE ASSY.,25.4mm ID x 1125mm L, SAE 100R12

HOSE - 44-1/8" (1125 mm) long, Serial Range: tube-cylinder

2шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- hose

1шт.

13

L118694

PIPE,31.75 mm OD

TUBE - bucket cylinder

1шт.

14

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex head, 1/2" - 13 NC x 1-1/4", zinc plated

2шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

16

495-21056

WASHER,1/2"

- flat, , zinc plated 1/2"

2шт.

17

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

19

REF

INSTRUCTION

CYLINDER ASSEMBLY - bucket, parts list Figures 8-48 through 8-52

1шт.
