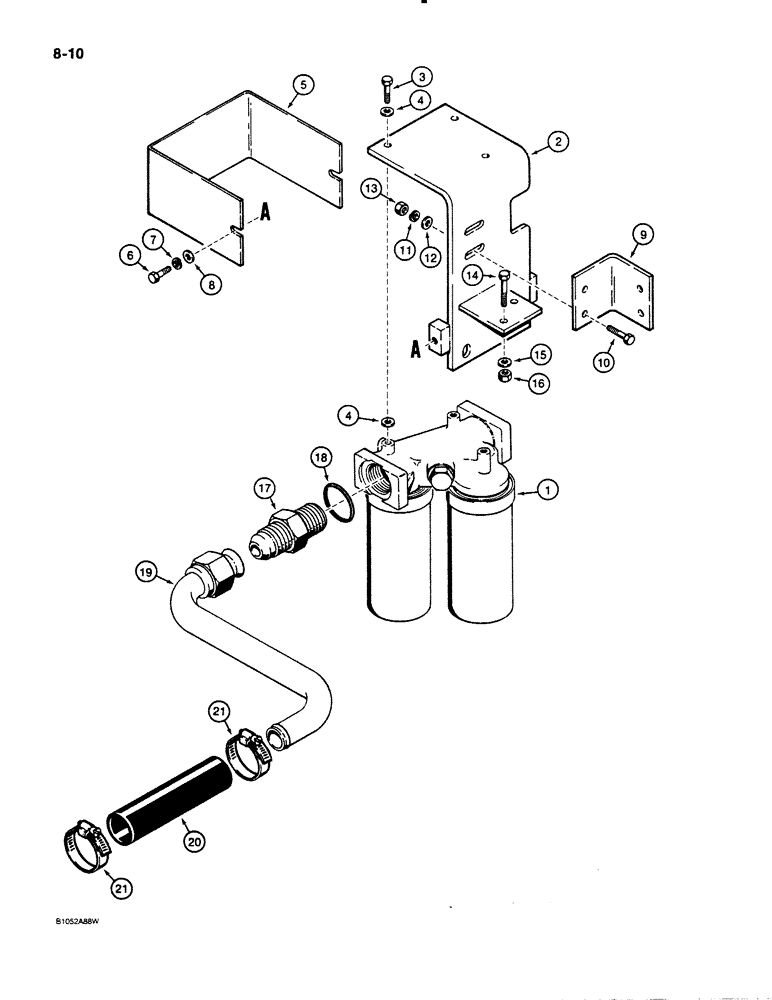

Запчасти Case 621 (8-10) - HYDRAULIC CIRCUIT, OIL FILTER TO HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

L126373

FILTER ASSY

FILTER ASSEMBLY - hydraulic oil, parts list Figure 8-44

1шт.

2

L126230

BRACKET

- mounting, filter

1шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", zinc plated

3шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, 3/8", hardened

6шт.

5

L126231

PROTECTOR

GUARD - filter

1шт.

6

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

8

495-21056

WASHER,1/2"

- flat, , zinc plated 1/2"

2шт.

9

L126213

SUPPORT

BRACKET - mounting, filter to rear frame

1шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", zinc plated

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

15

R24323

WASHER

- flat, 1/2", hardened

3шт.

16

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

3шт.

17

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ADAPTER - straight, filter to return tube

1шт.

18

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk, Adapter

1шт.

19

L126401

PIPE,38.09 mm OD x 373, 262 mm L

TUBE - formed, filter to hydraulic reservoir

1шт.

20

L127301

HOSE,38.1 mm ID x 230.00 mm

1шт.

21

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

4шт.
