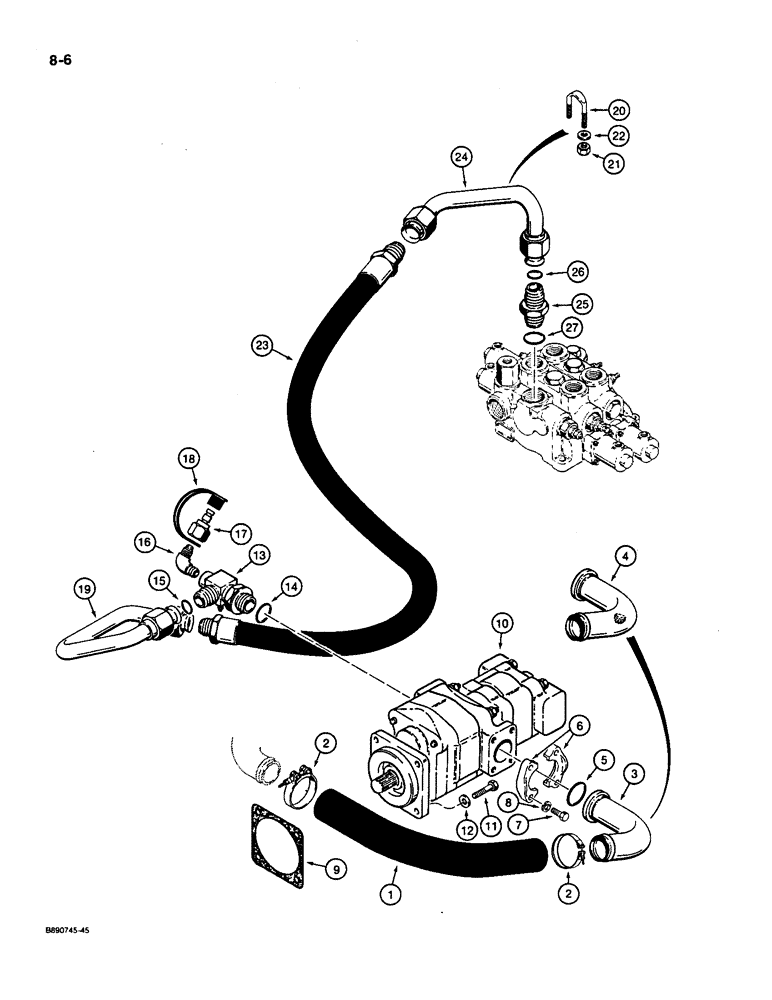

Запчасти Case 621 (8-06) - HYDRAULIC CIRCUIT, RESERVOIR TO PUMP AND LOADER VALVE, P.I.N. JAK0020901 AND AFTER (08) - HYDRAULICS

1

L125344

HOSE,50.8 mm ID x 800.00 mm

Suction, Hydraulic Reservoir to Pump 50.8 mm ID x 800.00 mm

1шт.

2

L126871

CLAMP

- hose

2шт.

3

L125356

PIPE,50.8 mm OD x 183, 180 mm L

TUBE - suction, at pump, use on models without auxiliary steering

1шт.

4

L125583

TUBE

- suction, at pump, use on models with auxiliary steering

1шт.

5

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- pump

1шт.

6

A14141

FLANGE

- split, tube

2шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

9

A12304

GASKET,0.4mm Thk

- mounting, pump

1шт.

10

L127270

PUMP, HYDRAULIC

PUMP ASSEMBLY - equipment and steering, parts list Figure 8-22

1шт.

L127270R

REMAN-HYD PUMP

621 PRIOR TO S/N JAK0021701, HYDRAULIC CIRCUIT, RESERVOIR TO PUMP AND LOADER VALVE, P.I.N. JAK0020901 AND AFTER

1шт.

L127270C

CORE-HYDRAULIC PUMP

Return Number

1шт.

11

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

- hex, 12 x 45 mm

4шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

13

L127385

FITTING

MANIFOLD - pump, at tube to control valve

1шт.

14

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Boss end

1шт.

15

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face seal end -025, 90 Duro, 1.176" ID x .070" Thk

1шт.

16

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, 1-1/16-12 flare x 3/4 inch PT

1шт.

17

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING - quick disconnect

1шт.

18

H434163

DUST CAP

CAP - dust, coupler

1шт.

19

L127299

PIPE,31.75 mm OD

TUBE - hydraulic pressure, at pump to control valve

1шт.

20

L104253

U-BOLT

- tube retaining

1шт.

21

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

22

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

23

L124231

HOSE,25.4mm ID x 1000mm L, SAE 100R12

Supply, Pump to Control Valve 25.4 mm ID x 1000.00 mm, SAE 100R12

1шт.

24

L118737

PIPE,31.75 mm OD

TUBE - supply, at control valve

1шт.

25

L124289

CONNECTOR, ELEC

ADAPTER - straight, 1-5/8 inch O-ring flare x O-ring boss

1шт.

26

D51499

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

- adapter, face seal end

1шт.

27

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Boss end

1шт.
