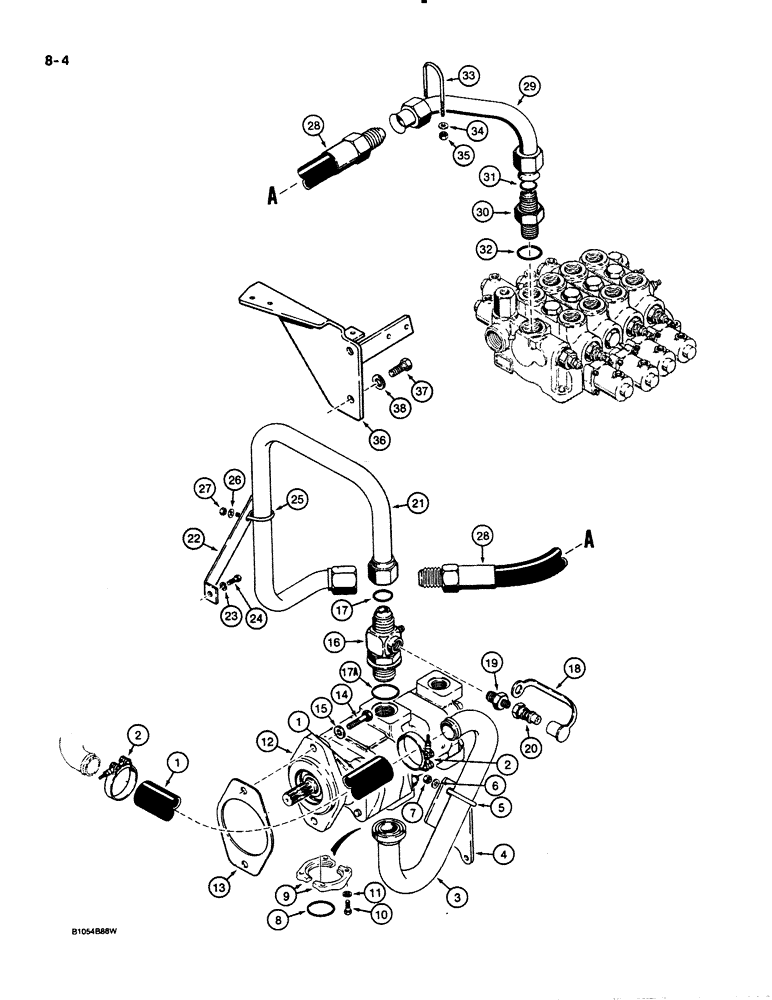

Запчасти Case 621 (8-04) - HYDRAULIC CIRCUIT, RESERVOIR TO PUMP AND LOADER VALVE, PRIOR TO P.I.N. JAK0020901 (08) - HYDRAULICS

1

L124256

HOSE,50.8 mm ID x 900.00 mm, SAE J517C, SAE 100R4

Suction, Cylinder to Reservoir Pump 50.8 mm ID x 900.00 mm, SAE J517C, SAE 100R4

1шт.

2

L126871

CLAMP

- band, hose

2шт.

3

L126326

TUBE,50.8 mm OD

- hose at hydraulic reservoir to pump

1шт.

4

L119160

BRACKET

- mounting, tube, bolt to transmission, see transmission housing on Figure 6-8

1шт.

5

A31210

BOLT

U-BOLT - 3/8" - 16 NC x 2-1/2"

1шт.

6

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened, plated

2шт.

7

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

8

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- tube

1шт.

9

A14141

FLANGE

- split, Serial Range: tube-pump

2шт.

10

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

12

L126246

PUMP, HYDRAULIC

PUMP ASSEMBLY - equipment and steering, parts list Figure 8-20, no longer available, order L127179 pump

1шт.

12

L127179

PUMP, HYDRAULIC

PUMP ASSEMBLY - equipment and steering, parts list Figure 8-20

1шт.

13

D53692

GASKET,0.79mm Thk

- pump

1шт.

14

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

15

NLS

NO LONGER SERVICED

- flat, 5/8", hardened, special

2шт.

16

L126258

FITTING

TEE - special, pump to supply tube

1шт.

17

D51499

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

- tee, face seal end

1шт.

17a

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Boss end

1шт.

18

H434163

DUST CAP

CAP - dust

1шт.

19

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, 3/4" NPT x 1/4" NPT

1шт.

20

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING - quick disconnect

1шт.

21

L126341

TUBE ASSY.,31.75 mm OD

TUBE - supply from pump

1шт.

22

L127086

BRACE

- support, supply tube

1шт.

23

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

24

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

1шт.

25

L104253

U-BOLT

- tube retaining

1шт.

26

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

27

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

28

L124231

HOSE,25.4mm ID x 1000mm L, SAE 100R12

Supply, Pump to Valve 25.4 mm ID x 1000.00 mm, SAE 100R12

1шт.

29

L118737

PIPE,31.75 mm OD

TUBE - supply, at valve

1шт.

30

L124289

CONNECTOR, ELEC

ADAPTER - special, supply, Serial Range: tube-valve

1шт.

31

D51499

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

- adapter, face seal end

1шт.

32

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Boss end

1шт.

33

L104253

U-BOLT

- tube retaining

2шт.

34

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

35

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

36

L126852

BRACKET

- tube

1шт.

37

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

38

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4", hardened

2шт.
