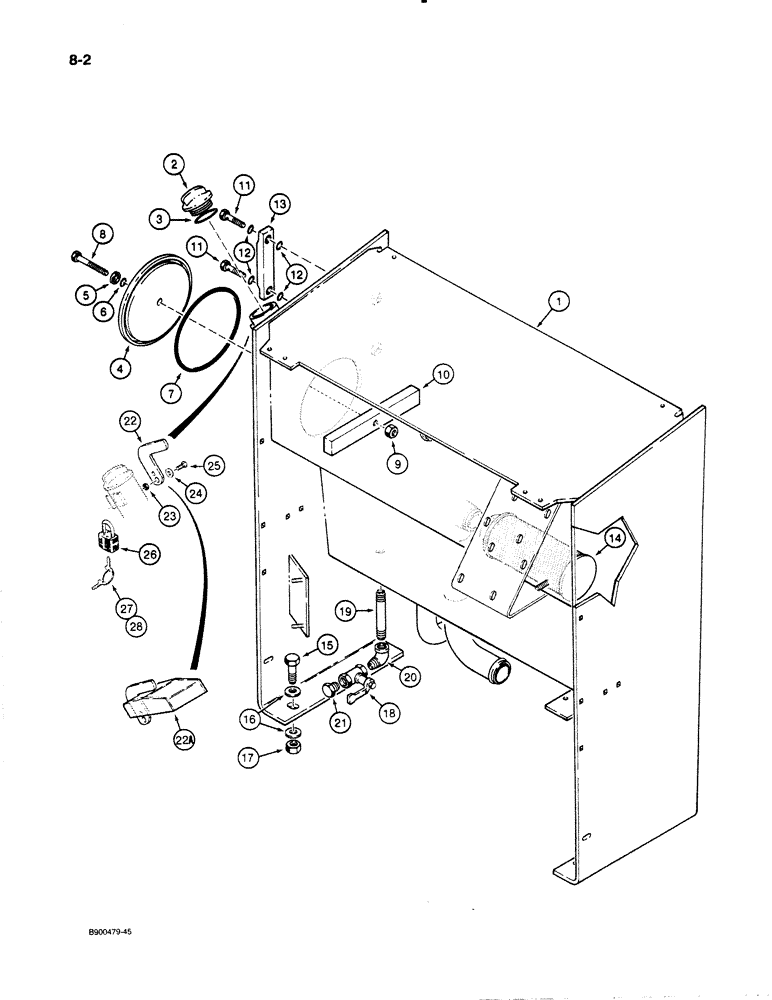

Запчасти Case 621 (8-02) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

L127451

RESERVOIR, HYDRAULIC

RESERVOIR ASSEMBLY - hydraulic

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic

1шт.

2

L100349

PLUG

CAP - filler, hydraulic reservoir

1шт.

3

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- filler cap

1шт.

4

L77124

COVER ASSY

COVER - access, hydraulic filter

1шт.

5

L78045

WASHER

- flat, special

1шт.

6

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- access cover bolt

1шт.

7

L111687

O-RING,6.975" ID x 0.275" Width

- access cover

1шт.

8

113-2462

BOLT,Hex, 1/2" - 13 x 3", Gr 5

Special thread length Hex, 1/2"-13 x 3", G5

1шт.

9

131-510

LOCK NUT,1/2"-13

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

10

L50741

BAR

- cover retainer

1шт.

L116247

GAUGE

ASSEMBLY - sight, hydraulic oil

1шт.

11

N13213

BOLT

BOLT - special, sight gauge

2шт.

12

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- seal, sight gauge

4шт.

13

NSS

NOT SOLD SEPARAT

GAUGE - sight, order L116247 sight gauge assembly

1шт.

14

L104990

FILTER SCREEN

SCREEN - suction

1шт.

15

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex head, 5/8" - 11 NC x 2", zinc plated

4шт.

16

D43266

WASHER

- flat, 5/8", hardened, special

8шт.

17

425-1010

NUT,5/8"-11, G5

4шт.

18

L124327

DRAIN VALVE

VALVE - drain, hydraulic reservoir

1шт.

19

221-1220

PIPE,Nipple, 3/4" NPT x 4 1/2"

NIPPLE - 3/4" NPT x 4-1/2"

1шт.

20

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

- street, 90 degree, 3/4" NPT

1шт.

21

221-665

PLUG,Hex Hd, 3/4"-14

- hex head, 3/4" NPT

1шт.

22

L126780

LATCH ASSY.

BAR - lockup, hydraulic filler tube, if used

1шт.

22a

L127100

COVER

- lockup, hydraulic filler tube, if used

1шт.

23

L126822

SPACER

- lockup bar

1шт.

24

495-11028

WASHER,1/4", SAE

1шт.

25

L126833

SCREW,1/4" - 20 x 3/4"

- special, one way, 1/4" - 20 NC x 3/4"

1шт.

26

D93753

PADLOCK

- includes keys, if used

1шт.

27

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

28

R29555

KEY

- for Master padlock only, if used

2шт.
