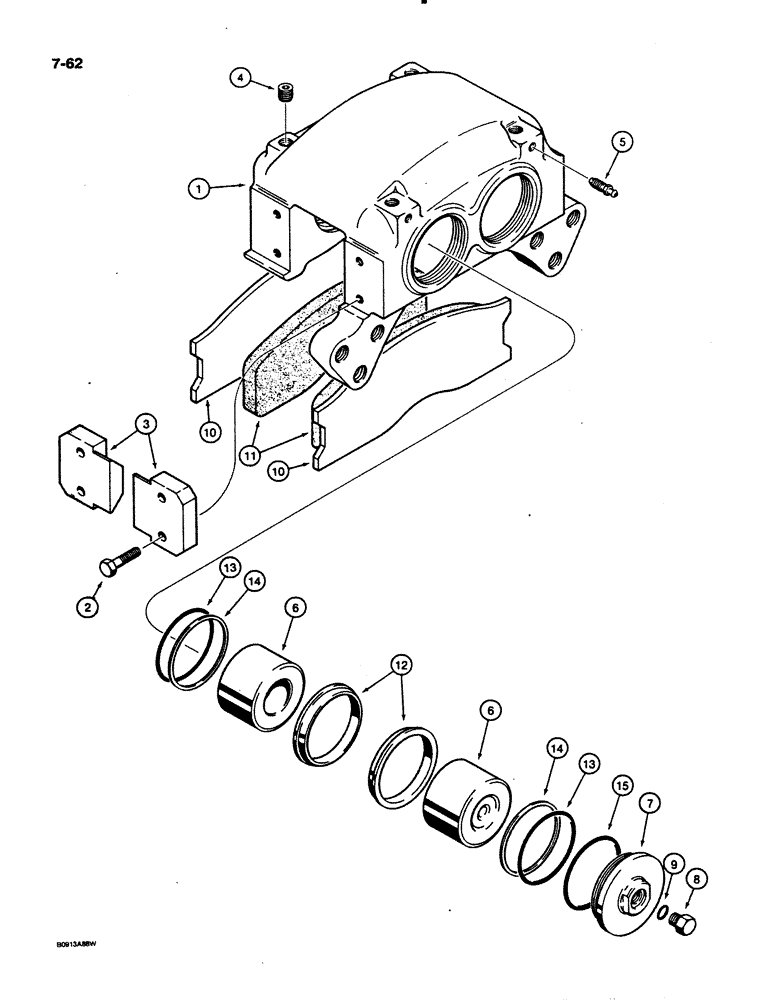

Запчасти Case 621 (7-62) - BRAKE CALIPER, P.I.N. JAK0020901 AND AFTER (07) - BRAKES

L127645

BRAKE CALIPER

CALIPER - brake

4шт.

L127645R

REMAN-BRAKE ASSY.

621, P.I.N JAK0020901 & Aft.

4шт.

L127645C

CORE-BRAKE ASSY.

Return Number

4шт.

1

NSS

NOT SOLD SEPARAT

BODY - caliper

1шт.

2

113-2618

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8, Full Thd

- hex, 3/8 NC x 1/1/2 inch, Grade 2

8шт.

3

N7962

PLATE

- lining retaining

4шт.

4

221-841

PLUG

- 1/4 inch PT

4шт.

5

N7966

BLEEDER

VALVE - bleeder

2шт.

6

N7963

PISTON

- brake

4шт.

7

N7965

COVER

HEAD - piston

2шт.

8

129998

PLUG,1/2" - 20 ORB

Piston Hex Hd, 1/2"-20 ORB

2шт.

S300718

SET

KIT - brake shoe and lining

1шт.

9

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 inch OD tube

1шт.

10

NSS

NOT SOLD SEPARAT

SHOE - brake

2шт.

11

NSS

NOT SOLD SEPARAT

LINING - brake

2шт.

N7964

SEAL KIT

KIT - seal, brake caliper

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER - piston

4шт.

13

NSS

NOT SOLD SEPARAT

O-RING - piston

4шт.

14

NSS

NOT SOLD SEPARAT

BACKUP RING - piston O-ring

4шт.

15

S301260

O-RING

- head (Replaces NSS)

2шт.
