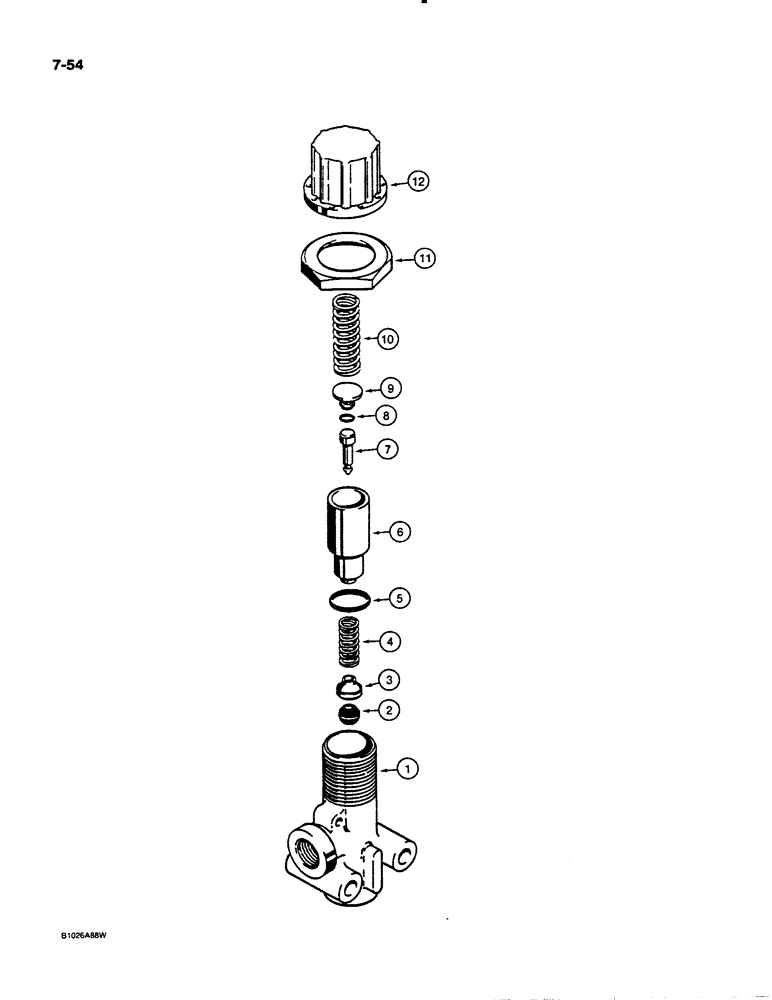

Запчасти Case 621 (7-54) - PRESSURE PROTECTION VALVE, L13530 (07) - BRAKES

L13530

VALVE

ASSEMBLY - pressure protection

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

L31802

VALVE

- clutch

1шт.

3

NSS

NOT SOLD SEPARAT

GUIDE - valve

1шт.

4

L31800

SPRING

- valve

1шт.

5

L31798

O-RING,1/8" ID x 1/4" OD x 1/16"

- piston

1шт.

6

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

7

NSS

NOT SOLD SEPARAT

STEM - valve

1шт.

8

L31797

O-RING,1/2" ID x 11/16" OD x 3/32"

- plug

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG - piston

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

11

131-414

LOCK NUT,PAL, 7/8"-14

NUT - special locking, 7/8" - 14 NF

1шт.

12

L33316

CAP

- adjusting

1шт.
